Product type: Customized optical parts. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

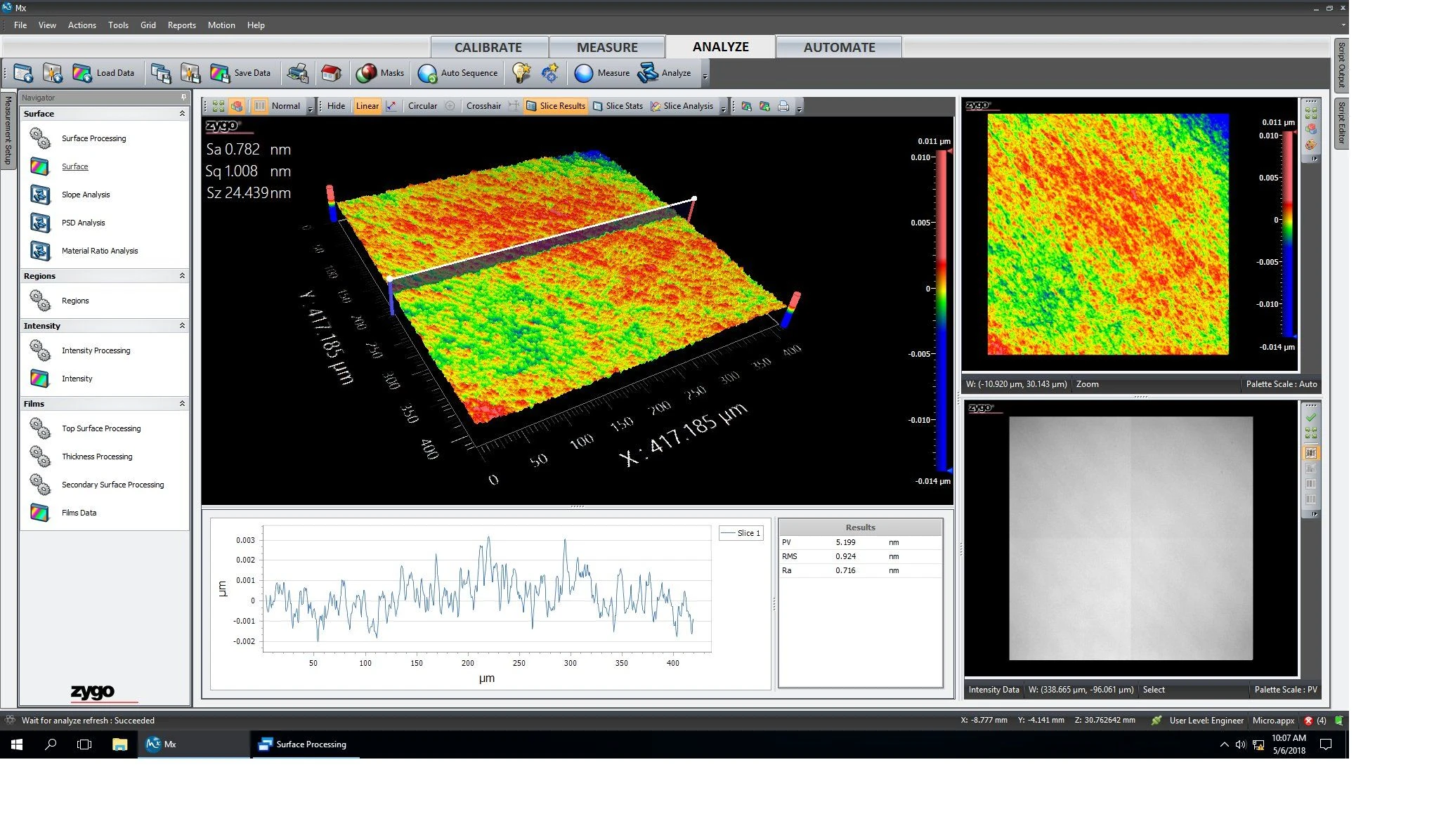

Superpolished optical lens/window/prism with super-great roughness: an optical prism made from Customized. Listed geometry: thickness 0.1-600. Listed for Lighting, Medical, Optical, Photography and Astronomy applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Customized |
|---|---|
| Type | Customized optical parts |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Thickness Range | 0.1-600 |
| Color | Transparent |
| Angle of incidence | 0-60 |
| Materials we already use | Optical glass, sapphire, CaF2, Fused silica, color glass, etc. |
| Applications | . |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
What to specify when you request a quote
- Material — listed as “Customized”; name the glass or crystal.
- Geometry — listed as “0-60”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
