Product type: Convex Lens. Application: Lighting, Optical. Model: FW-LN.
Overview

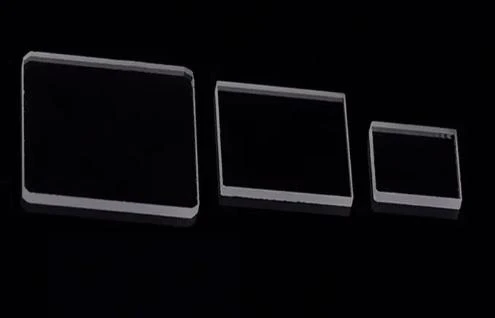

The Supply Large Size Transmittance >92% Fused Silica/Quartz Plate is supplied as a precision glass plate / sheet made from Optical Glass. Listed geometry: diameter 1mm-500mm, thickness 0.05mm to 100mm, cylindrical shaped lens shape. Optical / electrical data: transmittance >95%. Coating: UV; surface quality 40/20;60/40; flatness 1/4 Lambda. It is used in Lighting and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Cylindrical Shaped Lens |
| Diameter | 1mm-500mm |
| Thickness | 0.05mm to 100mm |
| Transmittance | >95% |
| Coating | UV |
| Surface Quality | 40/20;60/40 |
| Clear Aperture | >90% of Diameter |
| Usage | Lighting, Optical |
| Model NO. | FW-LN |
| Lenses Color | Clear |
| Coat | Anti-Reflective (Ar) Coatings |
| Clear Aperture: >90% of Diameter | >90% of Diameter |
| Surface Flatness | 1/4 Lambda |
| Substrate Material | optical glass,quartz,pyrex,sapphire,znse,caf2,ge,si,etc |
| Diameters Available | 1mm to 400mm |
| Diameter Tolerance | +0.00/-0.005mm or customer design |
| Quartz tube | outer diameter Φ2-450mm,thickness 0.5-20mm |
| Supplier | Jiaozuo Commercial Finewin Co., Ltd. |
Technical data
| Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm |
| .Quartz rod (1.5-80mm) |
| Quartz plate (various shapes and specification,scrubs,Transparency,drilling) |
| Quartz instruments (flask,test tube,beaker, quartz boat) |
| Processing all type of special shaped and customized instruments. |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “1mm-500mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Cylindrical Shaped Lens”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “40/20;60/40”; state polish and flatness where they matter.
