Product type: Narrow Bandpass Filter. Application: Lighting, Medical, Optical, Photography. Model: BPF003.
Overview

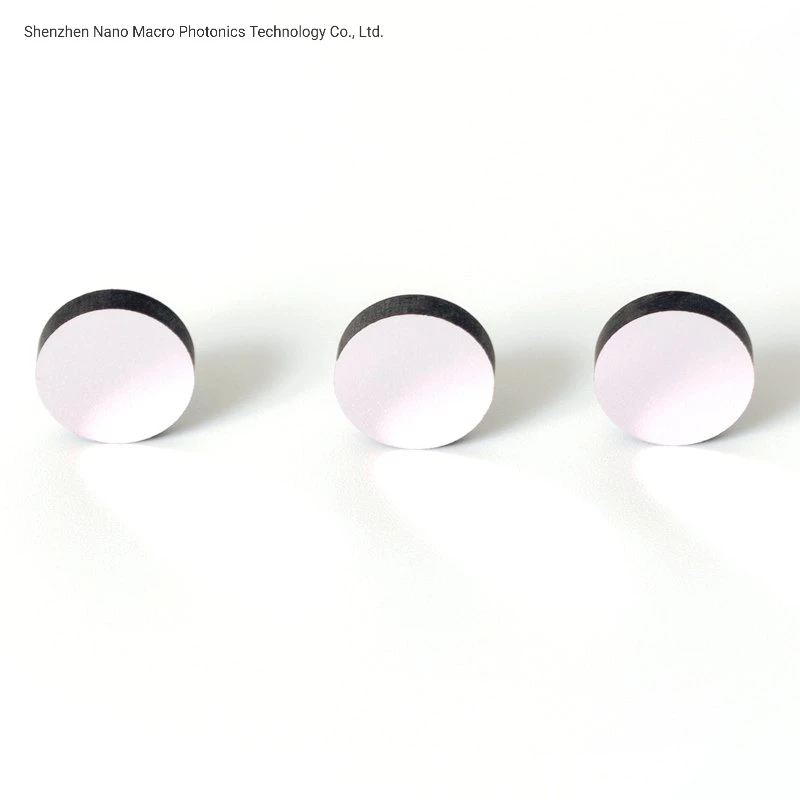

Support Samples Laser Radar Infrared 1550nm Narrow Bandpass Optical Filter: a bandpass filter made from Glass. Listed geometry: thickness 1-5mm or Custom. Optical / electrical data: wavelength 1550nm, bandwidth 30nm or Custom. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Narrow Bandpass Filter |
| Shape | Customized |
| Cwl | 1550nm |
| Fwhm | 30nm or Custom |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1-5mm or Custom |
| Model NO. | BPF003 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Optical Density | Od2-Od6 |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Material | Optical glass |
|---|---|
| Size | 80x80mm or customized (square or round) |
| Thickness | Customized |
| Clear Aperture | > 90% |
| Surface Quality | 60-40 |
| CWL | 1550±5nm |
| FWHM | 30nm or custom |
| Blocking range | 350-1100nm |
| Coating | Interference coating |
What to specify when you request a quote
- Spectral target — listed as “1550nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “Od2-Od6”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1-5mm or Custom”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
