Product type: Rectangular Prism. Application: Beam Split. Model: PH05.
Overview

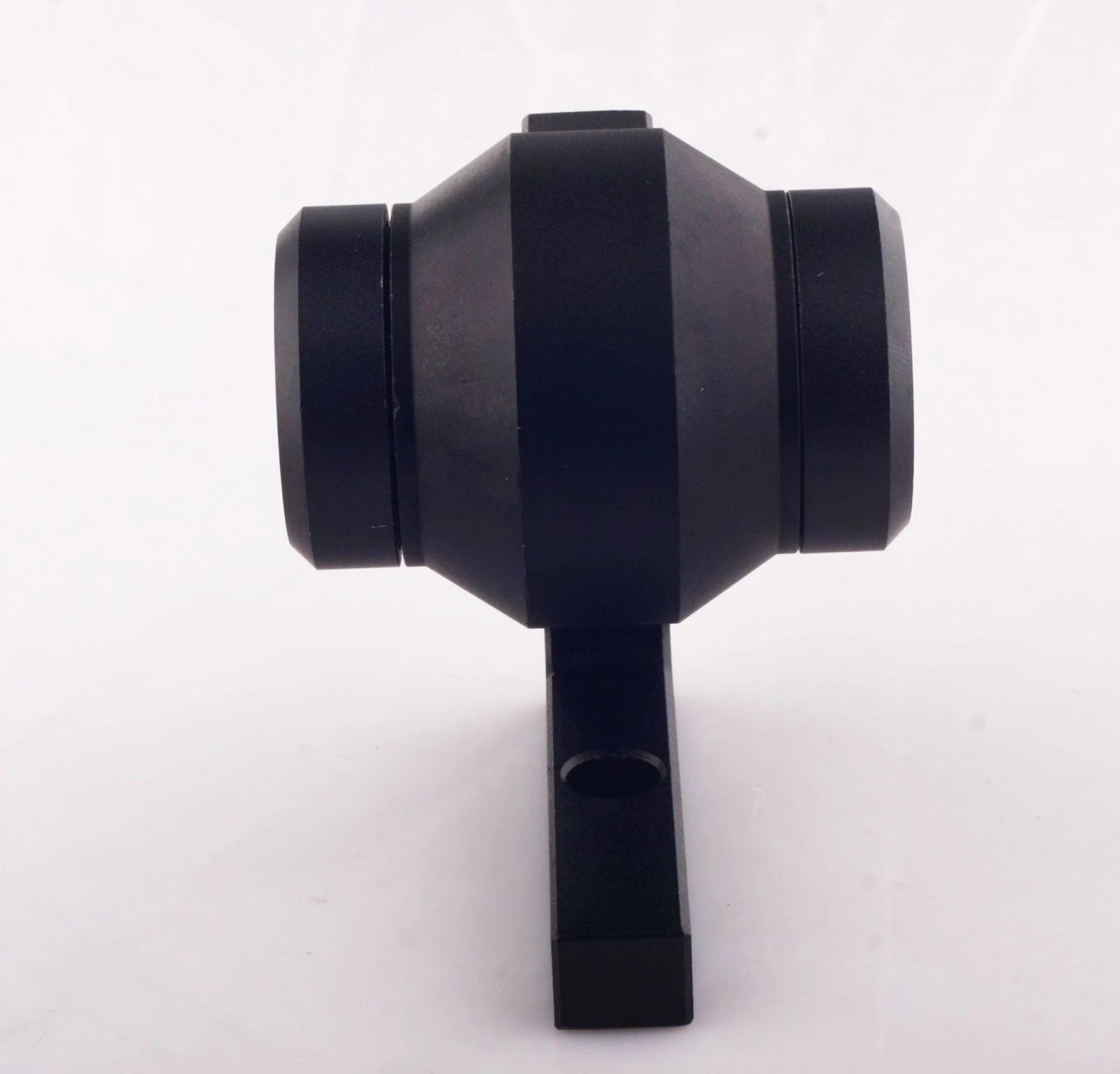

Surveying Mini L-Bar Right Angle Prism for Total Stations Optical Glass Material is an optical prism made from Glass. Listed geometry: cube corner prism shape. It is used in Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Rectangular Prism |
| Shape | Cube Corner Prism |
| Application | Medical Instrument |
| Usage | Beam Split |
| Model NO. | PH05 |
| Supplier | Shenzhen Bokai Photoeletric Technology Co., Ltd. |
Technical data
| Country of Origin | China |
|---|---|
| Brand | GEOBOK |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Surveying Mini L-Bar Right Angle Prism for Total Stations Optical Glass Material made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this optical prism used? expand_more
Listed applications: Medical Instrument.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
