Product type: Special Glass/High-Temperature-Resistant Glass. Application: Induction / Ceramic Cooktop Panels, Oven W. Model: HG-CG01. Function: Optical Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview
Tempered Ceramic Glass Clear Polished Surface 6mm Rectangular Boiler Sight Glass Quartz Glass Industrial High Temperature Matching Components is a sight / viewing glass. Listed geometry: flat & curved shape. Listed for Home Appliances, Electronics and Industry applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Special Glass/High-Temperature-Resistant Glass |
|---|---|
| Shape | Flat & Curved |
| Application | Home Appliances/Electronics/Industry |
| Usage | Induction / Ceramic Cooktop Panels, Oven W |
| Model NO. | HG-CG01 |
| Structure | Crystal Structure |
| Moh's Hardness | 6.5 |
| Function | Optical Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Translucent |
| Processing Method | Phase & Crystallization |
| Preparation Process | Fusion Method |
| Color | Black/Clear/White |
| Standard delivery | 2-3 weeks after order confirmation. |
| Supplier | Qingdao Hitech Glass Co.,Ltd |
Technical data
| No. | Property | Unit | Specification |
| 1 | Density | g/cm3 | 2.5 |
| 2 | Bending Strength | MPa | >=100 |
| 3 | Vickers Hardness | Hv | 700 |
| 4 | Young's Modulus | GPa | 90 |
| 5 | Thermal Expansion Coefficient (20-700C) | x10-6 /K | 0 ~ 0.1 |
| 6 | Thermal Shock Resistance | C | >=700 |
| 7 | Short-term Heat Resistance | C | 800 |
| 8 | Working Temperature (continuous) | C | 700 – 800 |
| 9 | Thickness Range | mm | 4 – 6 |
| 10 | Max Panel Size | mm | 1800 x 1000 |
| 11 | Transparency | – | High (visible + IR) |
| 12 | Acid Resistance | – | Good (Class 3, DIN 12116) |
| 13 | Alkali Resistance | – | Good (Class 2, ISO 695) |
| 14 | Chemical Standard | – | ISO 719 / DIN 12116 / ISO 695 |

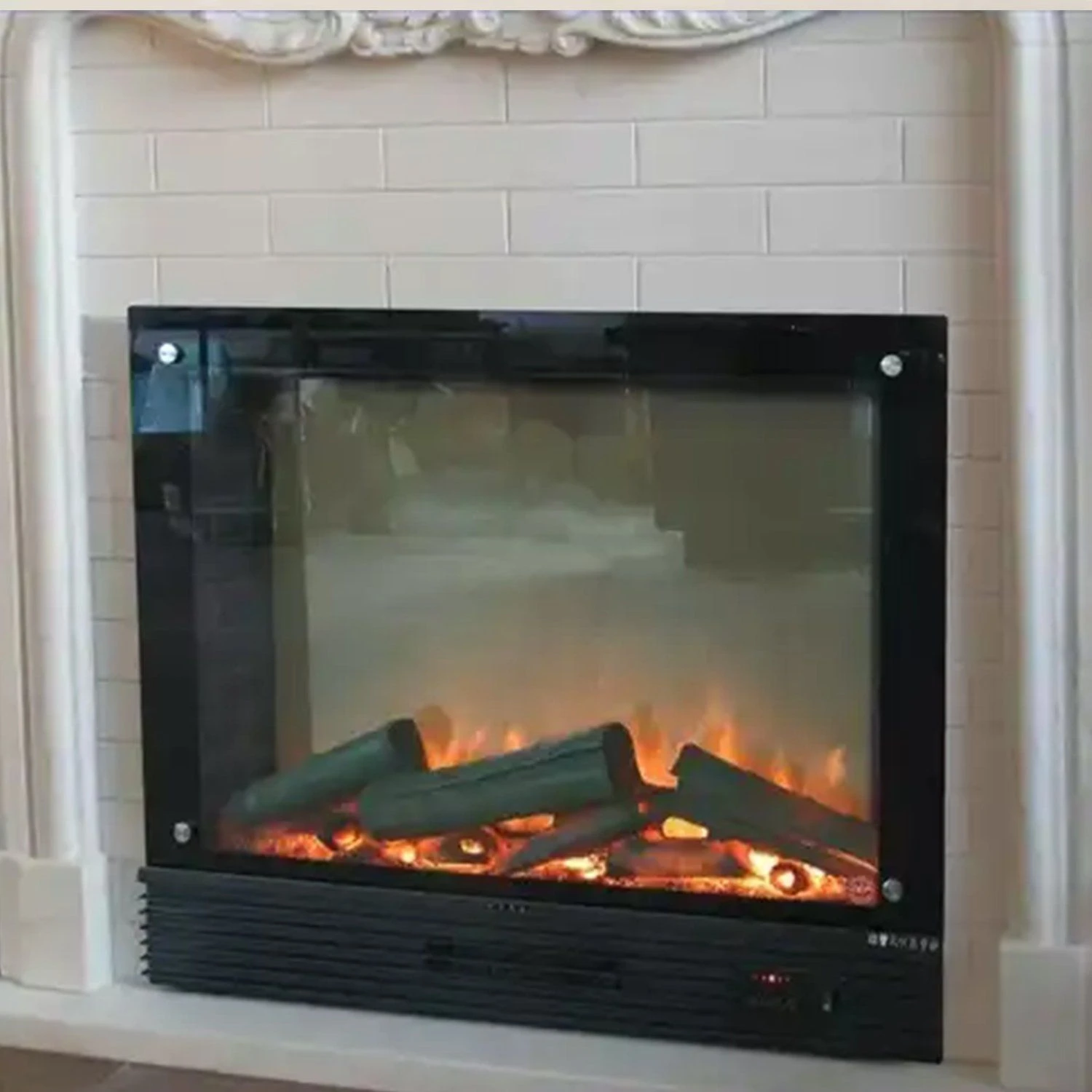

| 15 | Applications | – | Fireplace, stove, oven, industrial furnace |
What to specify when you request a quote
- Glass type and thickness — name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat & Curved”; send a drawing with outline, holes and edge finish.
