Application: Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products. Model: Custom.
Overview

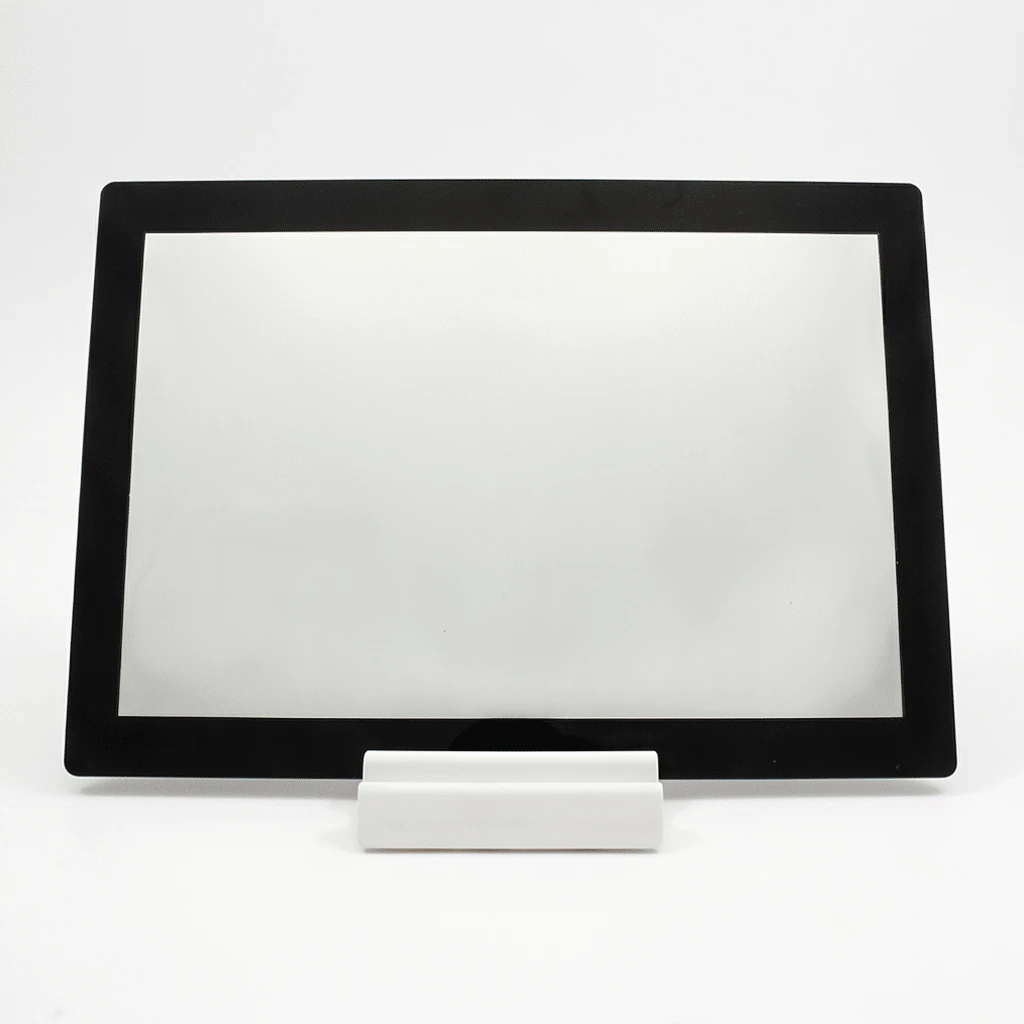

The Tempered Glass Front Cover Glass for LCD Display Cover Glass with Ar/AG Coating is supplied as a display / touchscreen cover glass. Listed geometry: thickness Custom, flat shape. Flatness High Class. Typical applications: Building, Furniture, Home Appliance, Electronics & Instruments and Auto Manufacturing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Flatness | High Class |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products |
| Model NO. | Custom |
| Appearance | Flat Tempered |
| Standard | GB15763.2-2005 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.145-4.0mm |
| Thickness of Curve Tempered Glass | None |
| Fragment State | Good |
| Technics | Chemical Tempered |
| Glass Material1 | Gorilla Glass,Panda Glass,AGC Soda Lime |
| Glass Material2 | Soda Lime,Schott Glass, |
| Glass Material3 | Gray Glass Material |
| Glass Thickness | Custom |
| Surface Treatment1 | AG Anti-Glare,Ar Anti-Reflective |
| Surface Treatment2 | Af Anti-Fingerprint,Customizable |
| Strengthening Method | Chemical Strengthening / Physical Tempering |
| Processing Method1 | CNC Edge Grinding,Printing,Anti-Glare Processing |
| Processing Method2 | Anti-Reflective Processing,Anti-Fingerprint Proces |
| Processing Method3 | Anti-Fog Processing, Mirror Coating |
| Processing Method4 | Double-Sided Tape Bonding |
| Processing Method5 | Protective Film Application Assembly |
| Printing Method | Customizable |
| Product Shape | Rectangular / Round / Irregular / Customizable |
| Hole Processing | Round / Square / Slot Hole/ Customizable |
| Supplier | Foshan Urich Supply Chain Management co.Ltd |
What to specify when you request a quote
- Glass type and thickness — listed as “0.145-4.0mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “0.145-4.0mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
