Application: Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products.
Overview

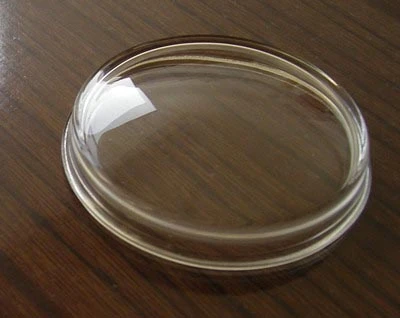

The Tempered Round Water Meter Glass Cover, Polished Edge Instrument Glass Lens is supplied as a display / touchscreen cover glass made from Tempered float glass; Borosilicate 3.3 optional. Listed geometry: thickness 3mm /4mm /5mm /6mm /8mm optional, curve shape. Flatness High Class; temperature 0℃~90℃. It is used in Building, Furniture, Home Appliance, Electronics & Instruments and Auto Manufacturing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Tempered float glass; Borosilicate 3.3 optional |
|---|---|
| Shape | Curve |
| Thickness | 3mm /4mm /5mm /6mm /8mm optional |
| Flatness | High Class |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products |
| Appearance | Bent Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 10MM |
| Thickness of Curve Tempered Glass | 10MM |
| Fragment State | I |
| Technics | Physically Tempered |
| Item | Tempered Round Water Meter Glass Cover |
| Surface | Clear Transparent |
| Technique | Tempered Glass |
| Mold | Necessary |
| Shipment | by Sea, by Air |
| Capacity | 100000PCS Per Day |
| Process | Tempered, Annealed |
| Delvery Time | 25 Days |
| Edge Process | Precision Polished Edge |
| Compatibility | Fit DN15, DN20, DN25, DN32, DN40 Water Meters |
| Working Pressure | up to 1.6MPa |
| Working Temperature | 0℃~90℃ |
| Feature | Waterproof & Dustproof with Matched Gasket |
| Applicable Meter | DN15DN40 mechanical & smart water meter |
| Remarks | Only glass water meter lid. Gasket, meter housing and other accessories are NOT included. Glass is fragile, handle carefully. |
| Note | Glass lid only, gaskets and meter body excluded. Fragile glass, avoid heavy impact. |
| Supplier | Jinan Honhai Glass Company Limited |
What to specify when you request a quote
- Glass type and thickness — listed as “Tempered float glass; Borosilicate 3.3 optional”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “10MM”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Curve”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
