Model: Top con prism.
Overview

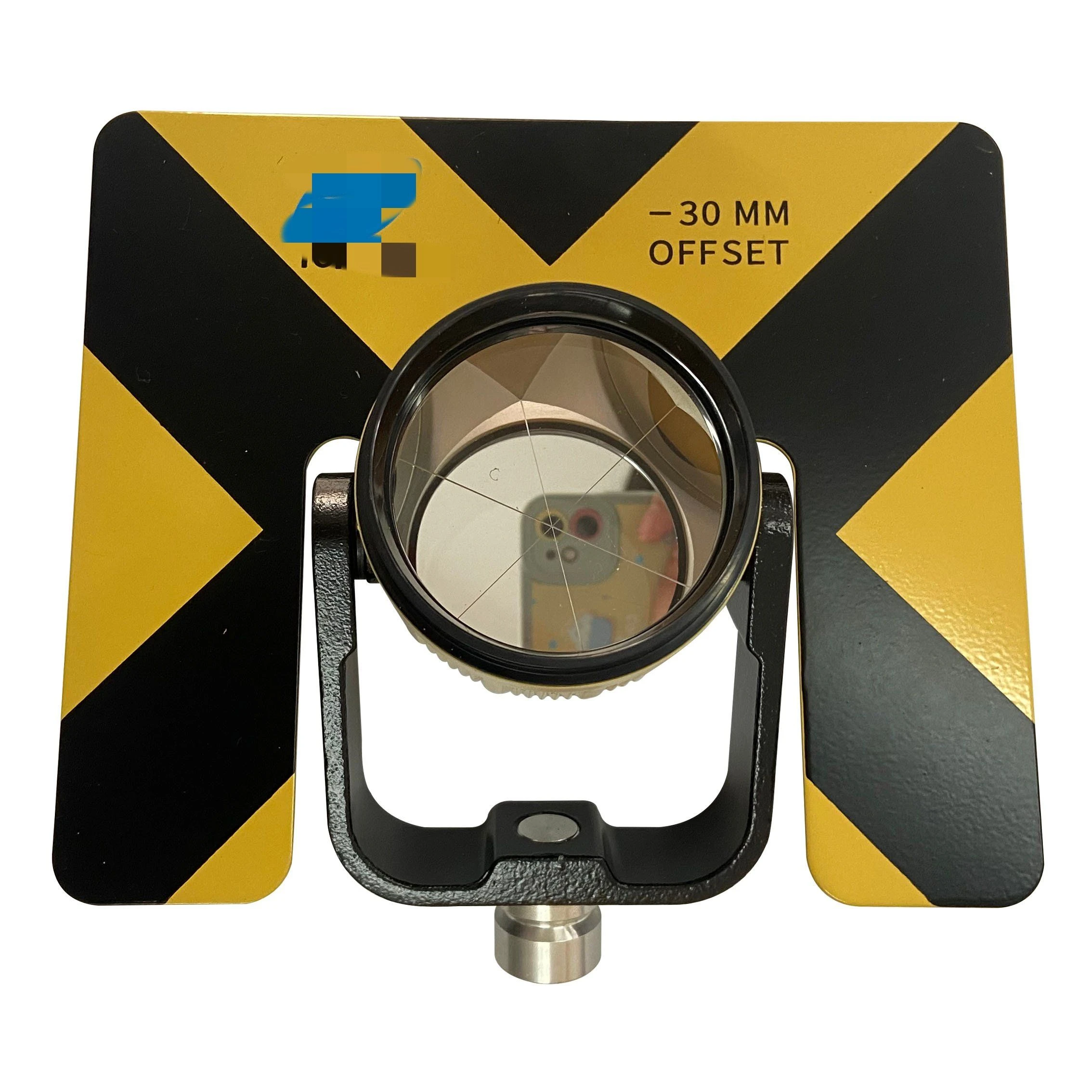

The Total Station Surveying Instrument Large Prism Lens Measurement Universal Optical Prism Measurement Survey Equipment is supplied as an optical prism made from Aluminum. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Aluminum |
|---|---|
| Model NO. | Top con prism |
| Vertical Lines | Without |
| Color | Yellow |
| Apply to | Surveying Instrument |
| Accuracy | Without |
| Horizontal Line | Without |
| Product model | Prism |
| Materials | Aluminum |
| Pack size | 26*12*16(cm) |
| Weight | 1.5KG |
| Shelf life | 15 months |
| Place of production | Guangdong, China |
| Supplier | Guangzhou Ruipai Information Technology Co., Ltd |
Technical data
| Product Parameter |
| Product model: | Prism |
|---|---|
| Apply to: | Surveying instrument |
| Materials: | Aluminum |
| Color: | Yellow |
| Pack size: | 26*12*16(cm) |
| Weight: | 1.5KG |
| Guarantee period: | Shelf life: 15 months |
| Place of production: | Guangdong, China |
| OEM: | Support |
What to specify when you request a quote
- Material — listed as “Aluminum”; name the glass or crystal.
- Geometry — listed as “26*12*16(cm)”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Total Station Surveying Instrument Large Prism Lens Measurement Universal Optical Prism Measurement Survey Equipment made of? expand_more
It is listed as Aluminum. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
