Application: Home Appliance, Electronics & Instruments. Model: SD-889.
Overview

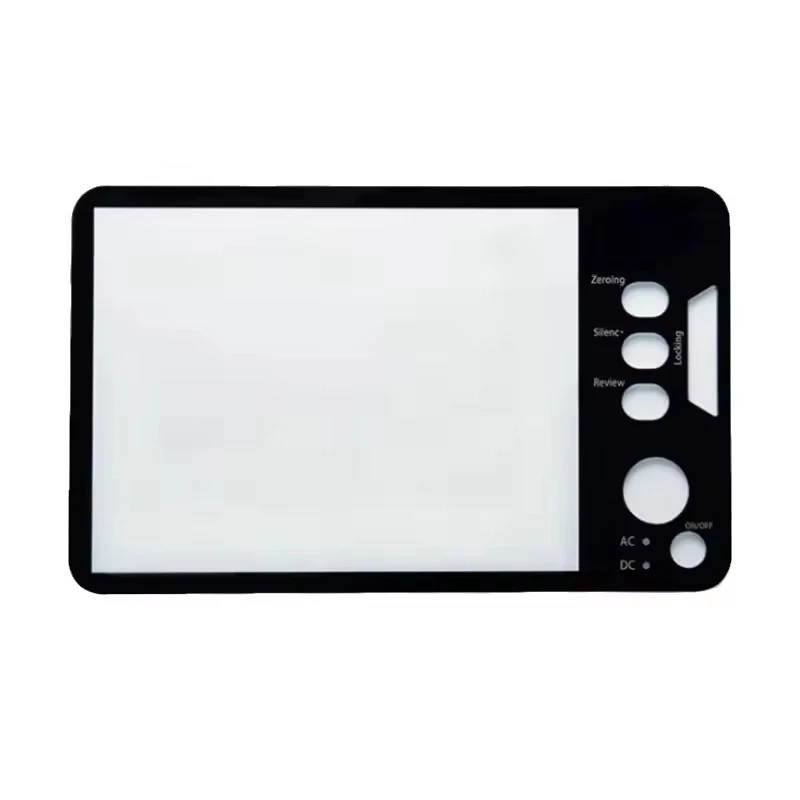

The Toughened Printing Ar Af AG Cover Glass for Touch Screen Control Panel is supplied as a display / touchscreen cover glass made from Crystal White/Soda Lime/Low Iron Glas. Listed geometry: size Customized, flat shape. Flatness Conforming Article. It is used in Lighting Switch, Wall Switch Glass and Home Appliance. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Size | Customized |
| Flatness | Conforming Article |
| Application | Lighting Switch, Wall Switch Glass, Home Appliance |
| Usage | Home Appliance, Electronics & Instruments |
| Model NO. | SD-889 |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | From 0.5mm to 12mm |
| Thickness of Curve Tempered Glass | From 0.5mm to 12mm |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Color | Customized |
| Raw Material | Crystal White/Soda Lime/Low Iron Glas |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edge | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge Are |
| Silk Screen Printing | Normal Silkscreen/High Temperature Silkscreen |
| Surface Treatment | Af Coating |
| Max.size | 3660*2440mm |
| Max. Size | 3500*1600mm |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | Saida Custom Touch Temperature Control Glass Panel for Central Air Conditioner |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass |
| Size | Size can be customized |
| Thickness | 0.33-12mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
| Automatic Cutting Machine | Max.size:3660*2440mm |
|---|---|
| CNC | Max.size: 2300*1500mm |
| Edge Grinding & Chamfering | Max.size: 2400*1400mm |
| Automatic Production Line | Max.size :2200*1200mm |
| Thermal Tempered Furnace | Max. Size:3500*1600mm |
| Chemical Tempered Oven | Max. Size: 2000*1200mm |
| Coating Line | Max. Size:2400*1400mm |
| Dry Oven Line | Max. Size : 3500*1600mm |
| Packaging Line | Max. Size: 3500*1600mm |
| Automatic Cleaning Machine | Max. Size: 3500*1600mm |
What to specify when you request a quote
- Glass type and thickness — listed as “From 0.5mm to 12mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “From 0.5mm to 12mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Home Appliance, Electronics & Instruments”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
