Product type: Thin Film Filter. Application: Medical.
Overview

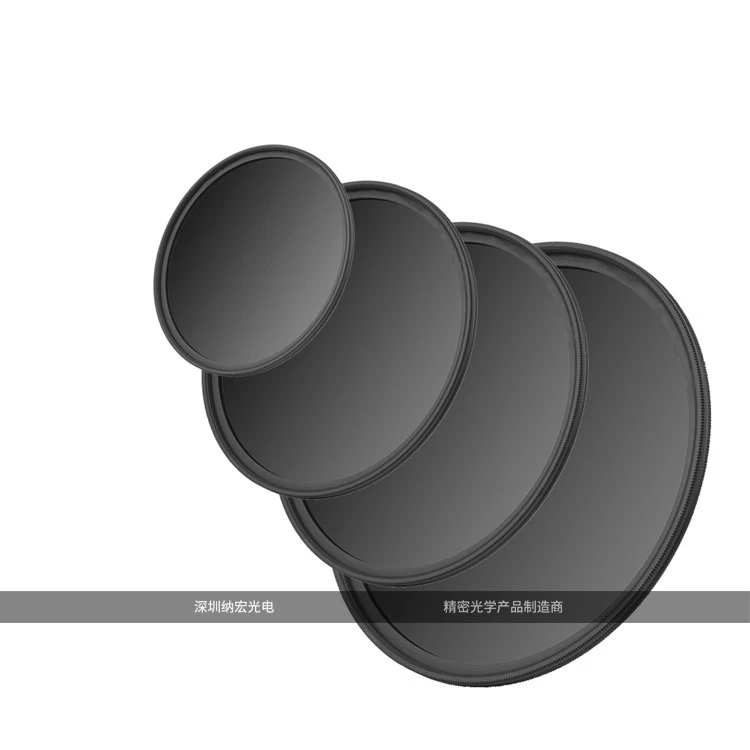

Transmittance 55-60% ND Glass Neutral Density Dimming Optical Filter is a neutral density filter made from Glass. Listed geometry: size 80*80mm or Customized, thickness 0.5mm-1mm. Optical / electrical data: transmittance Customized. Surface quality 60/40. Listed for Medical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Size | 80*80mm or Customized |
| Surface Quality | 60/40 |
| Usage | Medical |
| Thickness Range | 0.5mm-1mm |
| Color | Black |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Transmition | Customized |
| Working Band | 400-1100nm |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Place of Origin | China |
|---|---|
| Origin | Guangdong |
| Brand Name | NMOT |
| Use | Camera use |
| Product name | ND Filter |
| Transmission | 400-1100nm |
| Transmittance | customized |
| Surface Quality | 60/40 |
| Size | 2-80mm |
| Thickness | 1.1mm+/-0.15mm |
| Material | optical grade glass |
| Shape | Square/round or custom |
What to specify when you request a quote
- Spectral target — listed as “400-1100nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “80*80mm or Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60/40”; quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see How to Select Neutral Density Filter Glass for Optical Instruments. For an application example, read Precision Neutral Density Filter Glass for Appliance Optical Sensors. A related standard product is Neutral Density (ND) Filter.
FAQ
What is the Transmittance 55-60% ND Glass Neutral Density Dimming Optical Filter made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives size 80*80mm or Customized, thickness 0.5mm-1mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What optical or electrical performance does it have? expand_more
Listed values: transmittance Customized. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this neutral density filter used? expand_more
Listed applications: Medical.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
