Product type: Aspheric Lens. Application: Optical.
Overview

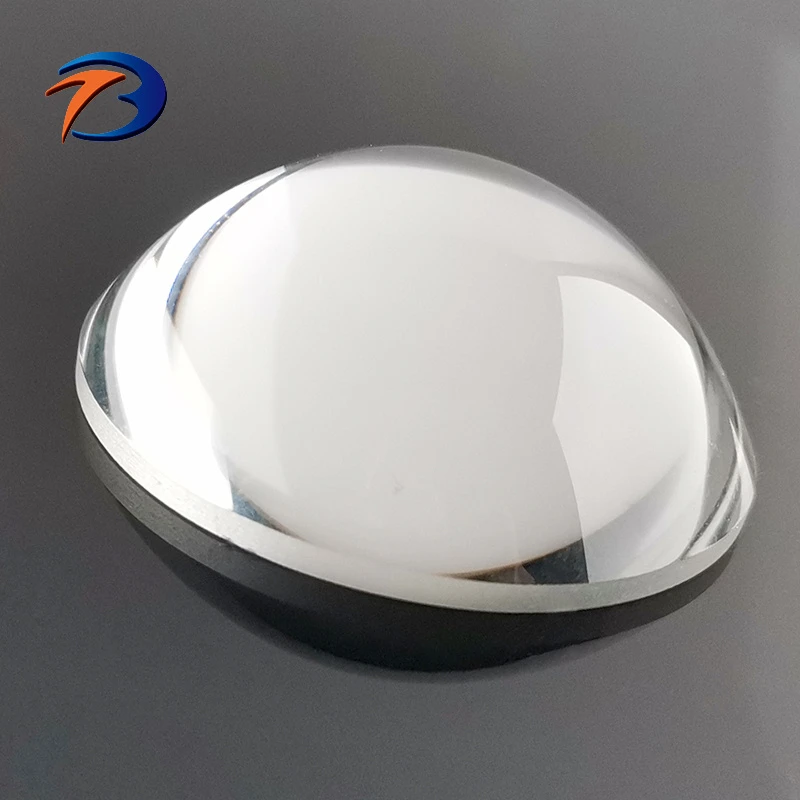

The Transparent Optical N-Bk7 Glass Ar Coated Aspherical Lens is supplied as an optical lens made from Optical Glass. Listed geometry: aspheric lens shape. Optical / electrical data: transmittance >95%. Listed for Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Aspheric Lens |
| Shape | Aspheric Lens |
| Transmittance | >95% |
| Usage | Optical |
| Lenses Color | Clear |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Product Name | Aspherical lens |
|---|---|
| Diameter &Tolerance | 3-300±0.02mm |
| Clear aperture | >90% |
| Thickenss &Tolerance | 0.5-50±0.0mm |
| Surface Flatness | 1/10 Lambda |
| Surface Quality | 20-10 |
| Material | N-BK7,Quartz, Sapphire, CaF2, Ge,Si,ZnSe |
| Beveling | 0.25±0.1mm |
| Coating | AR coatimg/Reflective coating/Dichroic film |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see AR-Coated Glass Materials for High-Transmission Optical Parts. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read AR Coated Glass for Appliance Touch Screens: Specs and Selection. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is AR-Coated High-Transparency Optical Glass.
