Product type: Quartz Plate. Application: Construction, Metallurgy, Casting, Glass. Model: HB-QP.
Overview

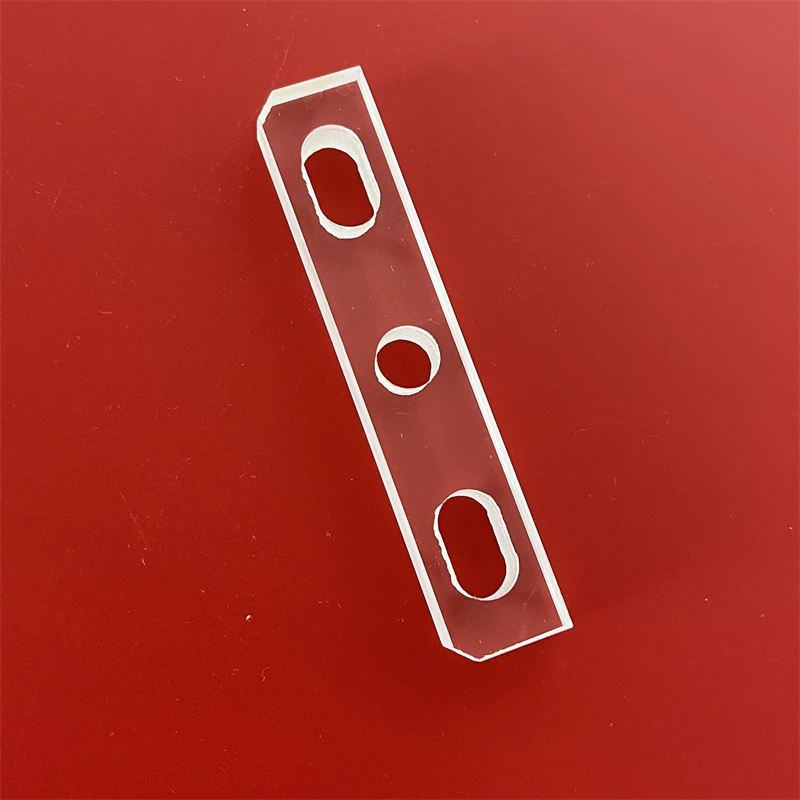

Transparent Quartz Glass Sheet for High Temperature Equipment is a precision glass plate / sheet. Temperature 1100℃. Typical applications: Construction, Metallurgy, Casting and Glass. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Application | Construction, Metallurgy, Casting, Glass |
| Model NO. | HB-QP |
| Sio Purity | ≥99.99% |
| Max Working Temperature | 1100℃ |
| Feature | High Temperature Resistant, Good Light Transmittan |
| Surface Finish | Polished / Fine Grinding |
| Application Scenario | Optical Window, Lab Instrument, Furnace Sight Glas |
| Industry | Semiconductor, Chemical, Optical, Laboratory |
| Cleaning Method | Wipe with absolute ethanol or acetone, rinse with ultrapure water, avoid scratching with hard objects |
| ISO 9001 | 2015 and IATF 16949 |
| ISO9001 | 2015 Quality Management System |
| Period of validity | from2024.10.17 to 2027.10.25 |
| Date | MAY .08.2026 |
| Supplier | LIANYUNGANG BAIBO NEW MATERIAL CO., LTD. |
Technical data
| Technical Data of Clear Quartz Glass Plate | ||
| Property Content | Unit | Property Index |
| Density | g/cm3 | 2.21 |
| Tensile Strength | Pa(N/m2) | 4.9×107 |
| Compression Strength | Pa | >1.1×109 |
| Coefficient of Thermal Expansion | cm/(cm·℃) | 5.5×10−7 |
| Thermal Conductivity | W/(m·℃) | 1.4 |
| Specific Heat | J/(kg·℃) | 680 |
| Softening Point | ℃ | 1700 |
| Annealing Point | ℃ | 1210 |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “Polished / Fine Grinding”; state polish and flatness where they matter.
