Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: YN-608.
Overview

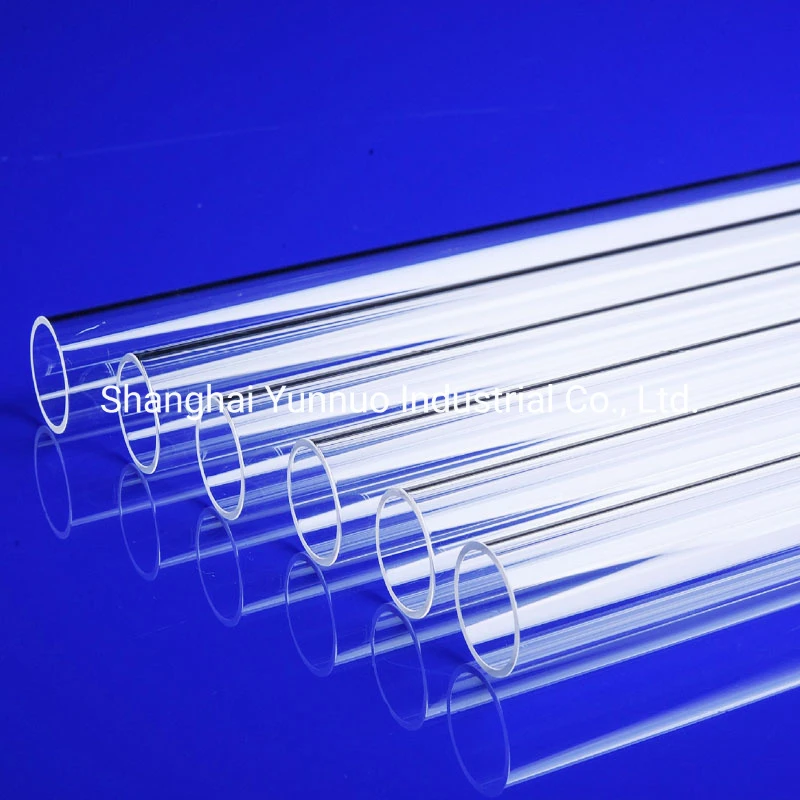

The Transparent Quartz Glass Tubes for Sale is supplied as a precision glass tube / rod. Listed geometry: cylindrical, rectangular, round, square, half shape. Temperature 1000-1200c. Typical applications: Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Shape | Cylindrical, Rectangular, Round, Square, Half |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | YN-608 |
| Color | Clear Transparent Color |
| Temperature | 1000-1200c |
| Use | Optical Fiber, Semiconductor, Industrial, Lamp |
| Feature | High Temperature High Pressure Resistant |
| Characteristic | 1.High temperature resistance |
| Product Range | 1. Quartz Glass Tube (OD 1-450MM,wall thickness 0.5-20mm) |
| Supplier | Shanghai Yunnuo Industrial Co., Ltd. |
Technical data
| Item | Value |
|---|---|
| Density | 2.2 g/cm3 |
| Compressive strength | 1100 mpa |
| Flexural strength | 67 mpa |
| Tensile strength | 48 mpa |
| Poisson's ratio | 0.14-0.17 |
| Young's modulus | 72000 mpa |
| Modulus of rigidity | 31000 mpa |
| Moh's hardness | 5.5-6.5 |
| Specific heat (20-350C) | 670 J/KG.C |
| Thermal conductivity (20C) | 1.4W/m.C |
| Refractive index | 1.4585 |
| Resistivity | 7×107 Ω.cm |
| Dielectric strength | 250-400Kw/cm |
| Dielectric constant | 3.7-3.9 |
What to specify when you request a quote
- Material — name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “YN-608”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
