Product type: Clear Quartz Pipe. Application: Laboratory Use. Model: TJ-000158.
Overview

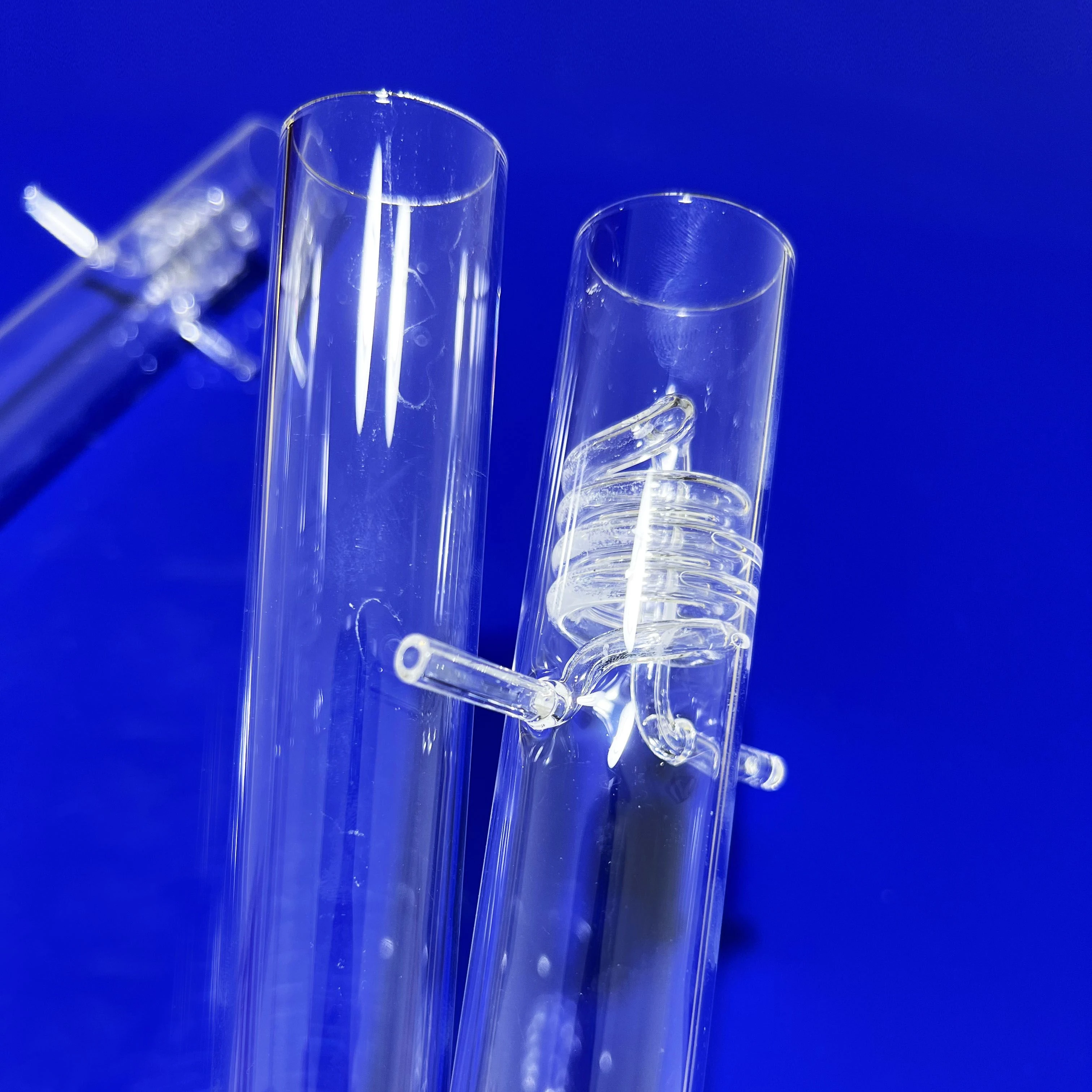

The Transparent Spiral Quartz Glass Tube Heater for High Temperature Resistant Chemistry is supplied as a quartz heating / UV lamp made from Quartz Glass. Listed geometry: one end closed quartz tube shape. Typical applications: Laboratory Use. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Clear Quartz Pipe |
|---|---|
| Shape | One End Closed Quartz Tube |
| Application | Laboratory Use |
| Model NO. | TJ-000158 |
| Color | Transparency |
| Materials | Quartz Glass |
| Softening Point | 1680℃ |
| Purity | 99.99% |
| Density | 2.2g/cm3 |
| Ozone Content | Ozone Free |
| Annealing Point | 1210℃ |
| Surface Treatment | Polished |
| Strain Point | 1120℃ |
| Outside Diameter | 2-300 |
| Supplier | Donghai County Tengjun Quartz Products Co., Ltd. |
Technical data
| 1 | Semiconductor |
|---|---|
| 2 | High Temperature Operation |
| 3 | Electricity |
| 4 | Chemical |
| 5 | New Technology |
| 6 | Others |
| Purity | >99.99% |
|---|---|
| Density | 2.2(g/cm3) |
| Degree of hardness Moh' scale | 6.6 |
| Melting point | 1732 |
| Working temperature | 1100 |
| Max temperature can reach in a short time | 1450 |
| Acid tolerance | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance | above 93% |
| UV spectral region transmittance | 80% |
| Resistance value | 10000 times than ordinary glass |
| Annealing point | 1215 |
| Softening point | 1730 |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “TJ-000158”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
