Application: Building, Furniture, Electronics & Instruments, Auto Manufacturing. Model: yt8968.
Overview

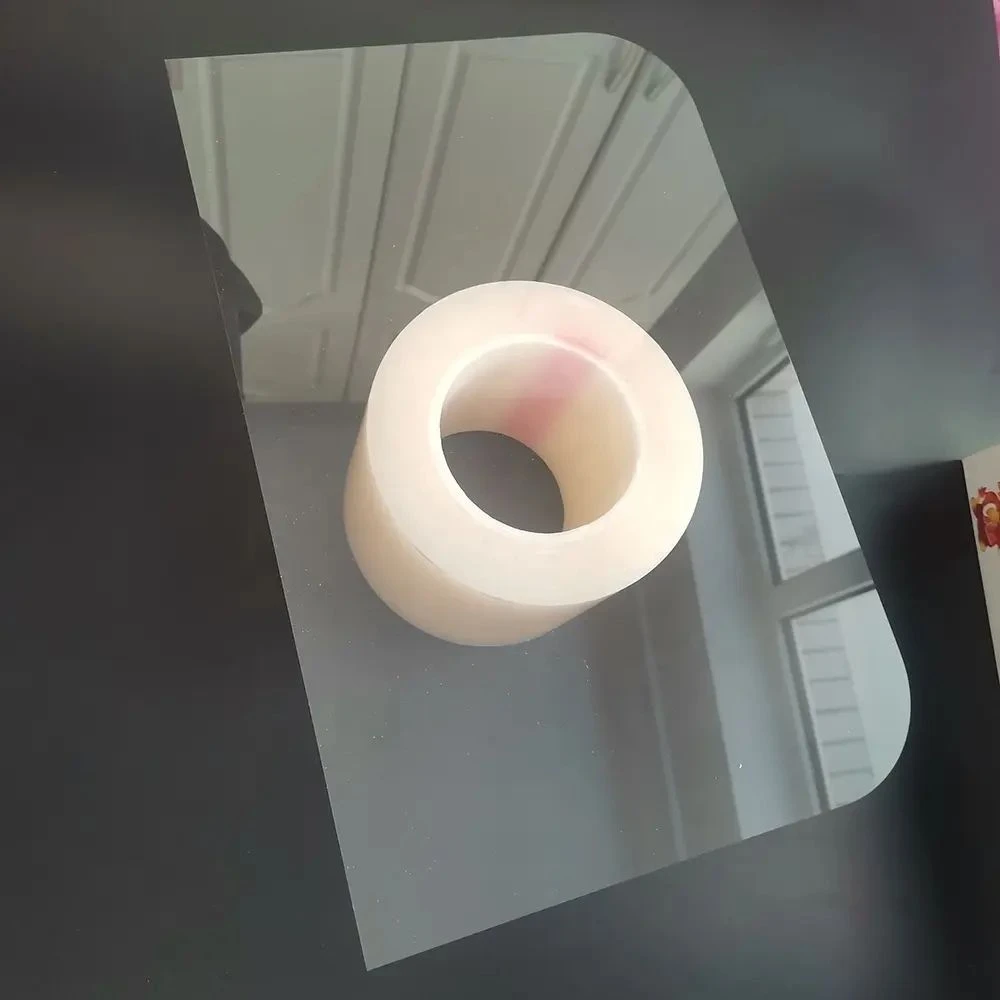

Ultra Thin Glass Gorilla/D263t/Fto/ITO/Dragontrail/Corning Xg/Low Iron Clear Glass Sheet: an ITO-coated glass. Listed geometry: thickness 1.1/0.8/0.7/0.55mm, flat shape. It is used in Building, Furniture, Electronics & Instruments and Auto Manufacturing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | 1.1/0.8/0.7/0.55mm |
| Usage | Building, Furniture, Electronics & Instruments, Auto Manufacturing |
| Appearance | Flat Tempered |
| Model NO. | yt8968 |
| Standard | Yutai |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 1.1mm |
| Thickness of Curve Tempered Glass | 1.1mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Tempered Type | Chemical Tempered |
| Supplier | Changchun Yutai Optics Co., Ltd. |
Technical data
| Product Name | Ultra Thin Glass Gorilla/D263T/FTO/ITO/DragonTrail/Corning XG/Low Iron Clear Glass Sheet |
|---|---|
| Material | Glass Gorilla/D263T/FTO/ITO/DragonTrail/Corning XG/Low Iron |
| Dimension | AS REQUEST |
| Thickness | 0.1-0.7MM |
| Surface Finish | TRANSPARENT |
| Keywords | ultra clear glass |
| Tolerance | +-0.001 mm |
| Coating | as requirements |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “1.1/0.8/0.7/0.55mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
