Product type: Concave Lens. Application: Lighting, Medical, Optical, Photography, Laser device. Model: Ball lens.
Overview

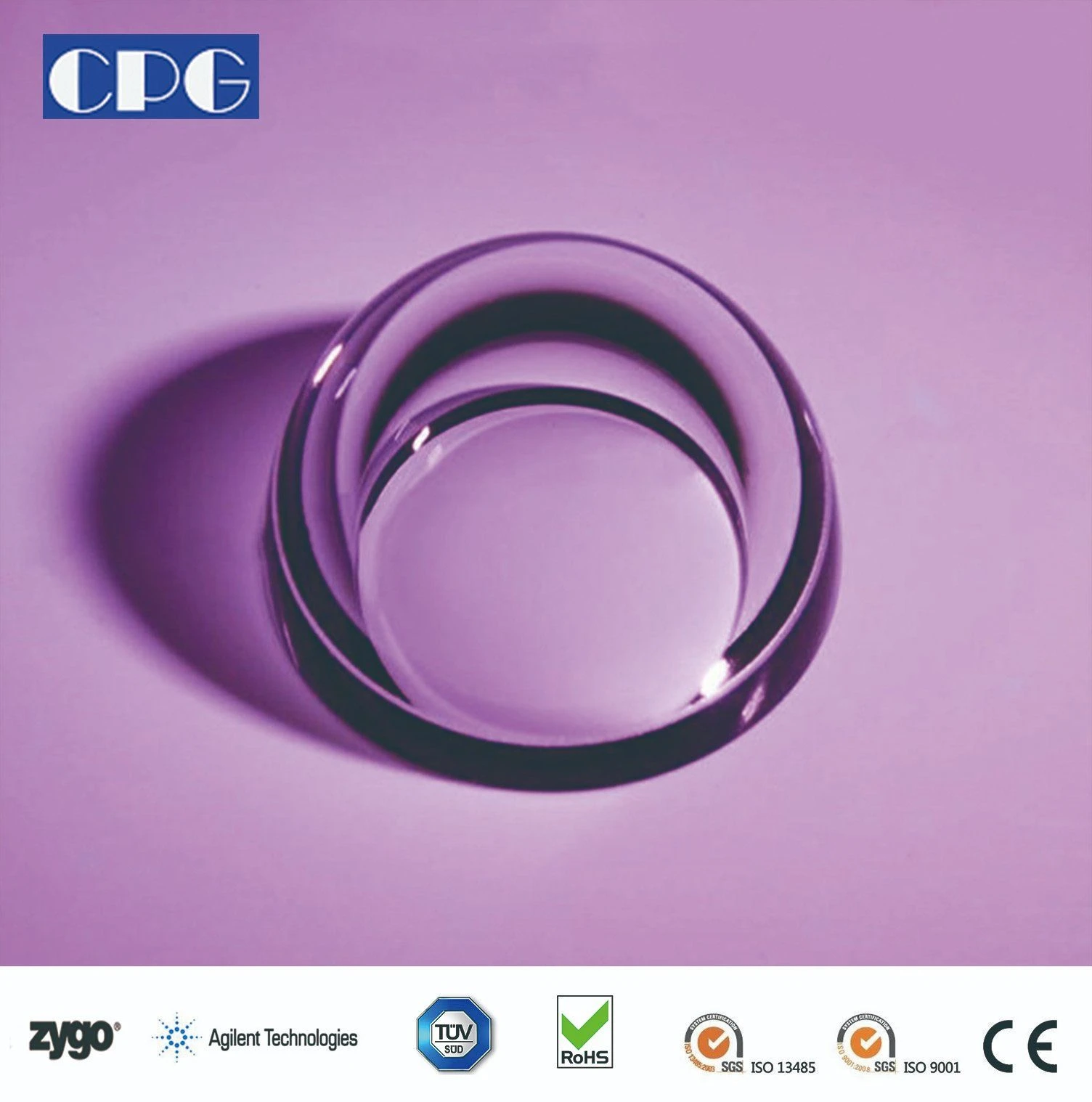

UV Fused Silica Optical Biconcave BCX Fiber Coupling Half-sphere/Collimating Lenses: an optical lens made from Fused Silica. Listed geometry: diameter 20.8+0.0/-0.1mm, single-lens shape. Optical / electrical data: transmittance 90%-95%. Coating: Anti-Reflection. Typical applications: Lighting, Medical, Optical, Photography and Laser device. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica |
|---|---|
| Type | Concave Lens |
| Shape | Single-lens |
| Diameter | 20.8+0.0/-0.1mm |
| Transmittance | 90%-95% |
| Coating | Anti-Reflection |
| Clear aperture | >90% |
| Usage | Lighting, Medical, Optical, Photography, Laser device |
| Model NO. | Ball lens |
| Lenses Color | Clear |
| Specifications | Items |
| Center thickness | 2.0+/-0.1mm |
| ROC1 | 22.85mm,CC |
| ROC2 | 22.85mm,CC |
| Centerness | <3arcmin |
| Chamfer | <0.25mmx45deg |
| LIDT | >2.5J/cm |
| Standard | MIL-PRF-13830B |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Biconcave Lens | Material: | Fused Silica |
| Diameter: | 20.8+0.0/-0.1mm | |
| Center thickness: | 2.0+/-0.1mm | |
| ROC1: | 22.85mm,CC | |
| ROC2: | 22.85mm,CC | |
| Surface quality: | S1&S2:20-10 | |
| Centerness: | <3arcmin | |
| Clear aperture: | >90% | |
| Chamfer: | <0.25mmx45deg | |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Fused Silica”; name the glass or crystal.
- Geometry — listed as “20.8+0.0/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “<0.25mmx45deg”; state centration and edge chamfer.
- Coating — listed as “Anti-Reflection”; list the band and reflectance or transmission target.
