Application: Medical Services System.
Overview

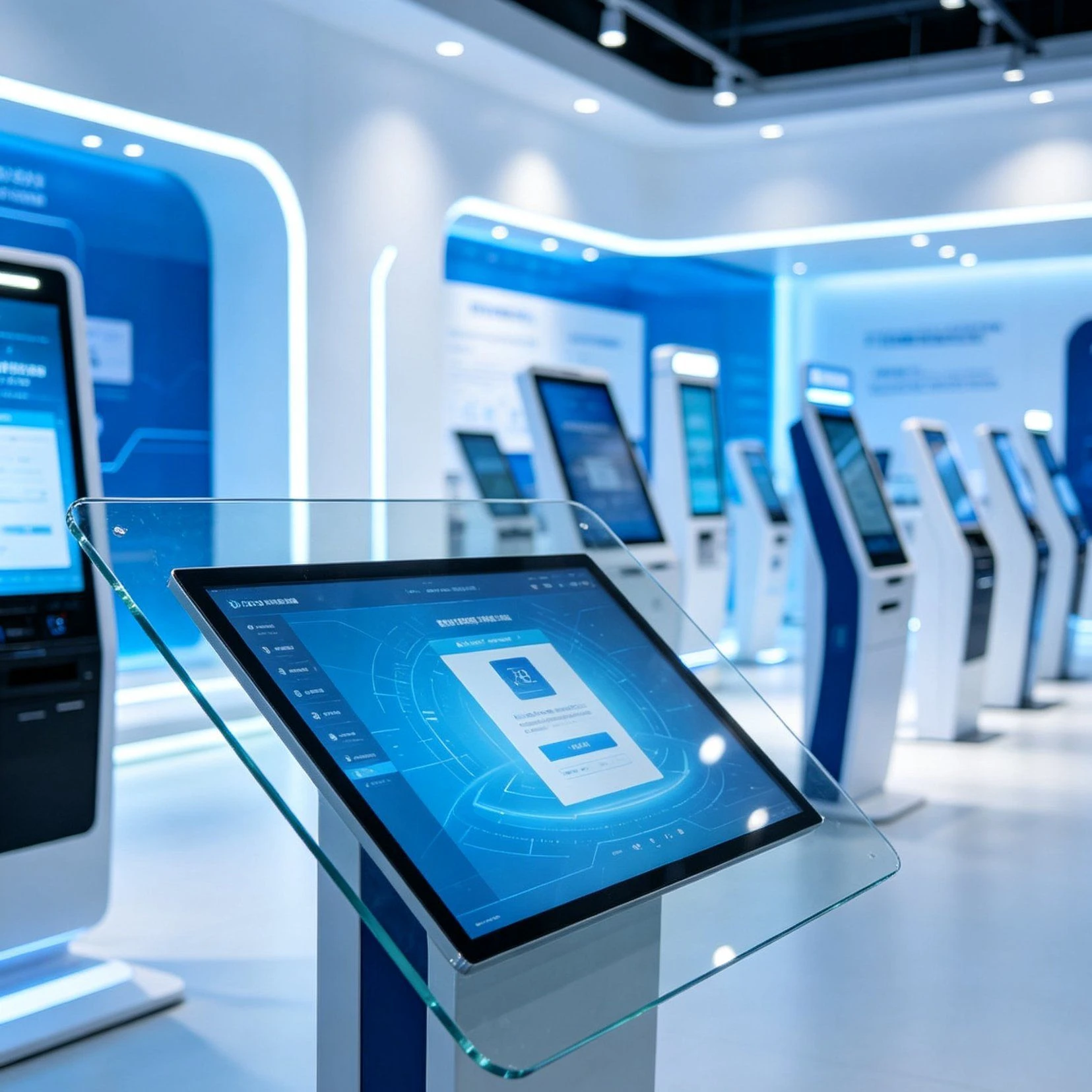

The Water Resistant Industrial Touch Screen Custom Cover Glass for Vending Machine is supplied as a display / touchscreen cover glass. Typical applications: Medical Services System. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Application | Medical Services System |
|---|---|
| Screen Type | Capacitive |
| Interface Type | Lic/USB |
| Touch Points | 10 Points |
| Surface Hardness | ≥6h |
| Screen Size | 15-20 Inches |
| Aspect Ratio | 16:9 |
| Triple communication interfaces | USB plug-and-play without driver, I2C and RS232 serial for different host devices |
| Multiple surface treatment optional | AG anti-glare, AF anti-fingerprint, AR high transmittance coating |
| USB | 5V; I2C:2.8V~3.3V |
| Industrial HMI Control Equipment | CNC machine, production line monitoring terminal, factory operation panel |
| Medical Display Devices | Medical monitoring touch screen, medical inquiry kiosk |
| Commercial Self-service Kiosks | Payment terminal, information inquiry machine, ticketing equipment |
| Digital Signage & Advertising Machine | Indoor commercial display, conference touch monitor |
| Cover glass | Silk screen logo, hole cutting, edge polishing, AG/AF/AR coating |
| FPC | Custom length, 0.5mm /1.0mm gold finger pitch, COF structure available |
| Firmware | Pre-burn matched IC program per production order |
| Appearance | Ultra-narrow bezel design, customized outline size |
| Function | Waterproof, glove touch, thick glass touch, active stylus support |
| Supplier | Shenzhen Anchu Science and Technology Co., Ltd. |
Technical data
| Item | Specification |
|---|---|
| Product Model | AC-C097001 |
| Diagonal Size | 9.7 inch, 16:9 Aspect Ratio |
| Structure | G+G (Tempered Glass + ITO Sensor Glass) |
| Touch Points | Standard 10 Points Multi-Touch |
| Cover Glass Hardness | ≥6H Tempered Glass, 0.55~12mm Customizable |
| Light Transmittance | ≥87% |
| Touch IC Compatible | ILITEK ILI2510/2132, Goodix GT Series, WDT, SIS |
| Communication Interface | USB 2.0 / I2C / RS232 |
| Operating Voltage | USB:5V; I2C:2.8V~3.3V |
| Operating Temp | -10ºC ~ +60ºC |
| Storage Temp | -20ºC ~ +70ºC |
| Surface Treatment | AG / AF / AR (Optional) |
| Custom Functions | Glove Touch, Waterproof, Active Stylus (4096 Pressure Levels) |
| Compatible OS | Windows XP/7/10/11, Linux, Android, MacOS |
| Reliability Test | High-low Temperature Cycle, Salt Spray, Open/Short Circuit Test |
| HS Code | 8548000030 |
What to specify when you request a quote
- Glass type and thickness — name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “≥6h”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “15-20 Inches”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
