Product type: Bioglass, Glass. Application: Furniture, Door, Building, Window. Model: Corning Eagle XG. Function: Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview

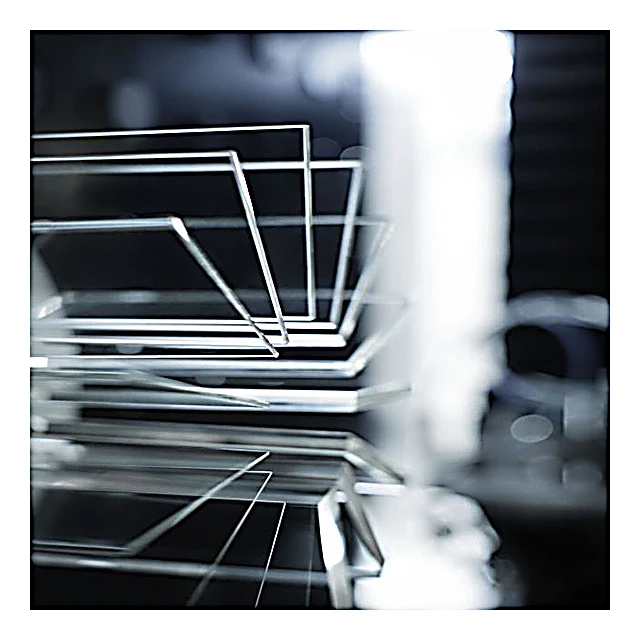

Willow Flexible Glass 440*440*0.1mm Infrared Attenuation Filter Infrared Bandpass Filter is a bandpass filter. It is used in Electronics & Instruments, Chemical, Ceramic and Glass. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Bioglass, Glass |
|---|---|
| Application | Electronics & Instruments, Chemical, Ceramic, Glass |
| Usage | Furniture, Door, Building, Window |
| Structure | Solid |
| Model NO. | Corning Eagle XG |
| Moh's Hardness | 7 |
| Function | Optical Function, Electromagnetic Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Transparent |
| Processing Method | Surface Coating |
| Color | Clear |
| Supplier | GuangZhou Lighting Glass CO., LTD. |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “Surface Coating”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Bandpass Filter Glass for Reliable Optical Performance. How parts like this are machined and finished is covered in Chalcogenide Glass Coating for IR Optical Components. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Bandpass Filter.
