Product type: Plano-Convex Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0025.
Overview

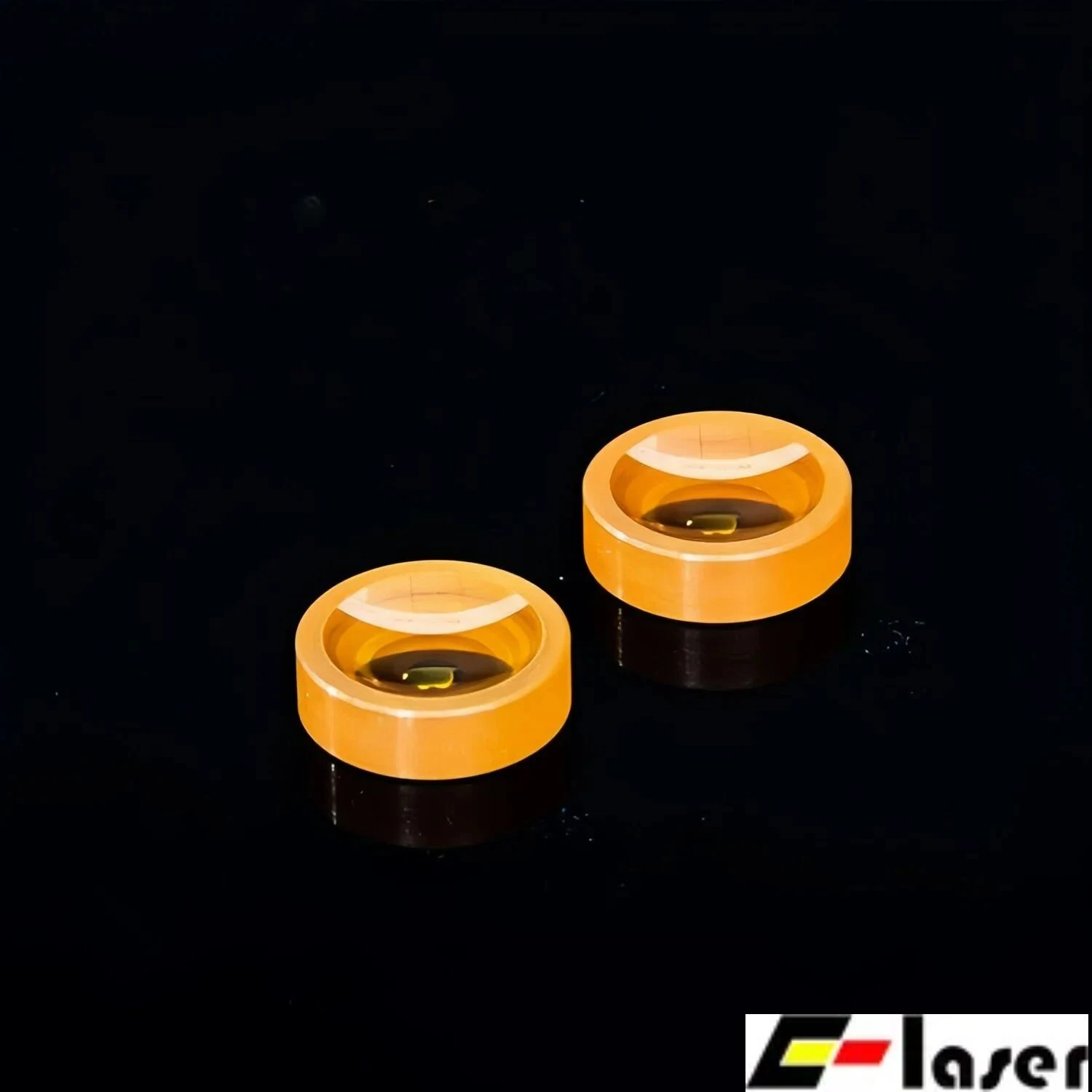

The Znse Aspherical Meniscus & Plano Convex Thermal Imaging Infrared Optical Lens Zinc Selenide is supplied as an optical lens in Optical Glass (Optical Glass, UV Fused Silica Substrate substrate). Listed geometry: single-lens shape. Optical / electrical data: transmittance Central 90% of Diameter. Coating: Ar.14, Ar.16, Ar.18, Ar.33 Coated; surface quality 40-20 Scratch-Dig or Custom Manufacturing. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass, UV Fused Silica Substrate |
| Type | Plano-Convex Lenses |
| Shape | Single-lens |
| Transmittance | Central 90% of Diameter |
| Coating | Ar.14, Ar.16, Ar.18, Ar.33 Coated |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0025 |
| Lenses Color | Clear |
| Effective Focal Length(Efl) | From +6.4mm to +1000mm |
| Surface Accuracy, Irregularity | Lambda/4 or Custom Manufacturing |
| Exceptional Optical Precision | Strictly controlled surface accuracy (λ/8) and surface quality (20-10 scratch-dig) minimize light scattering and ensure uniform light divergence. |
| N-BK7 | Cost-effective optical glass with excellent transmittance in 400-1100nm (visible to near-IR), ideal for general optical applications. |
| CaF2/MgF2 | Broad spectral transmittance (UV to mid-IR) and high laser damage threshold, suitable for high-power UV/IR systems. |
| ZnSe | Optimized for mid-IR (6-16μm) transmittance, commonly used in IR imaging and CO2 laser systems. |
| Laser Technology | 1064nm laser systems, CO2 lasers, UV laser processing. |
| Spectroscopy | UV-Vis-IR spectrometers, analytical instruments. |
| Imaging & Sensing | IR thermal imaging, machine vision (visible band). |
| Industrial Optics | UV curing equipment, optical alignment systems. |
| Research & Medical | Laboratory optics, diagnostic equipment. |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Material | Spectral Range | Key Advantages | Typical Applications |
| N-BK7 | 400 – 1100 nm | Cost-effective, good optical homogeneity, low dispersion | Visible-light optics, imaging systems |
| UV Fused Silica | 195 – 2100 nm | UV transmittance, (low thermal expansion), radiation-resistant | UV curing, laser processing (1064nm) |
| CaF2 (Calcium Fluoride) | 180 nm – 8 μm | Broad UV-IR transmittance, high laser damage threshold | High-power UV/IR lasers, spectroscopy |
| MgF2(Magnesium Fluoride) | 110 nm – 7 μm | Deep UV transmittance, low refractive index, chemical stability | Deep UV optics, aerospace instruments |
| ZnSe (Zinc Selenide) | 6 – 16 μm | Mid-IR optimization, low absorption in IR band | CO2 lasers, IR imaging |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “From +6.4mm to +1000mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar.14, Ar.16, Ar.18, Ar.33 Coated”; list the band and reflectance or transmission target.
