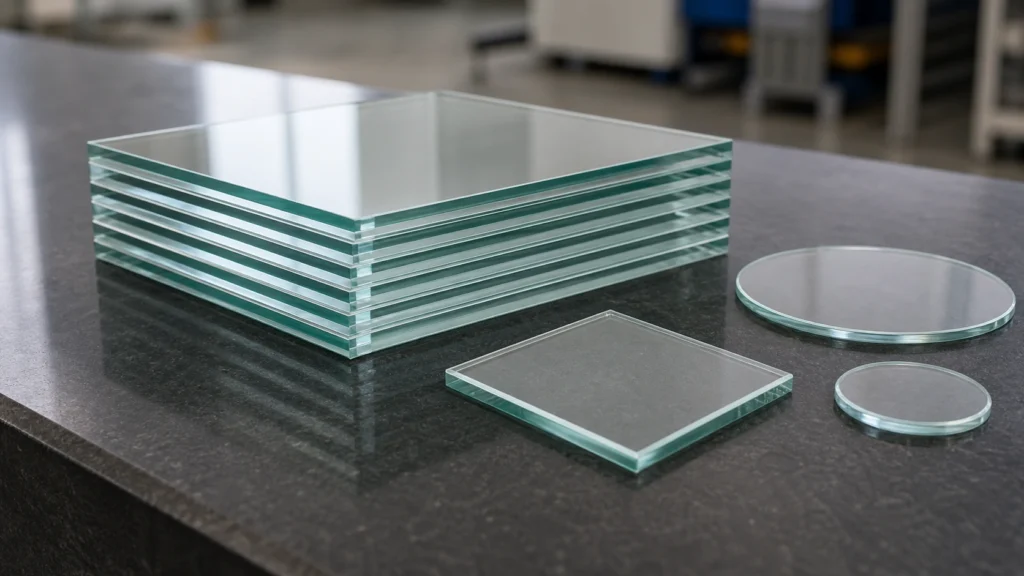

Technical Guide to Glass Thickness and Flatness Requirements

When engineers need a custom precision glass wafer, optical window, or microfluidic chip, the first dimension they must pin down is thickness — but flatness is equally critical. This guide explains how to specify glass thickness tolerance and glass flatness specification for machinable glass materials in a way that aligns with both design intent and fabrication reality.

Why This Specification Matters for Custom Precision Glass Components

Thickness directly controls mechanical strength, optical path length, and bonding interface reliability. Flatness governs uniform contact for sealing, imaging field flatness in optical systems, and minimal distortion in beam-splitting applications. A glass-bottom microplate requires extremely flat bottom surfaces for high-resolution microscopy; a beam splitter glass demands parallelism and flatness to avoid wavefront error. Defining these parameters early prevents function loss, costly redesign, and production delays.

Material Considerations: Fused Silica, Quartz Glass, Borosilicate, Borofloat 33, Alkali-Free Glass and More

Each precision glass material offers a different starting thickness tolerance and flatness capability. Fused silica and synthetic quartz glass can be polished to sub‑micron flatness but are harder to machine. Borosilicate glasses like Borofloat 33 exhibit low thermal expansion and good flatness from the float process, often supplied with commercial flatness grades. Alkali‑free glasses, used in electronics, provide tight thickness uniformity for thin substrates. Specifying the material early helps the supplier assess whether your flatness target can be met by the base glass or requires post‑processing such as lapping, polishing, or CNC grinding.

Geometry and Drawing Requirements: Dimensions, Thickness, Diameter, Holes, Slots, Grooves, Edge Distance and Orientation Features

Your drawing must clearly identify the nominal thickness and flatness reference plane. Include overall length, width, or diameter, plus any internal features: holes, slots, grooves, or orientation notches. For a perforated disc, indicate minimum edge distance to maintain flatness after drilling. For a microfluidic glass chip, show channel depth and cover glass thickness separately. Whenever possible, attach a datum scheme that defines which surface is the flatness datum — this dictates how parallelism, bow, and total thickness variation (TTV) are measured.

Tolerance and Surface Requirements: Dimensional Tolerance, Flatness, TTV, Bow/Warp, Parallelism, Surface Quality, Scratch‑Dig, Polish Level and Edge Finish

Glass thickness tolerance is commonly expressed as ± a value (for example, ±0.1 mm) for machined parts, but can be reduced to ±0.02 mm with precision grinding. Flatness is typically specified as a peak‑to‑valley (PV) deviation over a defined area or as TTV across the full surface. Parallelism between faces is critical for optical windows: a value such as <1 arcminute is often expected. Bow and warp become significant for larger sheets. Surface quality, measured by scratch‑dig (e.g., 60-40 or better) and roughness (Ra in nanometers), depends on the polish level. Edge finish — seamed, ground, or polished — should be noted, as chipped edges can affect downstream coating or bonding.

Coating or Functional Requirements: AR Coating, Optical Filter Coating, ITO/FTO Conductive Coating, Edge Deletion, Etched Grooves, Metallization, Bonding and Cleanliness

Applied coatings interact with substrate flatness and thickness. Anti‑reflective (AR) coatings require uniform film thickness, so incoming flatness must be held tightly. ITO or FTO conductive glass may need a specific sheet resistance that depends on coating thickness; any thickness variation in the glass translates to resistance spread. Some designs call for edge deletion of coatings, etched cavities, or metallization for bonding. Note whether coating should be applied before or after mechanical features are formed. Also specify cleanliness: particle‑free, low outgassing, or compatible with subsequent bonding steps. Flatness may change after coating due to film stress, so discuss post‑coating measurement with your supplier.

Key Specification Points

Before requesting a quote, define the following:

• Nominal thickness and tolerance
• Flatness requirement (PV/TTV over given area)
• Parallelism (if applicable)
• Surface quality: scratch‑dig and roughness
• Edge finish detail (seamed, ground, polished)
• Material grade and form (sheet, rod, tube)
• Drawing with GD&T datums
• Coating type, area, and location of coating (if any)
• Quantity and end‑use application

Manufacturability Notes: What the Supplier Needs to Review Before Production

The supplier must evaluate whether the requested thickness tolerance is feasible for the chosen material and overall footprint. Thin, large‑format parts risk warping during grinding or coating; they may require stress‑relief anneals. Edge chipping is a risk when drilling near the perimeter; a minimum edge distance rule helps. Flatness after coating often differs from bare glass — if the specification applies to the coated part, it must be measured after coating. Inspection methods (interferometer, profilometer, coordinate measuring machine) should match the feature size. Cleaning protocols for particle‑free optical surfaces and vacuum‑compatible packaging for coated parts should be confirmed. These checks ensure the design is producible at scale.

Visual Specification Support with the 3D Configurator

For custom geometry parts, the Precision Glass 3D Configurator offers a visual preview of your component. You can select a product module — such as a glass wafer, microfluidic chip, optical filter, ITO/FTO conductive glass, perforated plate, LED/OLED cover glass, AR optical window, beam splitter glass, CCD optical glass plate, or glass‑bottom microplate — and then adjust dimensions and features to generate an interactive model. The tool also produces an RFQ summary that you can copy and submit together with your formal drawings for an engineering review. This step does not replace final drawing verification but helps align expectations early.

Begin Your Glass Component Review

To start a production feasibility review, send your 2D drawings or 3D files, material preference, thickness and flatness tolerances, surface finish requirements, quantity, and target application details to our technical team. Early collaboration helps identify the most manufacturable approach while meeting your optical and mechanical requirements.

Understanding Flatness, Parallelism, and Thickness Variation

Parallelism between faces is critical for optical windows: a value such as 5 arc‑minutes guarantees consistent refraction, while a tighter 30 arc‑second spec suits laser‑grade fused silica. Flatness is quoted as a peak‑to‑valley (PV) deviation over a defined aperture — for example, λ/4 at 632.8 nm for an inspection window, or λ/10 for an interferometer reference plate. Total thickness variation (TTV) captures the worst‑case thickness difference across the entire part; specifying 10 μm TTV on a 100 mm borosilicate glass wafer ensures uniform optical path length. Bow and warp describe overall shape deviation from a perfect plane; define the measurement area and support points (e.g., three‑point or annular ring) because apparent flatness changes with fixturing.

Surface quality is typically rated by scratch‑dig (e.g., 60‑40, 40‑20, 20‑10 per MIL‑PRF‑13830) and polish level. For non‑imaging covers, 80‑50 scratch‑dig may suffice, while CCD glass plates often require 40‑20 or better. Edge finish — ground, polished, or seamed — affects both safety and dimensional stability; a seamed edge reduces chipping risk during handling without adding cost, whereas a polished edge is needed for fusion bonding or cosmetic surfaces.

Coating and Functional Layer Requirements

Anti‑reflective (AR) coatings raise transmission to 99.5% or higher over a specified wavelength range — for instance, a broadband AR on AR coated glass from 400‑700 nm for visible cameras or a dual‑band AR for SWIR/MWIR detectors. ITO/FTO conductive coatings on alkali‑free glass wafers are commonly specified by sheet resistance (e.g., 10‑15 Ω/sq) and optical transmission (>85% at 550 nm). Define edge deletion width if electrical isolation is needed. For beam splitter plates, the reflectance/transmission split ratio at a stated angle of incidence and polarization is mandatory. All coatings should be called out on the drawing with the coated surface explicitly identified and any masking zones indicated. Cleanliness after coating — often particle‑count limits per area — must be confirmed for vacuum or semiconductor use.

Key Specification Points

Before requesting a quote, define the following:

• Glass material: fused silica, Borofloat 33, optical glass, etc., with CTE and transmission range.
• Dimensions & tolerance: length, width, diameter, thickness ± tolerance, and any hole/slot geometry with minimum edge distance.
• Flatness & form: PV flatness in μm or waves, TTV, bow/warp limit, parallelism in arc‑minutes, and the datum surface.
• Surface quality: scratch‑dig and finish on each face, edge treatment.
• Coatings: type, spectral specs, coating area, edge deletion, adhesion requirements.
• Cleanliness & packaging: particle level, electrostatic discharge sensitivity, packaging for cleanroom use.

Manufacturability Notes

Thinner parts (below 0.5 mm) become flexible; vacuum‑assisted fixturing or adhesive bonding during polishing may be needed. Large‑area flatness below λ/2 on a 300 mm sheet demands stress‑free support and slow polishing cycles — engineering review will determine if the target is feasible with the chosen material and thickness. Machining features such as slots or pockets can introduce subsurface damage; a post‑machining anneal may be required for fused silica or Borofloat 33 to stabilize stress before final polishing. Coating on one side can induce a slight curvature change; a stress‑balanced coating or symmetrical coating design can minimize warp. Final inspection of flatness and TTV is typically performed with a white‑light interferometer or an optical flat under monochromatic light. Packaging must prevent deflection: single‑piece foam trays for thin wafers or double‑sided cushioning for large plates.

Using a 3D Configurator to Clarify Geometry Before RFQ

Complex geometry — especially microfluidic channels, stepped edges, or multi‑hole patterns — benefits from visual feedback. The Precision Glass 3D Configurator lets you select a product module (glass wafer, microfluidic chip, optical window, or custom glass) and adjust key dimensions to generate a 3D preview. This tool helps verify basic design intent and produces an RFQ summary that you can attach alongside your detailed drawing. Note that the configurator is a support tool; final material selection, tolerances, and coating feasibility require an engineering review of your 2D drawing.

Request a Specification Review

Send your 2D drawing, material and coating requirements, targeted flatness and TTV values, expected quantities, and the end‑use application. Our engineering team will review the design for manufacturability and confirm which tolerances can be held with standard processes and where tighter specs may require custom tooling. We provide a technical feasibility report before quoting so that design‑to‑production risks are clear upfront.
