How Precision CNC Glass V-Grooving Works for LED and Optical Parts
When your LED module or optical assembly demands accurate alignment, light control, or thermal management, CNC V-groove machining delivers repeatable, high-precision channels directly into glass substrates. This process creates V-shaped grooves with tight angular and dimensional control, enabling consistent positioning of optical fibers, LED dies, or cover plates in high-volume production. Our factory combines advanced CNC glass v groove machine technology with robust in-line quality protocols to supply OEMs and contract manufacturers worldwide.
Key Facts About Our CNC V-Groove Process
- Applications: LED Groove Cover Glass, optical fiber arrays, sensor windows, microfluidic chips.
- Materials: Borosilicate, fused silica, soda-lime, quartz, and optical glass.
- Tolerances: Groove depth and angle held to tight, repeatable limits; surface roughness typically below 0.01 µm Ra.
- Finishing: AR or reflective coatings applied via magnetron sputtering; chemical tempering available.
- Scalability: Production runs from prototypes to millions of units with consistent cross-batch uniformity.
Base Materials and Inputs
Before machining begins, raw glass is selected to match the end-use environment. Borosilicate glass (e.g., Borofloat 33) offers low thermal expansion, making it ideal for LED packages exposed to thermal cycling. Fused silica provides exceptional UV transparency and high-temperature resistance, frequently chosen for optical sensing and laser diode housings. Soda-lime glass serves cost-sensitive LED cover applications where standard transmission and durability suffice. For ultraviolet or harsh chemical settings, we also process quartz and sapphire. Each sheet is inspected for inclusions, striae, and thickness variation—critical because subsurface defects can propagate during V-groove cutting.
Step-by-Step Manufacturing Stages
The production flow is sequenced to preserve edge quality and dimensional accuracy from blank to finished component. Every stage feeds into the next under a single quality management system.
1. Cutting and Scribing
Large mother sheets are sectioned to near-net shape using CNC-controlled diamond scribing and breaking, or waterjet cutting for complex outlines. This yields blanks with consistent outer dimensions before grinding.
2. Grinding
Edge and surface grinding establish parallel faces and precise thickness. Double-side grinding machines with diamond wheels remove material uniformly, reducing risk of wedge-shaped errors that would compromise later groove depth control.
3. Lapping and Polishing
Lapping with alumina or cerium oxide slurries flattens surfaces to within fractions of a wavelength of light. Subsequent polishing achieves the low scattering finish required for optical-grade V-grooves. Flatness and parallelism are verified interferometrically before the part moves to CNC grooving.
4. CNC V-Groove Machining
This is the core step. Our CNC glass v groove machine uses a diamond grinding wheel profiled to the desired V-angle—commonly 90°, 120°, or custom geometries. The spindle traverses the glass surface under CNC motion control, cutting grooves to precise depth and spacing. Feed rate, spindle speed, and coolant flow are tightly regulated to prevent chipping. Multiple grooves are cut in a single setup, often in array patterns for LED light bars or fiber alignment V-grooves.
5. Edging and Secondary CNC Operations
After grooving, outer edges are finished via CNC edging to meet final part dimensions. Where design requires, we add holes, slots, or cutouts using CNC drilling and routing, ensuring these features align with the groove pattern within micron-level tolerances.
6. Coating
Optical functions are enhanced with thin-film coatings. Magnetron sputtering applies anti-reflection (AR) layers to maximize LED light transmission, or high-reflectivity coatings for beam routing. Coatings are deposited in ISO Class 7 cleanrooms to prevent particulate contamination that would cause pinholes.
7. Tempering and Strengthening
When required, chemical tempering via ion exchange strengthens the glass, increasing surface compressive stress. This is particularly valuable for LED cover glasses that must resist thermal shock and mechanical impact.
8. Final Cleaning and Inspection

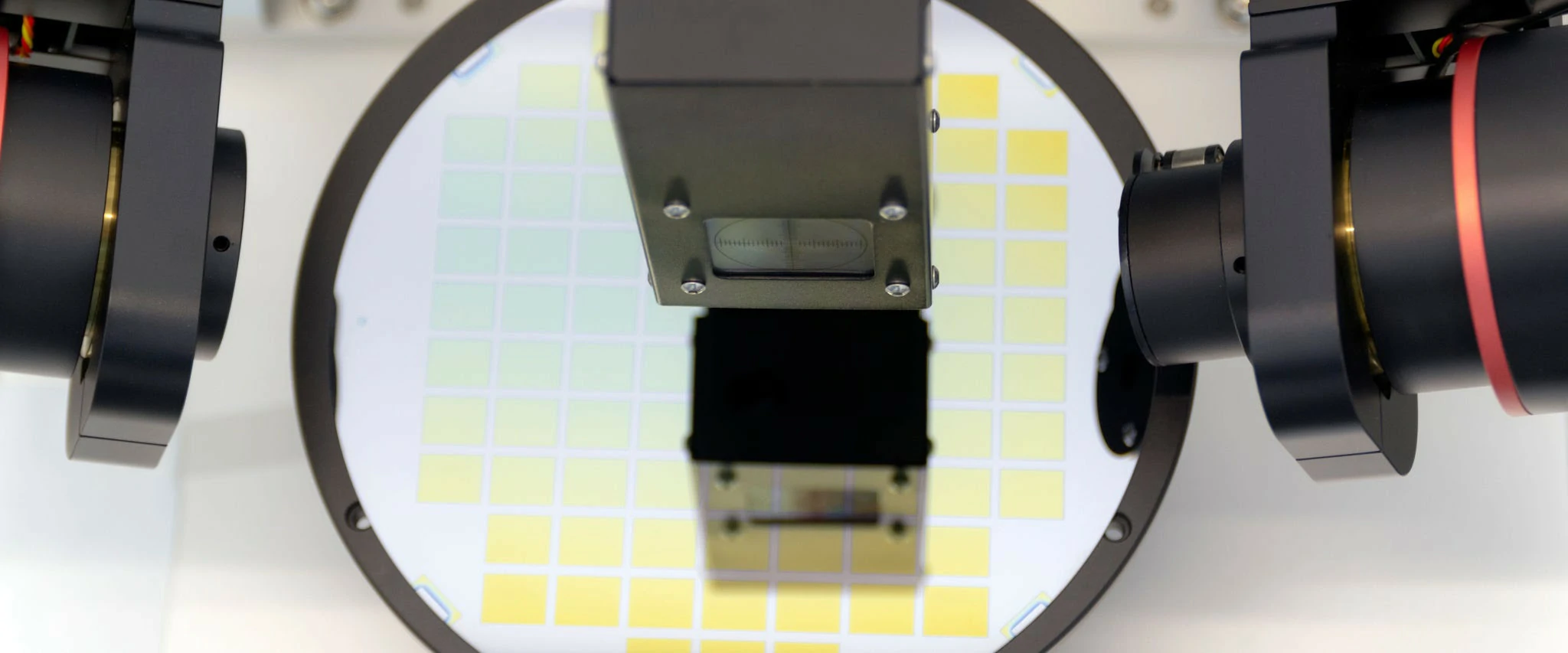

Parts undergo multi-stage ultrasonic cleaning followed by deionized water rinsing and drying. The final cleanroom inspection uses CCD Optical Screening Glass Plate systems to check for microparticles, scratches, and coating defects before packaging.
Critical Equipment and Techniques
Our process relies on specialized machinery chosen for reliability and precision. The glass v groove machine integrates a high-rigidity granite base for vibration damping, linear motor stages for sub-micron positioning, and in-process tool wear monitoring. Double-side polishing machines guarantee parallelism across large panels, while magnetron sputtering coaters produce uniform, durable films. All CNC operations are programmed offline and simulated to avoid collisions and optimize tool paths. In-house tool room maintains and re-profiles diamond wheels, ensuring consistent groove geometry run after run.
In-Line Quality Checkpoints During Production
Quality is embedded at every station:
- Dimensional: Laser micrometers and vision systems measure groove depth, width, and pitch on every lot.
- Flatness and Parallelism: Interferometers verify surface flatness (typically λ/4 or better) before grooving.
- Surface Quality: Per MIL-PRF-13830 or customer scratch-dig specs, checked with high-intensity lamps and microscopes.
- Transmission/Reflection: Spectrophotometers confirm coated parts meet optical performance targets.
- Groove Integrity: Chipping and edge condition evaluated under magnification; statistical process control (SPC) tracks trends.
Scalable Capacity for Bulk Orders
Our workflow is designed for scalability without sacrificing consistency. Multiple CNC cells run identical programs, synchronized through centralized tool management and real-time SPC. Raw glass inventory is managed against forecasted demand to prevent long lead times. Whether you need a thousand pieces for a pilot run or millions for a consumer LED product line, we adapt batch sizes while maintaining documentation traceable to each process lot. Typical lead times for repeat orders are communicated during quoting, and rush services can be coordinated for urgent development needs.
Consolidated Process Overview
| Stage | Key Actions | Equipment/Method | Quality Metrics |
|---|---|---|---|
| Material Selection | Choose glass type, inspect for defects | Visual, thickness gauges | Inclusion/striae limits |
| Cutting/Scribing | Size blanks to near-net shape | CNC scribe, waterjet | Dimensional tolerance |
| Grinding | Create parallel surfaces, target thickness | Double-side grinder | Thickness variation, TTV |
| Lapping & Polishing | Achieve optical flatness & low Ra | Pitch polishers, CMP | Flatness (λ/4), Ra |
| CNC V-Grooving | Cut V-channels with diamond wheel | CNC glass v groove machine | Groove depth, angle, pitch, chipping |
| Coating | Apply AR/reflective films | Magnetron sputtering | Transmission/reflection, adhesion |
| Final Inspection | Clean, inspect, pack | CCD, spectrophotometer, microscopy | Cosmetics, optical specs |
