Product type: Optical Glass Window. Application: Optical and Photographic Instrument.
Overview

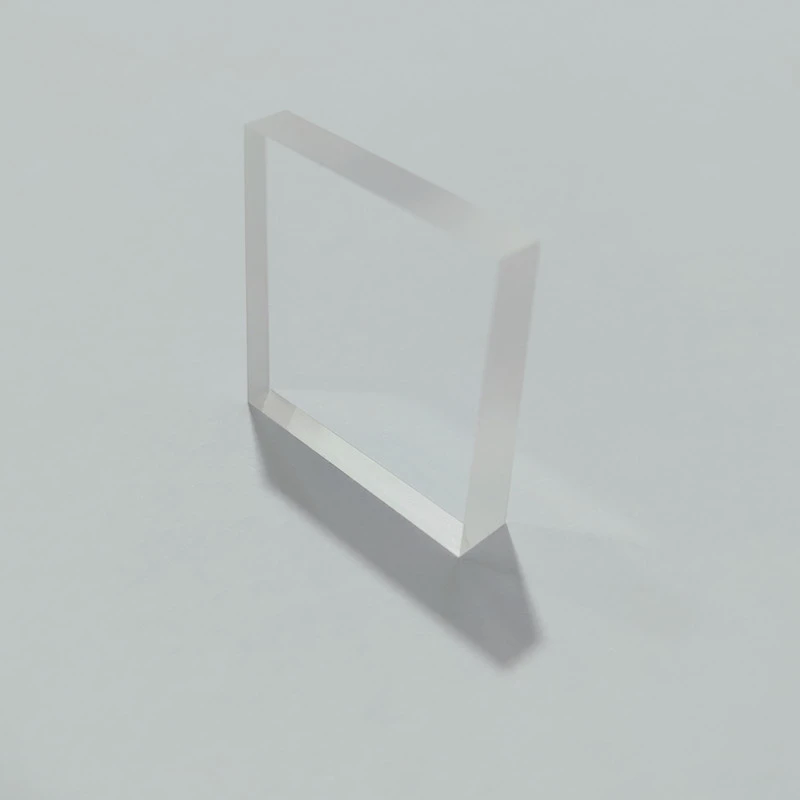

Anti-Reflective Optical Ar Coating K9 Bk7 Transparent Sapphire Glass Optical Lens Wedge Window: an optical lens made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 355-1064nm. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Glass Window |
| Shape | Customized |
| Cwl | 355-1064nm |
| Usage | Lighting, Medical, Optical, Photography |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Name | Optical Window |
| Key | Optical Glass Window |
| Thickness Tolerance | ±0.1mm |
| Use | Optical and Photographic Instrument |
| Thickness Range | Customized |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Name | Optical windows |
|---|---|
| Material | optical glass, UVF, Sapphire etc. |
| Diameter | 0.2-300mm |
| Thickness | 0.5-5mm |
| Dimension tolerance | +/-0.1mm or +/-0.02mm |
| Surface quality | 40/20 ~ 80/50 or Better |
| Clear aperture | >85%, >90% |
| Surface accuracy | λ/10 λ/2 |
| Bevel | 0.1~0.3mm x 45 degree |
| Coating | AR or Custom |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “45°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
