Model: Anti-Reflective Glass.
Overview

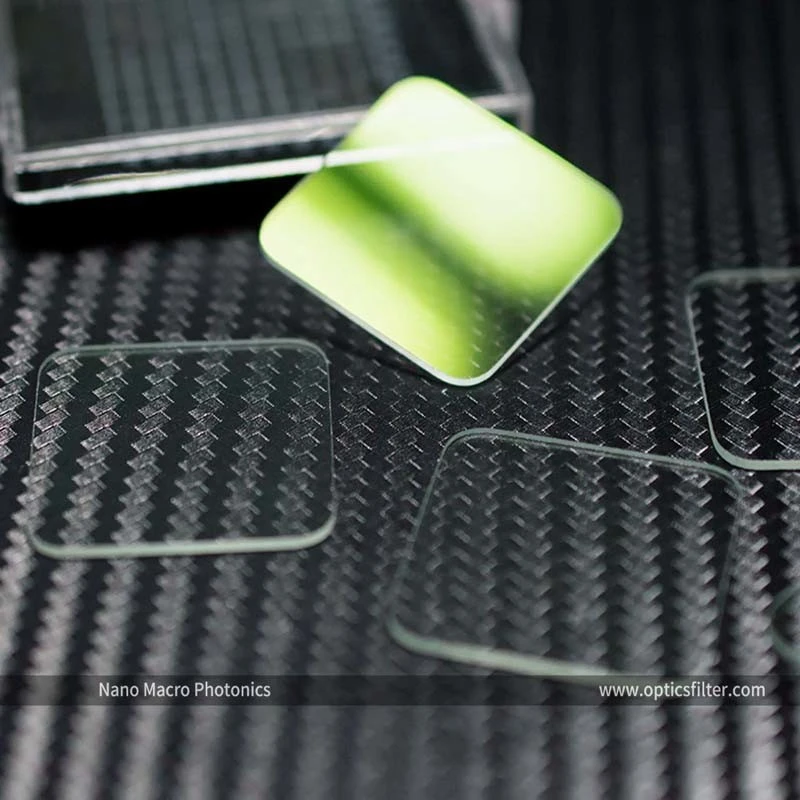

Ar Sapphire Quartz Glass Mirror Anti-Reflective Lens Optical Glass: an optical mirror made from Glass. Optical / electrical data: transmittance T>90%. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Transmittance | T>90% |
| Processed Shape | Lens |
| Model NO. | Anti-Reflective Glass |
| Transmission Range | 400-700nm or Custom |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Wavelength | 400-700nm or custom |
|---|---|
| Transmittance | T>90% or custom |
| Dimensions | Customized |
| Thickness | Customized |
| Angle of incidence | 0 degree |
| Surface Quality | 60-40 |
| Surface accuracy | <2 lambda |
| Material | Optical glass |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
