Application: Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware. Model: CY20240619-04.
Overview

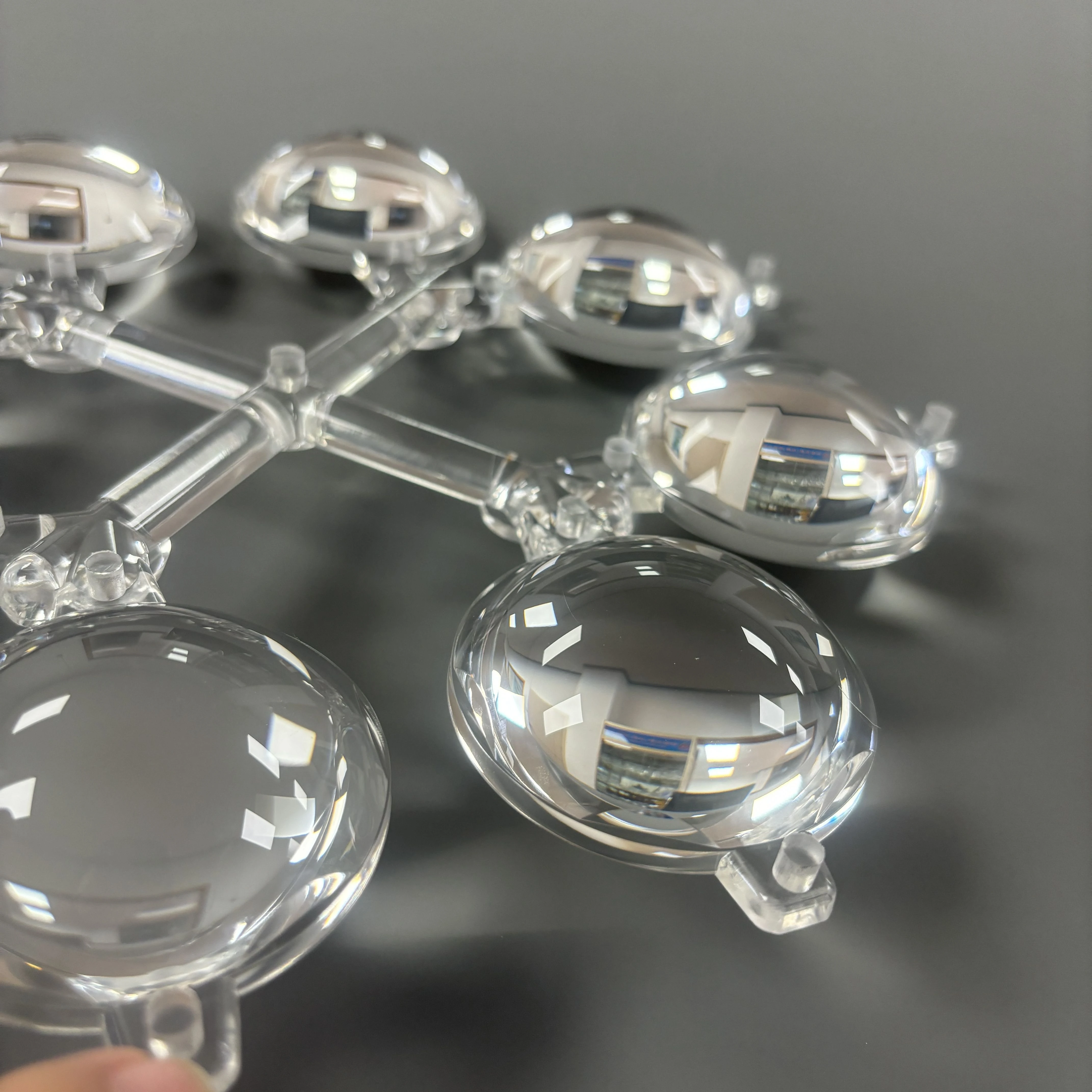

Aspherical Optical Lens, Glass/Fused Silica/Quartz/Infrared Material, Customized Polished: an optical lens. Typical applications: Car, Household Appliances, Furniture, Commodity and Electronic. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Application | Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware |
|---|---|
| Shaping Mode | Injection Mold |
| Model NO. | CY20240619-04 |
| Surface Finish Process | Polishing |
| Mold Cavity | Single Cavity |
| Plastic Material | Acrylic |
| Process Combination Type | Single-Process Mode |
| Runner | Cold Runner |
| Design Software | UG |
| Installation | Fixed |
| Standard | HASCO |
| Color | Customized |
| Mold Life | 200000shots |
| Mold Size | 400mm*400mm*320mm |
| Mold Building Lead Time | 30–70days |
| Supplier | Dongguan Chinyik Plastic and Hardware Products Factory |
What to specify when you request a quote
- Material — listed as “Acrylic”; name the glass or crystal.
- Geometry — listed as “400mm*400mm*320mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “Polishing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
