Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography, Astronomy, Laser, Communication. Model: RAY-OS096#.
Overview

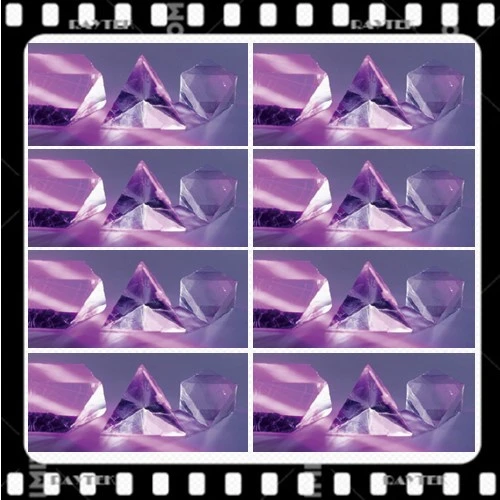

Barium Fluoride/Baf2 Laser Windows/Barium Fluoride Machining/Baf2 Optical Lens is an optical lens made from Barium Fluoride. Listed geometry: single-lens shape. Optical / electrical data: wavelength -1.65 X 10(-5), transmittance 80%-90%. Coating: Uncoating/Coating/Polishing. It is used in Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Barium Fluoride |
|---|---|
| Substrate | Barium Fluoride |
| Type | Flat Lens |
| Shape | Single-lens |
| Wavelength | -1.65 X 10(-5) |
| Transmittance | 80%-90% |
| Coating | Uncoating/Coating/Polishing |
| Usage | Lighting, Medical, Optical, Photography, Astronomy, Laser, Communication |
| Model NO. | RAY-OS096# |
| Lenses Color | Clear |
| Linear Thermal Expansion Coefficient | 18.1 |
| Thermal Conductivity | 11.72 W/M.K |
| Refractive Indices | 1.0/1.46861; 11.0/1.38660 |
| Abbe Number | Vd = 81.61 ; Ve = 81.02 |
| Melting Point | 1386 Celsuis Degrees |
| Products Name | Barium Fluoride(BaF2) |
| Thermal Properties | I |
| Mechanical Properties | I |
| Optical Properties | I |
| Main Applying Fields | A |
| pplying Fields | 1).Advanced thermal imaging |
| ain Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Items | Value |
|---|---|
| Melting Point(ºC) | 1386 |
| Specific heat capacity | 410 J / kg x K |
| Linear thermal expansion coefficientα(0 °C) (10-6/K) | 18.1 |
| Items | Value |
|---|---|
| Young's Modulus, E (25 °C)(Modulus of Elasticity) | 53.07GPa |
| Shear Modulus, G (Modulus of Rigidity) | 25.40GPa |
| Posssion's Ration u | 0.343 |
| Knoop Hardness HK | 82 |
| Mohs Hardness | 3.0 |
| Density (g/cm3) | 4.89 |
| Items | Value |
|---|---|
| Refractive indices | (at 22.6°C (± 0.3°C )) |
| 1.0 | 1.46861 |
| 2.0 | 1.46464 |
| 3.0 | 1.46119 |
| 4.0 | 1.45671 |
| 5.0 | 1.45103 |
| 6.0 | 1.44398 |
| 7.0 | 1.43561 |
| 8.0 | 1.42579 |
| 9.0 | 1.41435 |
| 10.0 | 1.40131 |
| 11.0 | 1.38660 |
| Abbe number | Vd = 81.61 ; Ve = 81.02 |
| Thermal coefficient of refractive index | 18.41810-6 |
| 0.5 | -1.65 x 10-5 |
| 5.0 | -1.60 x 10-5 |
What to specify when you request a quote
- Material — listed as “Barium Fluoride”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating/Coating/Polishing”; list the band and reflectance or transmission target.
