Product type: Aspheric Lens. Application: Lighting, Medical, Optical. Model: FSOL.
Overview

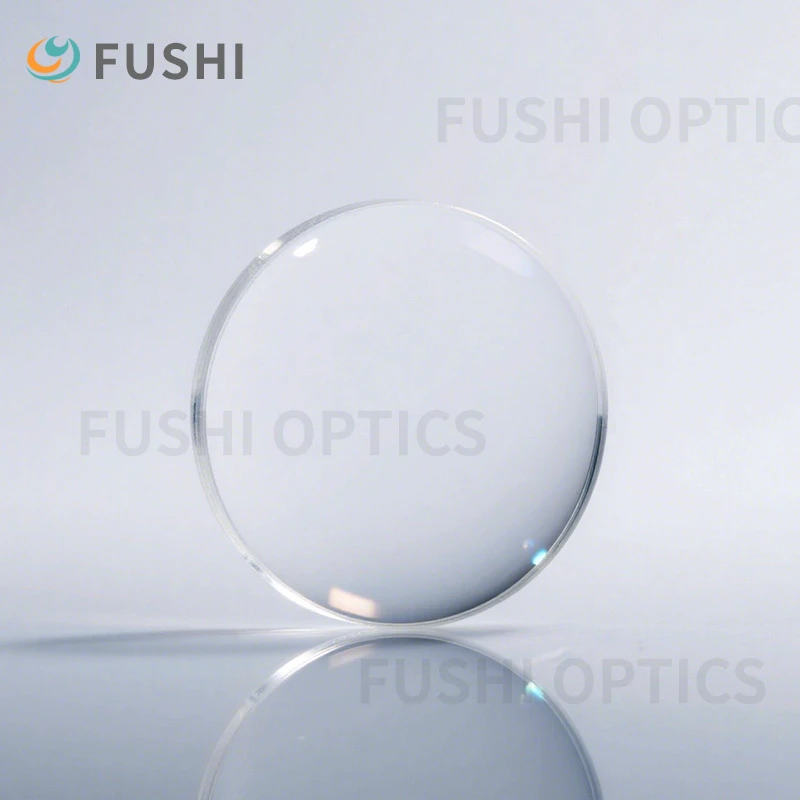

Beryllium Lens High Purity X-ray Optical Beryllium Lens for Synchrotron Radiation is a sight / viewing glass made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: HC; surface quality 20/10 or Better. Typical applications: Lighting, Medical and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Aspheric Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | HC |
| Surface Quality | 20/10 or Better |
| Clear Aperture | >90% |
| Usage | Lighting, Medical, Optical |
| Model NO. | FSOL |
| Lenses Color | Clear |
| Model No | Fsol-6 |
| Principle | Ar Coating |
| Supplier | Tianjin Fushi Optical Technology Co., Ltd. |
Technical data
| PRODUCT NAME | Aspheric Lens |
|---|---|
| PRODUCT SIZE | 0.1 – 600mm |
| EFFECTIVE FOCAL LENGTH | 250mm |
| DIAMETER TOLERANCE | +0.0/-0.1mm |
| TRANSMITTANCE | 95% |
| TYPE | Optical Lens |
What to specify when you request a quote
- Glass type and thickness — listed as “Optical Glass”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Single-lens”; send a drawing with outline, holes and edge finish.
