Product type: Aspheric Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Electronics, Detection. Model: RAY-XS185#.
Overview

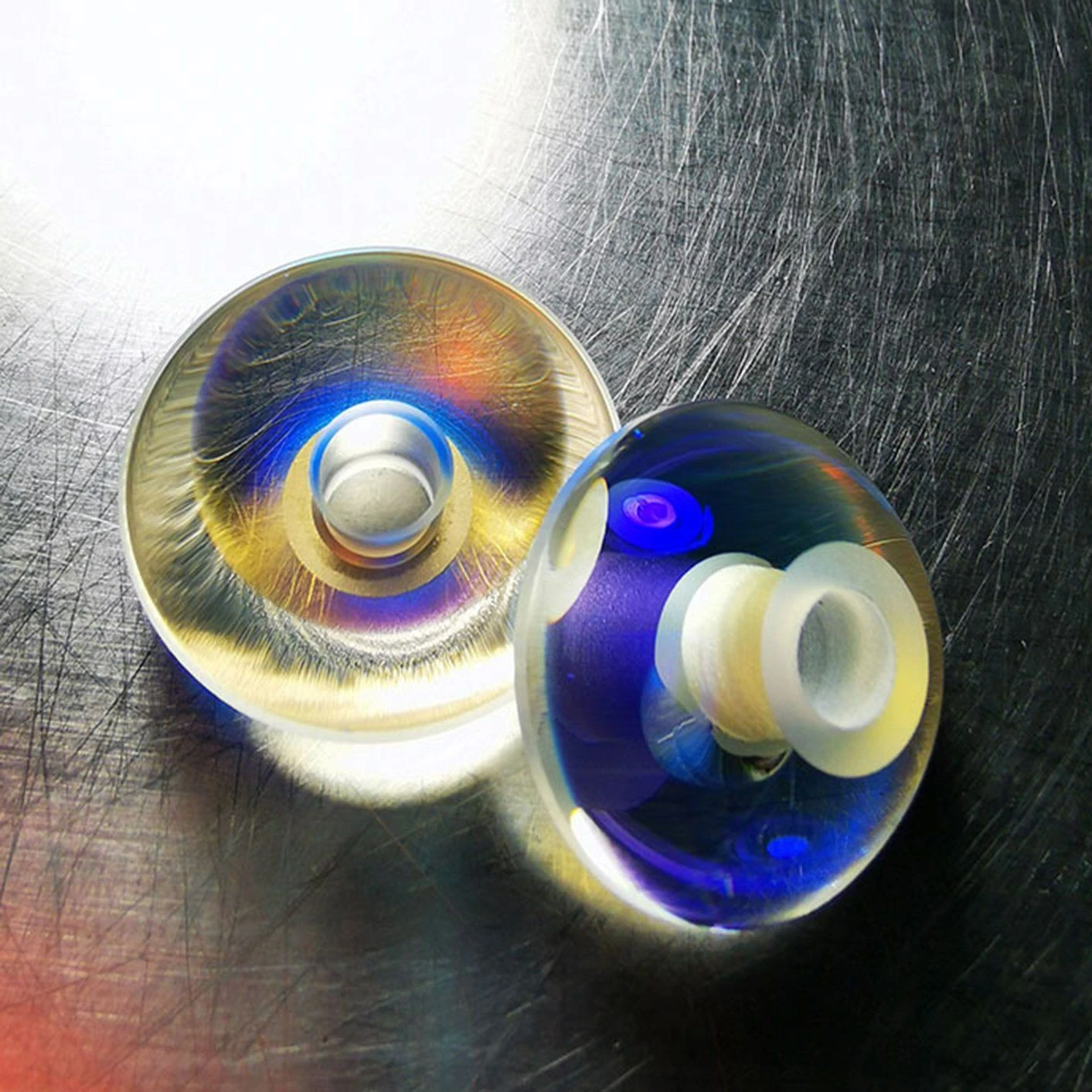

The Concentrating Glass/Diameter 25mm Focal Length 20mm Lens/Aspheric Lens/Optical Lens is supplied as an optical lens in Optical Glass (Schott B270 Ultra-White Glass substrate). Listed geometry: single-lens shape. Optical / electrical data: wavelength 400-700nm, transmittance >95%. Coating: Visible Coated; surface quality 80-50 Scratch-Dig or Custom. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Schott B270 Ultra-White Glass |
| Type | Aspheric Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Visible Coated |
| Surface Quality | 80-50 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Electronics, Detection |
| Model NO. | RAY-XS185# |
| Lenses Color | Clear |
| Ar Coating Wavelength | 400-700nm |
| Coating Type | Single-Layer Visible Mgf2 |
| Products Keywords | concentrating glass/Diameter 25mm focal length 20mm lens/aspheric lens/optical lens |
| Applications | 1. Concentrating light |
| Specifications | Lens type |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Lens type | Aspherical lens |
|---|---|
| Material | H-K9L or customized |
| Dimensions | 25mm or customized |
| Diameter | 25mm or customized |
| Focal length | 25mm or customized |
| Center thickness | 8.5mm or customized |
| Application | Collimated spotlight amplifying illumination |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “80-50 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Visible Coated”; list the band and reflectance or transmission target.
