Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0063.
Overview

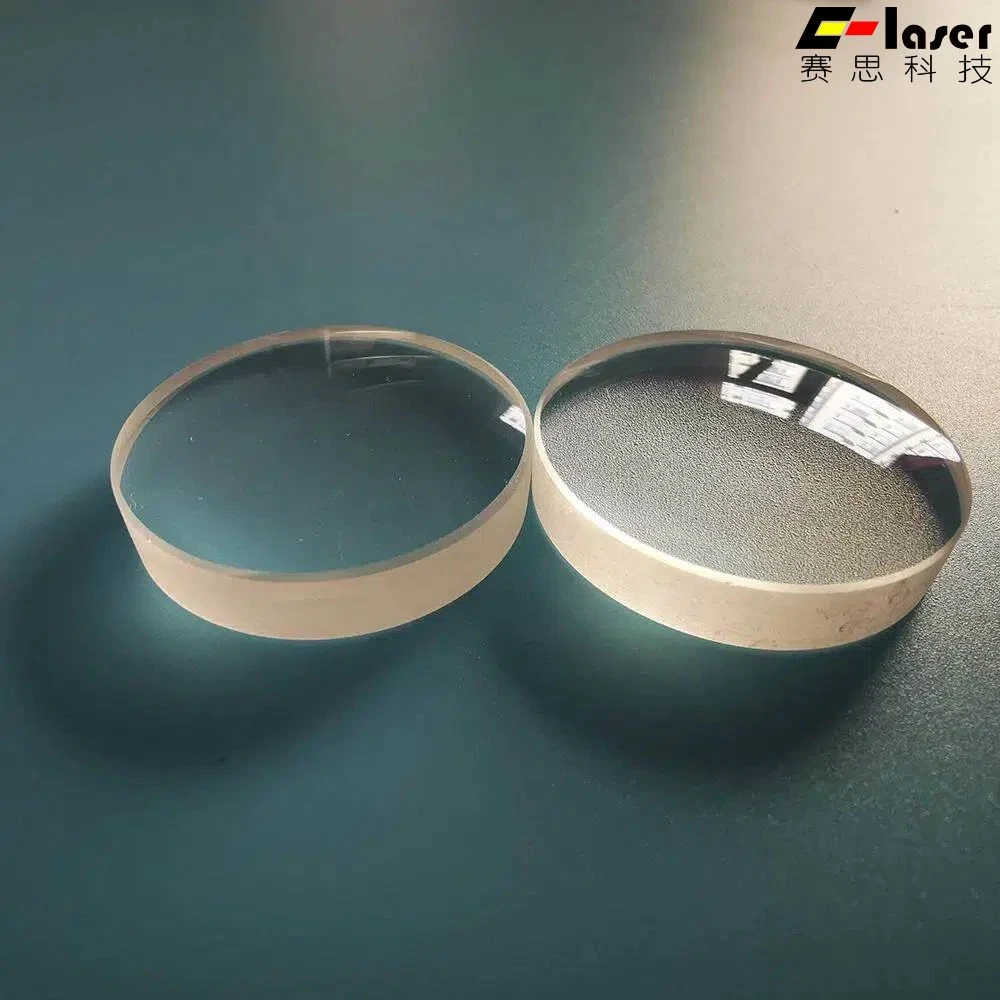

Convex Concave Optical K9 Glass Lens Spherical Plano-Concave Biconvex Types Infrared Telescopes is an optical lens in Optical Glass (Optical Glass, UV Fused Silica Substrate substrate). Listed geometry: diameter 1mm – 500mm (standard sizes available, custom dimensions supported), single-lens shape. Optical / electrical data: wavelength Uncoated, transmittance >95%. Supplied uncoated; surface quality 20-10 Scratch-Dig or Custom. It is used in Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass, UV Fused Silica Substrate |
| Type | Convex Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Uncoated |
| Surface Quality | 20-10 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0063 |
| Lenses Color | Clear |
| Ar Coating Wavelength | Uncoated |
| Coating Type | Uncoated |
| Diameter Range | 1mm – 500mm (standard sizes available, custom dimensions supported) |
| Optical Performance | High light transmittance (≥92% for visible light), low chromatic aberration, precise focal length |
| Tolerance | Dimensional tolerance ±0.02mm, focal length tolerance ±1% |
| Coating Option | Anti-reflective coating (AR coating), hydrophobic coating, or custom coating as per request |
| Industrial Equipment | Laser marking machines, cutting machines, engraving machines, optical sensors |
| Electronic Devices | Cameras, projectors, optical communication equipment, medical imaging devices |
| Automotive Industry | Vehicle-mounted cameras, HUD (Head-Up Display) systems |
| Aerospace | Optical detection equipment, satellite communication systems |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| production name | glass lens |
|---|---|
| material | optical glass |
| surface quality | 40/20 |
| diameter | customized |
| focal length | customized |
| center thickness | customized |
| edge thickness | customized |
| diameter tolerance | +/-0.0-0.1mm |
| application | optical equipment |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1mm – 500mm (standard sizes available, custom dimensions supported)”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
