Product type: Equilateral Prism. Application: Beam Dispersion, Beam Split. Model: DB-001.
Overview

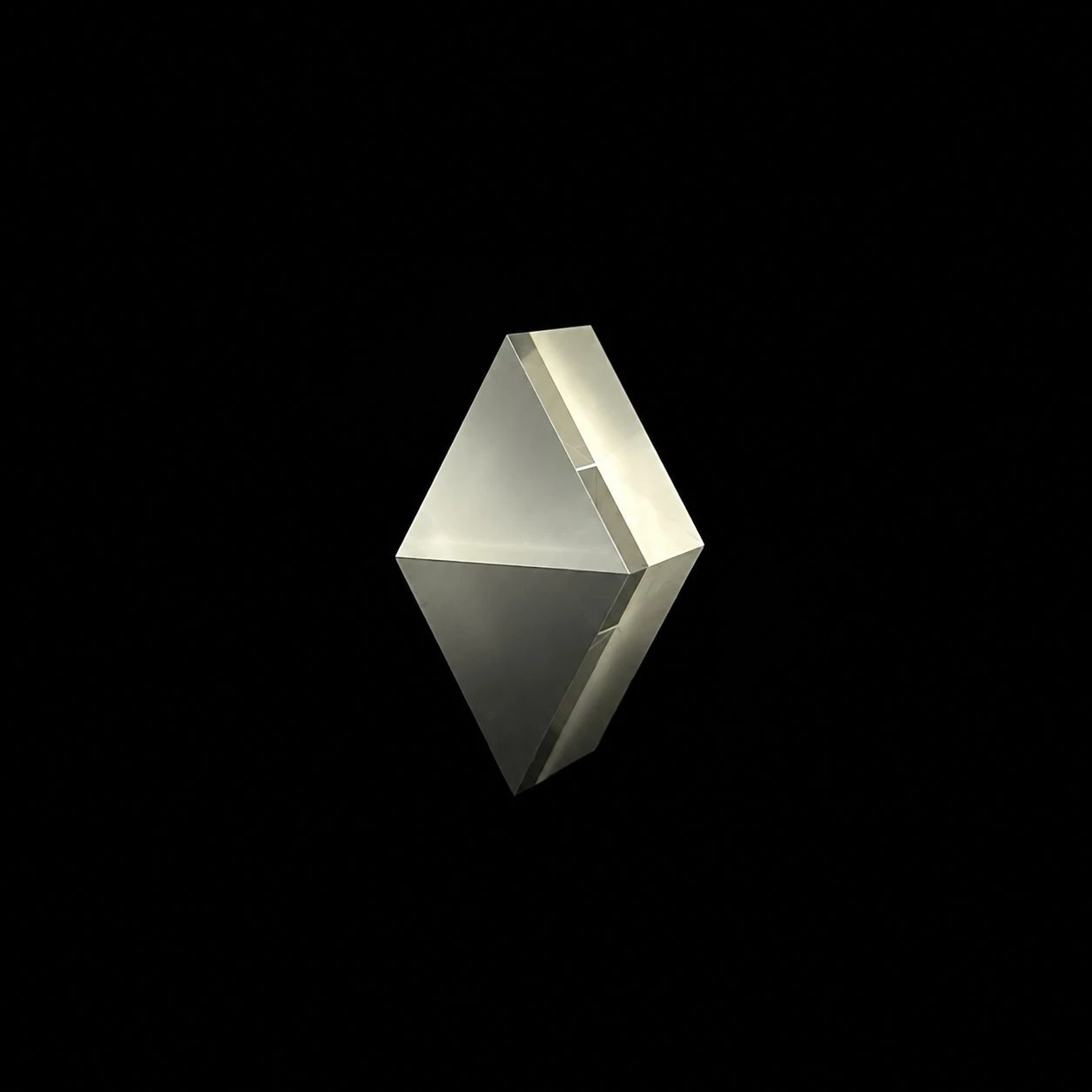

Custom Optical Equilateral Prism for Industrial Equipment: an optical prism made from Optical Glass / H-K9l (K9 Glass). Listed geometry: equilateral prism shape. Optical / electrical data: wavelength 400-700 Nm (Customization Available). It is used in Laser Optical System, Machine Vision and Optical Inst. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass / H-K9l (K9 Glass) |
|---|---|
| Type | Equilateral Prism |
| Shape | Equilateral Prism |
| Wavelength Range | 400-700 Nm (Customization Available) |
| Application | Laser Optical System, Machine Vision, Optical Inst |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | DB-001 |
| Custom Services | OEM / ODM Supported |
| Dimensional Precision | Customized |
| Product Type | Optical Prism / Beamsplitter Prism |
| Functions | Light Path Bending/Deflection |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Origin | Jiangsu, China | Product Name | Cube Beamsplitter Prism |
| Brand | Vantga | Product Type | Optical Prism / Beamsplitter Prism |
| Model No. | Pr-01 | Dimensional Accuracy | Customized |
| Customization Service | OEM / ODM Supported | Wavelength Range | 400–700nm (Custom Available) |
| Material | Optical Glass / H-K9L (K9 Glass) | Application | Laser Optical System, Machine Vision, Optical Instruments |
What to specify when you request a quote
- Material — listed as “Optical Glass / H-K9l (K9 Glass)”; name the glass or crystal.
- Geometry — listed as “Customized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
