Product type: Heating Type. Application: School, Hospital, Lab.
Overview

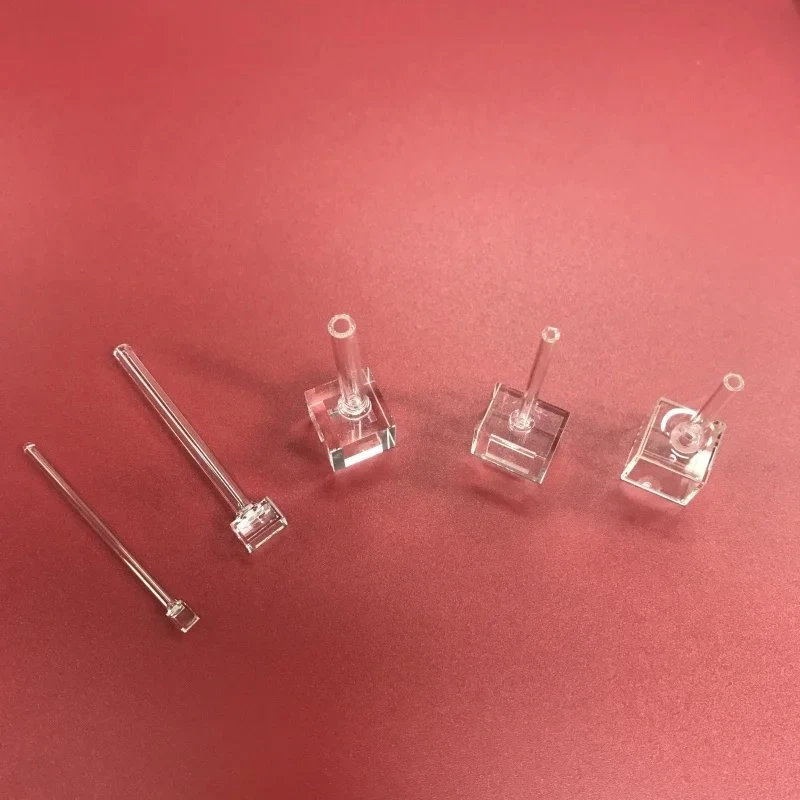

Customize Cubic Pyrex Glass Vapor Cuvette Cell with Stem: an optical cuvette made from Glass. Listed geometry: size Can Be Customized, cubic shape. Optical / electrical data: sheet resistance 500 Degree. Listed for School, Hospital and Lab applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Heating Type |
| Shape | Cubic |
| Size | Can Be Customized |
| Application | School, Hospital, Lab |
| Structure | Desktop |
| Made of | Quartz or Boro3.3 |
| Color | Clear |
| Keyword2 | Glass Cell for Atomic Chamber |
| Heat Resistance | 500 Degree |
| Standard Size | 5*5*5, 10*10*10, 20*20*20mm |
| Keyword | Glass Cuvette Cell |
| Kayword1 | Glass Vapor Cuvette Cell |
| ISO 9001 | 2015 and IATF 16949 |
| ISO9001 | 2015 Quality Management System |
| Period of validity | from2024.10.17 to 2027.10.25 |
| Date | MAY .08.2026 |
| Supplier | Lianyungang Highborn Technology Co., Ltd. |
Technical data
| Material | Code | Transmission On Empty Cell | Deviations In Matching |
| Optical Glass | G | at 350nm approx. 82% | at 350nm max. 0.5% |
| ES Quartz Glass | Q | at 200nm approx. 80% | at 200nm max. 0.5% |
| IR Quartz Glass | I | at 2730nm approx. 88% | at 2730nm max. 0.5% |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “Can Be Customized”; give dimensions and tolerances.
- Surface and edges — state edge finish and any frosted or coated areas.
- Cleanliness and packing — state cleanliness level and packing for lab use.
