Application: Home Appliance, Electronics & Instruments.
Overview

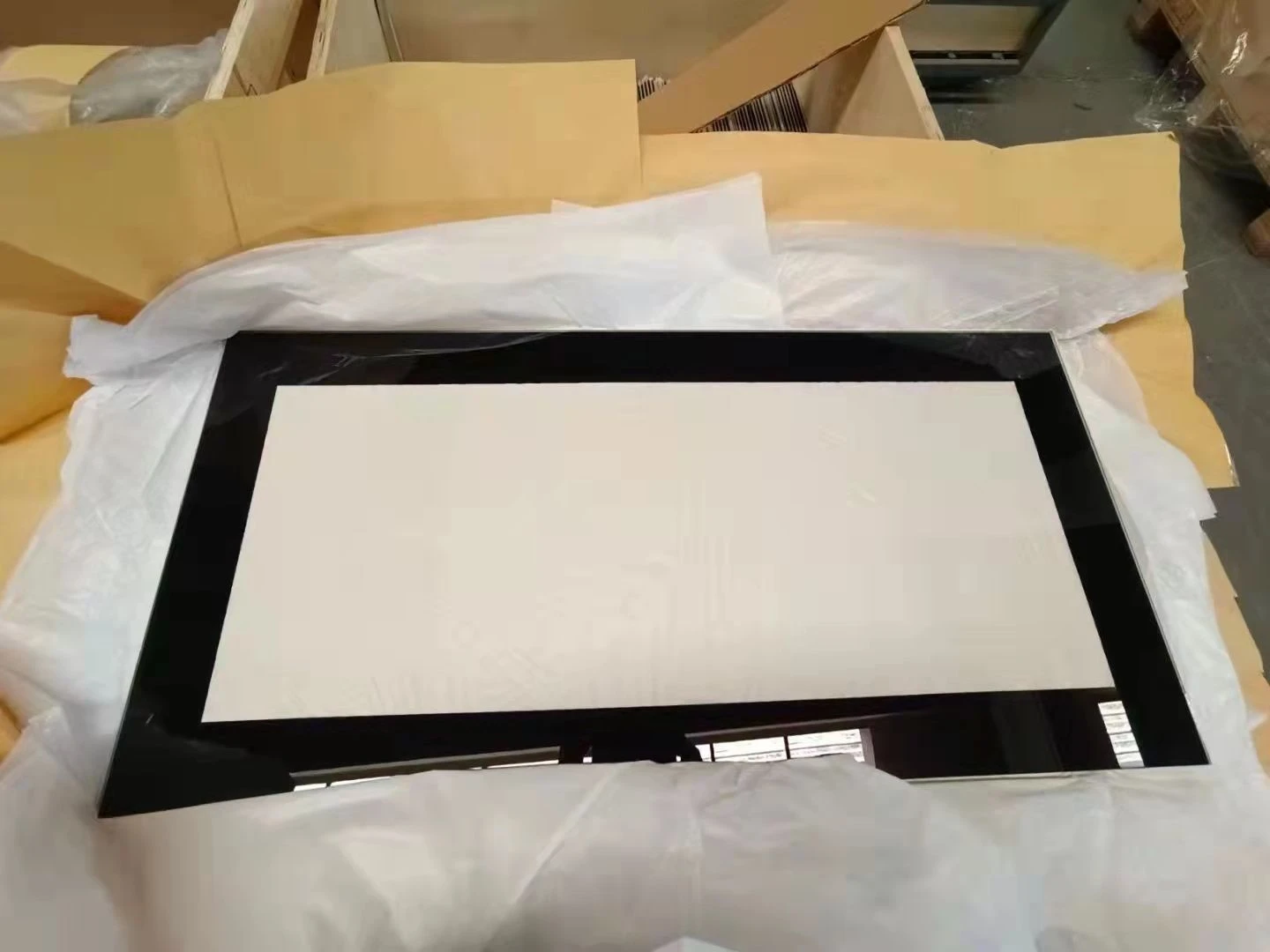

Customized 4mm Extra Clear Tempered Glass for Oven Cover Glass with High Temperature Silk Screen: an appliance glass. Listed geometry: size 3-100inch, thickness 0.7-12mm, flat shape. Flatness Conforming Article. Listed for Home Appliance and Electronics & Instruments applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Size | 3-100inch |
| Thickness | 0.7-12mm |
| Flatness | Conforming Article |
| Usage | Home Appliance, Electronics & Instruments |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | From 0.5mm to 12mm |
| Thickness of Curve Tempered Glass | From 0.5mm to 12mm |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Color | Customized |
| Edge Treatment | Round/Flat/Polished/Cut-Corner |
| Keyword | Toughened Glass |
| Keyword 1 | Glass Door |
| Keyword 2 | Window Glass |
| Max.size | 3660*2440mm |
| Max. Size | 3500*1600mm |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | Customized 4mm Extra Clear Tempered Glass for Oven cover Glass with High Temperature Silk Screen |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass |
| Size | Size can be customized |
| Thickness | 0.33-12mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
| Automatic Cutting Machine | Max.size:3660*2440mm |
|---|---|
| CNC | Max.size: 2300*1500mm |
| Edge Grinding & Chamfering | Max.size: 2400*1400mm |
| Automatic Production Line | Max.size :2200*1200mm |
| Thermal Tempered Furnace | Max. Size:3500*1600mm |
| Chemical Tempered Oven | Max. Size: 2000*1200mm |
| Coating Line | Max. Size:2400*1400mm |
| Dry Oven Line | Max. Size : 3500*1600mm |
| Packaging Line | Max. Size: 3500*1600mm |
| Automatic Cleaning Machine | Max. Size: 3500*1600mm |
What to specify when you request a quote
- Glass type and thickness — listed as “0.7-12mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “From 0.5mm to 12mm”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
