Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography. Model: OW.
Overview

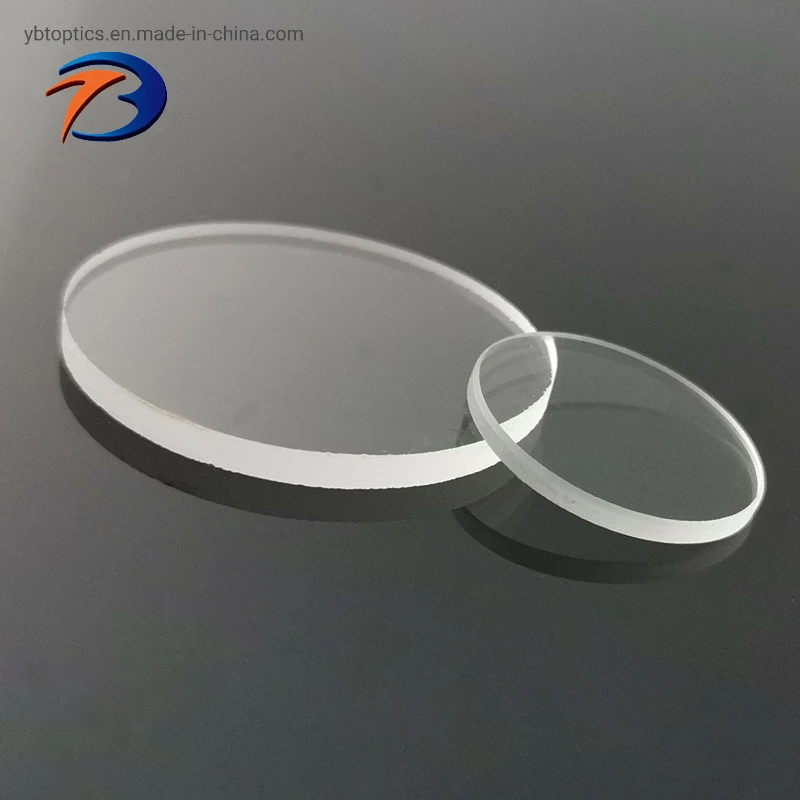

Customized Baf2 Windows IR &Uvu Barium Fluoride Scintillation Crystal Protective Optical Window/Lens: an optical lens made from Baf2. Listed geometry: flat shape. Optical / electrical data: transmittance >95%. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Baf2 |
|---|---|
| Type | Optical Windows |
| Shape | Flat |
| Transmittance | >95% |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | OW |
| Lenses Color | Clear |
| Note | These optical windows are very sensitive to thermal shock. |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter | 0.2-300mm |
|---|---|
| Thickness | 0.1-100mm |
| Dimension tolerance | +/-0.02mm |
| Surface quality (scratch & dig) | 20/10 or better |
| Clear aperture | >85%, >90% |
| Surface accuracy | λ/10 |
| Parallelism | +/-30'' |
| Bevel | 0.1~0.3mm x 45 degree |
| Coating | AR or Custom |
What to specify when you request a quote
- Material — listed as “Baf2”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
