Product type: Spherical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 86.
Overview

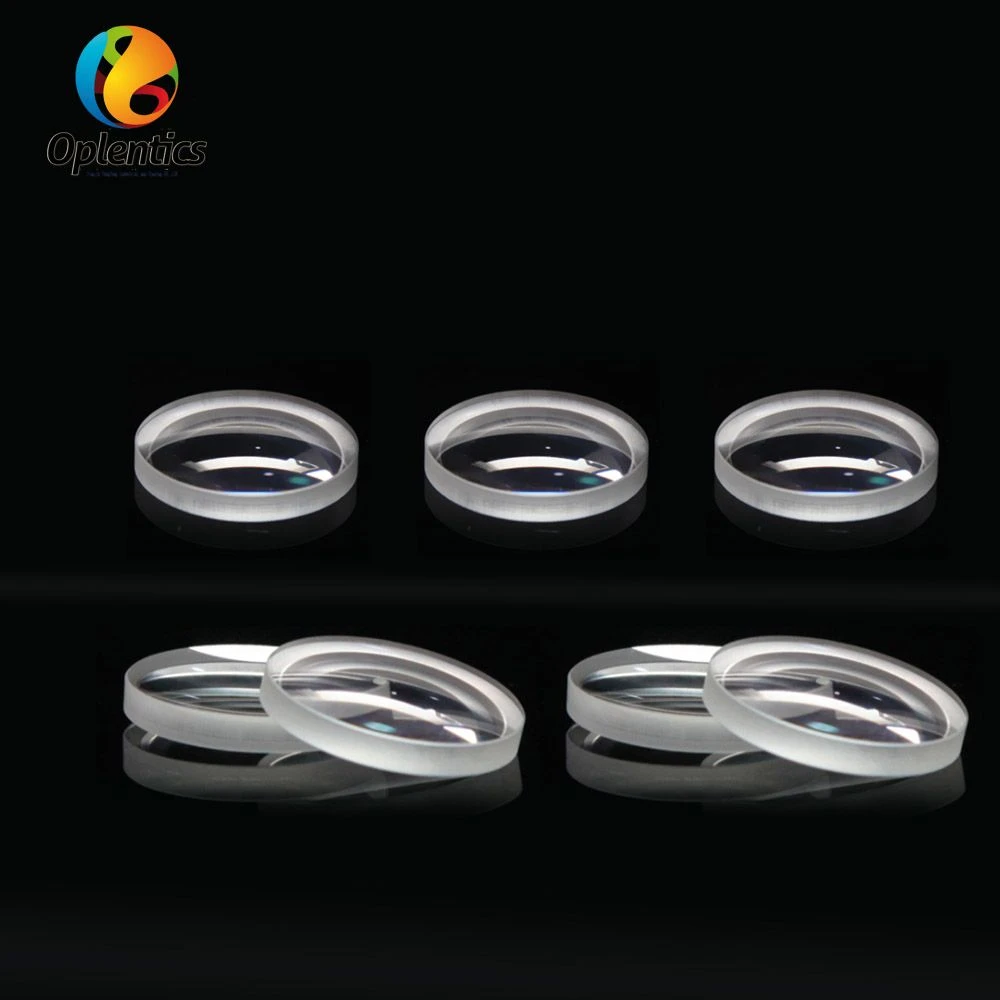

The Customized Design Imaging Light/Telescope/Medical Optical Glass Lens is supplied as an optical lens made from Optical Glass. Listed geometry: thickness as Required, spherical lenses shape. Optical / electrical data: wavelength 587.6nm, transmittance >95%. Coating: HMC; surface quality 60-40, 40-20, 20-10, 10-5. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Spherical Lenses |
| Shape | Spherical Lenses |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 60-40, 40-20, 20-10, 10-5 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 86 |
| Lenses Color | Clear |
| Focal Length Specification Wavelength | 587.6nm |
| Bevel | Protective Bevel as Needed |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Customized Design Imaging Light/Telescope/Medical Optical Glass Lens |
|---|---|
| Shape | Achromatic, Plano-convex,Plano-concave,Double-convex,Double-convex,Positive meniscus,Negative Menisus |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “587.6nm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40, 40-20, 20-10, 10-5”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Needed”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
