Model: 3 AF Coating Glass.
Overview

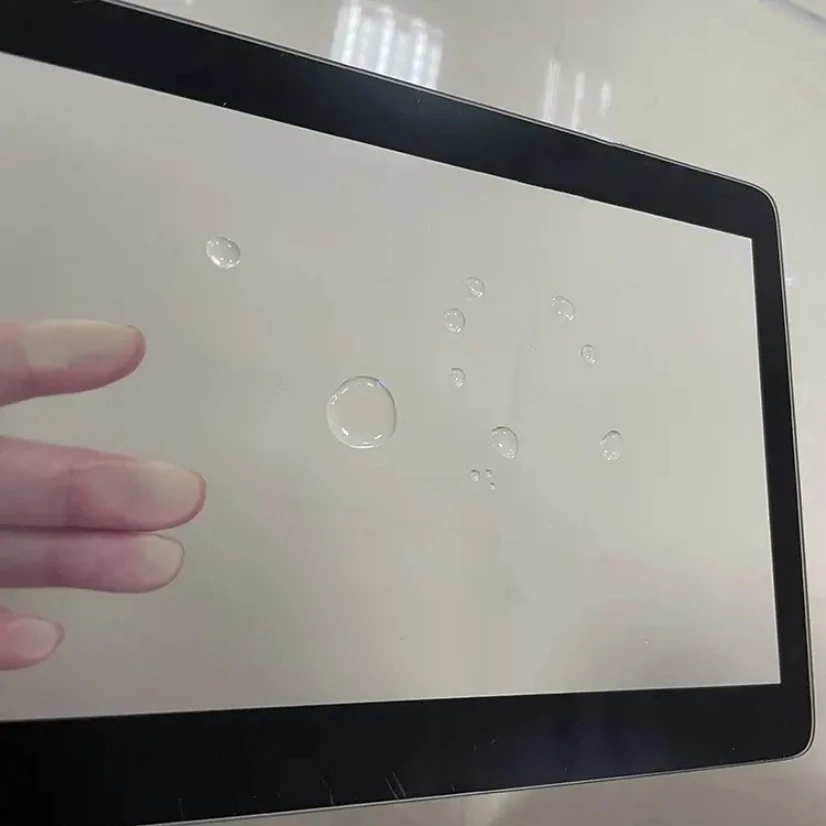

The Customized Environmental Adaptability Heat Radiation Barrier Glare Reduction Tempered Coated Sheet Glass for Sunroom is supplied as a building / safety glass. Listed geometry: size 2440×3660mm, 3300×6000mm (Customized), thickness 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm. Optical / electrical data: transmittance 30%-78%. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Thickness | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm |
|---|---|
| Model NO. | 3 AF Coating Glass |
| Coating Method | Offline Magnetron Sputtering |
| Max Size | 2440×3660mm, 3300×6000mm (Customized) |
| Base Glass | Clear / Ultra Clear / F-Green / F-Blue / Bronze |
| Visible Light Transmittance | 30%-78% |
| U-Value | 1.4-2.4 W/M²·K (Single Pane); ≥1.0 with Igu |
| Supplier | Huizhou Kariho Glass Co.,Ltd |
Technical data
| Item | Specification |
|---|---|
| Substrate | Ultra-clear float glass / chemically strengthened or tempered glass |
| Thickness | 0.33 / 0.55 / 0.7 / 1.1 / 2.0 / 3.0 / 5.0 / 6.0 mm |
| Coating options | AR (single / double side), AG, AF, AG+AF, AR+AF |
| AR performance | Reflection < 1% per surface; transmittance >= 95% (single side) / >= 97% (double side) |
| AG performance | Haze 1%-25% (customizable); glare reflection reduced up to 80% |
| AF performance | Water contact angle >= 110 degrees; oleophobic, easy to clean |
| Max size | Up to 2000 x 1500 mm (custom) |
| Compliance | RoHS, REACH, HF; ISO9001 / ISO14001 certified plant |
What to specify when you request a quote
- Glass type and thickness — listed as “3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “2440×3660mm, 3300×6000mm (Customized)”; send a drawing with outline, holes and edge finish.
