Application: park. Model: T01.
Overview

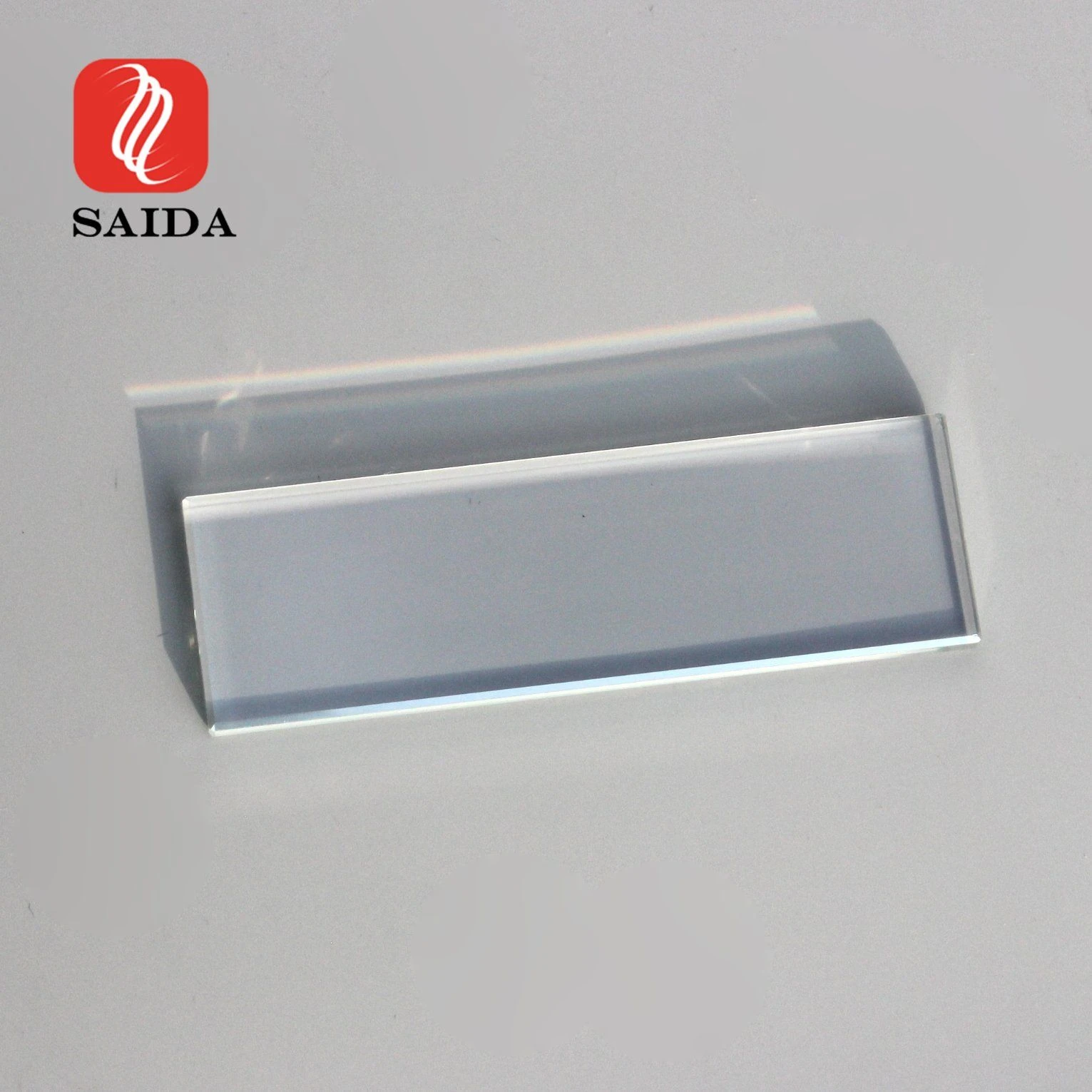

Customized Fto/ITO Glass 10-15ohm 0.7/1.1/1.6/2.2mm Thickness Glass for Lab Testing is an ITO-coated glass. Listed geometry: size 3-100inch, thickness 0.55-12mm. Temperature Pure White. Listed for park applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Size | 3-100inch |
|---|---|
| Thickness | 0.55-12mm |
| Application | park |
| Color Temperature | Pure White |
| Lamp Body Material | Glass |
| Model NO. | T01 |
| Power | 15w |
| No. of Light Source | 10-15PCS |
| IP Rating | IP44 |
| Input Voltage | 110v |
| Light Source | Without Light Source |
| LED Chips Brand | Epistar |
| Color | Customized |
| Edge Treatment | Flat/Round/Polished/Cut-Corner |
| Max.size | 3660*2440mm |
| Max. Size | 3500*1600mm |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | OEM Manufacturer for Various LED Lighting Step Tempered Safety Glass Panel |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass |
| Size | Size can be customized |
| Thickness | 0.33-12mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
| Automatic Cutting Machine | Max.size:3660*2440mm |
|---|---|
| CNC | Max.size: 2300*1500mm |
| Edge Grinding & Chamfering | Max.size: 2400*1400mm |
| Automatic Production Line | Max.size :2200*1200mm |
| Thermal Tempered Furnace | Max. Size:3500*1600mm |
| Chemical Tempered Oven | Max. Size: 2000*1200mm |
| Coating Line | Max. Size:2400*1400mm |
| Dry Oven Line | Max. Size : 3500*1600mm |
| Packaging Line | Max. Size: 3500*1600mm |
| Automatic Cleaning Machine | Max. Size: 3500*1600mm |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.55-12mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “3-100inch”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
