Product type: Quartz Plate. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OS-0130.
Overview

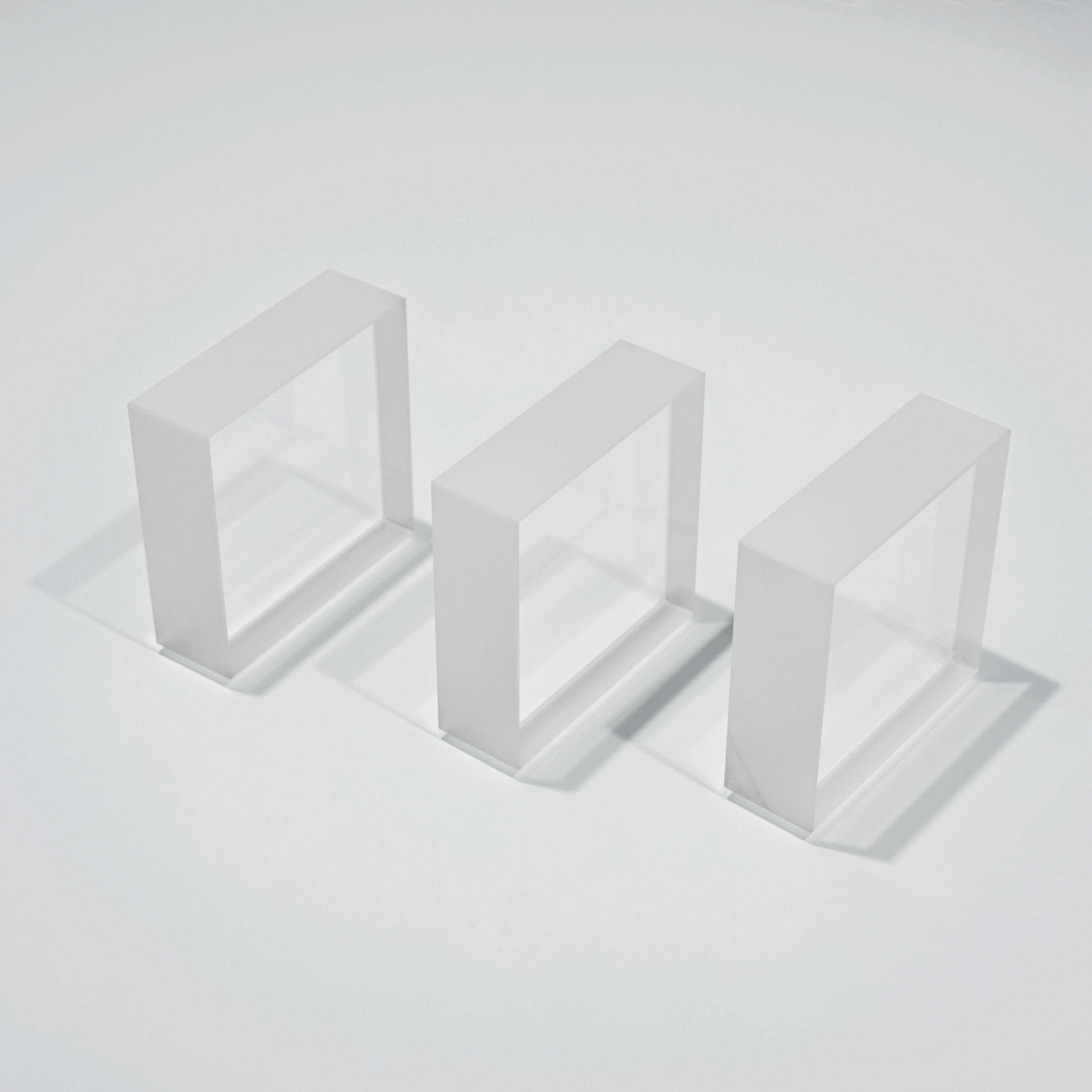

Customized Fused High Quality Quartz Glass Shaped Laser Drilling Piece Quartz Round Square Plate is a drilled / perforated glass plate made from Vad Fused Silica. Optical / electrical data: sheet resistance Solution. It is used in Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Substrate | Vad Fused Silica |
|---|---|
| Type | Quartz Plate |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OS-0130 |
| Oh | Is Less Than 50(Ppm) |
| Compressive Strength | 115 |
| Bending Strength | 7.0 |
| Torsional Rigidity | 3150 |
| Chemical resistance | Solution |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, S CHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Chemical resistance: | |||
| Solution | Treatment Temperature(ºC) | Treatment Time(Hour) | Loss(Mg/cm3) |
| H20 | 95 | 45 | 0.0001-0.0002 |
| 1/100 NHNO3 | 115 | 24 | 0.005-0.01 |
| 5% NaOH | 100 | 10 | 1.35 |
What to specify when you request a quote
- Material — listed as “Vad Fused Silica”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
