Product type: Convex Lens. Application: Medical, Optical, Photography. Model: yt169.
Overview

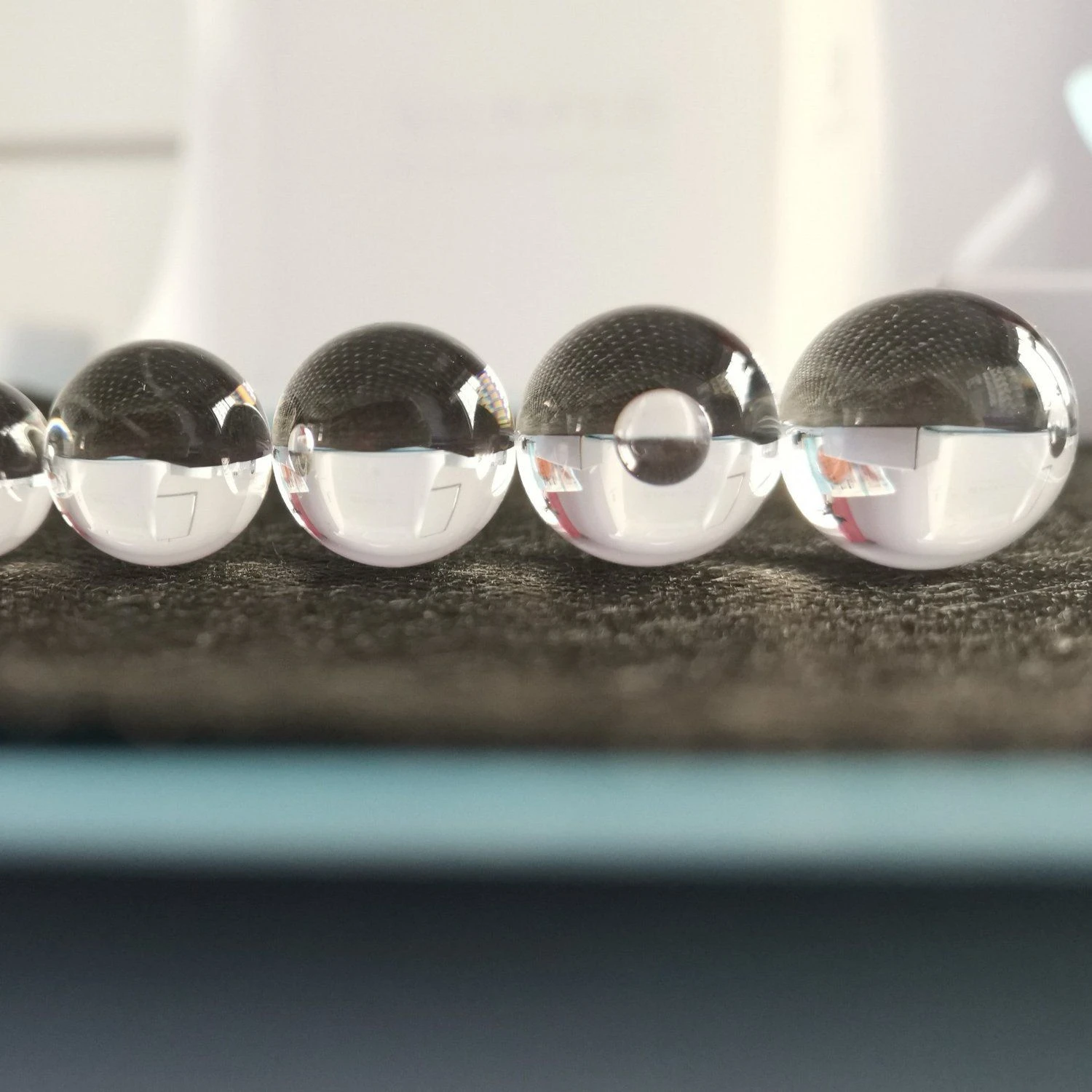

D1/3/5/7/12/16/18/20mm Bk7 (K9) Fused Silica Jgs1 Zk3 Zf6 Sapphire Optical Glass Ball Lens: an optical lens made from Optical Glass. Listed geometry: half ball shape. Optical / electrical data: transmittance >95%. Coating: HMC. It is used in Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Half Ball |
| Transmittance | >95% |
| Coating | HMC |
| Usage | Medical, Optical, Photography |
| Model NO. | yt169 |
| Lenses Color | Clear |
| Sapphire Ball | D1/2/3/4/5/6/8/9/12/16/20mm |
| ZK3 ball | D4.27/4.32/4.78mm |
| H-ZF6 ball | D5.334/5.34/6.215mm |
| Supplier | Changchun Yutai Optics Co., Ltd. |
Technical data
| Material | K9,BK7,b270,fused silica,sapphire,znse,caf2, glass |
|---|---|
| Dimension | 0.5-100mm |
| Dimension tolerance | +/-0.05mm |
| S/D | 60/40 |
| C.A. | 90% |
| Centration | 3 arc min |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
