Product type: All Types. Application: Lighting, Medical, Optical, Photography, Laser System. Model: RAY-OM113#.
Overview

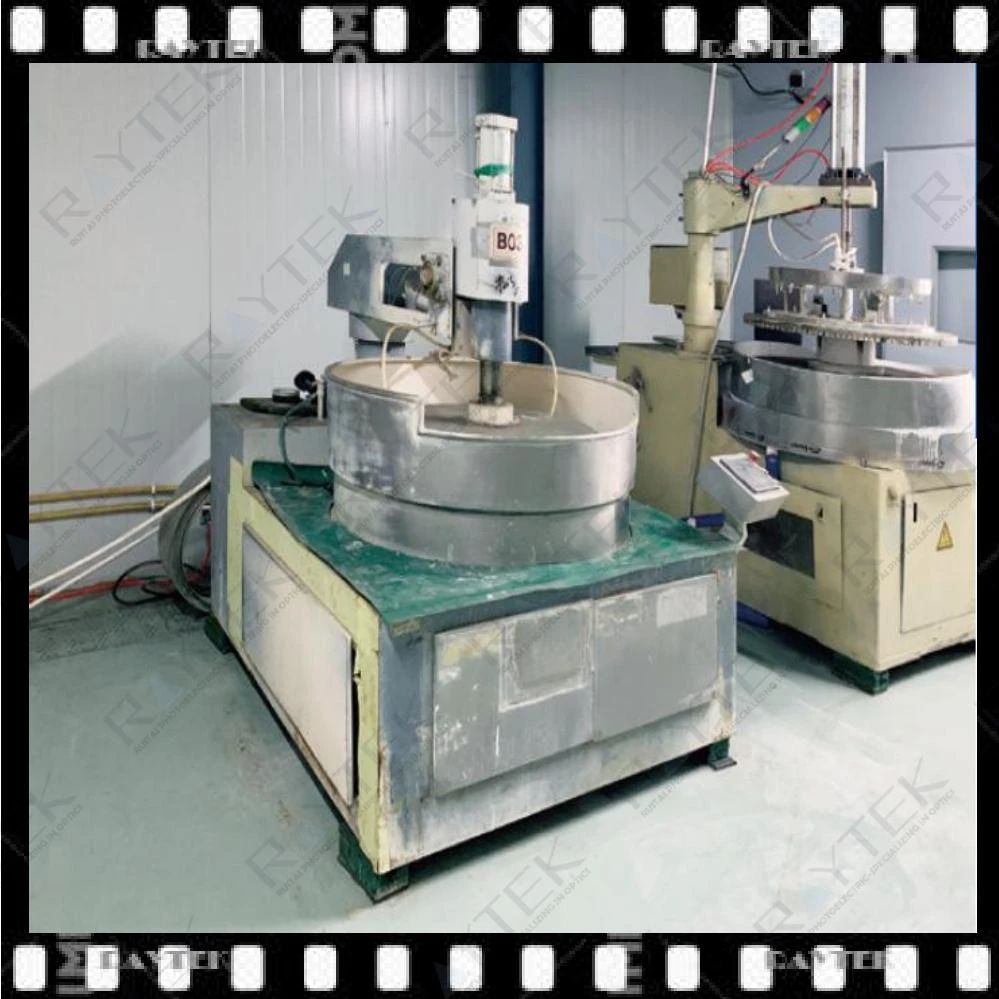

The Double-Sided Grinding & Polishing/Optical Glass Double-Sided Polishing/CNC Polishing Service is supplied as a grinding / polishing service made from Optical Glass/Fused Silica/Borosillice Glass/CaF2. Listed geometry: all shapes shape. Optical / electrical data: transmittance as Per The Demand. Coating: Polishing/Coating/Uncoating, etc; surface quality 60-40 to 10-5 Scratch-Dig. Typical applications: Lighting, Medical, Optical, Photography and Laser System. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass/Fused Silica/Borosillice Glass/CaF2 |
|---|---|
| Type | All Types |
| Shape | All Shapes |
| Transmittance | as Per The Demand |
| Coating | Polishing/Coating/Uncoating, etc |
| Surface Quality | 60-40 to 10-5 Scratch-Dig |
| Usage | Lighting, Medical, Optical, Photography, Laser System |
| Model NO. | RAY-OM113# |
| Lenses Color | Clear |
| Polishing Materials Type I | Quartz/Silicon/Sapphire Ingot/Graphite |
| Polishing Materials Type II | Fused Slica/Sic/CaF2/Baf2/Zns/Znse |
| Max.Polishing Size | D800mm |
| Min.Polishing Thickness | 0.1mm |
| Polishing Surface Roughness | 5 a RMS |
| Alignment | Less Than 1 Arc Second |
| Bow / Warp | 5um |
| Main Processing Technical Capacity Data | Specifications |
| ain Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Specifications | Manufacturing Limits |
|---|---|
| Processing Workcrafts | Lapping & Double-side grinding & polishing |
| Diameter | ≤800mm (± 0.010mm) |
| Length | ≤800mm (± 0.010mm) |
| Width | ≤800mm (± 0.010mm) |
| Thickness | ≥0.1mm (± 0.003mm) |
| Bow / Warp | 5um |
| Surface Roughness | ≥ 5 Å rms |
| Parallelism | ≤ 1 arc second |
| Surface Quality | 60-40 to 10-5 |
| Reflected Wavefront Error (RWE) – before coating | ≥ 1/10 wave over 25mm sub-aperture |
| Transmitted Wavefront Error (TWE) – before coating | ≥ 1/20 wave over clear aperture |
| Materials For Cutting | fused silica / fused quartz/Silicon/CaF2/BaF2/ZnS/ZnSe |
| Materials For CNC Machining | all glass types (results vary by material) |
What to specify when you request a quote
- Material — listed as “Optical Glass/Fused Silica/Borosillice Glass/CaF2”; name the material to be processed.
- Drawing and tolerances — listed as “D800mm”; send a drawing with tolerances.
- Surface requirements — listed as “60-40 to 10-5 Scratch-Dig”; state the surface finish and flatness required.
- Quantity — give prototype and production quantities.
