Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography, Laser System. Model: RAY-OC108#.
Overview

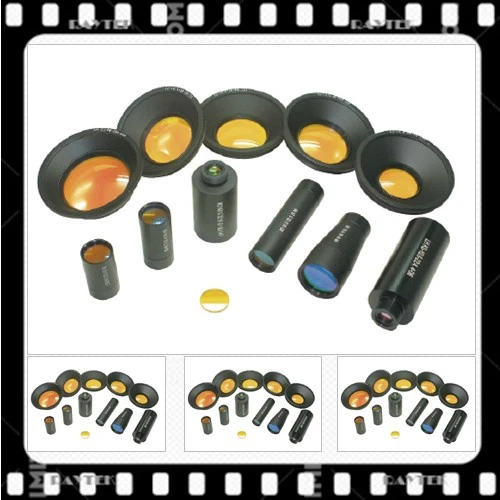

The F-Theta Lenses/Optical F-Theta Lens/F-Theta Optical Lens/Optical Lens/F-Theta Lens is supplied as an optical lens in Optical Glass (Fused Silica substrate). Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: Polishing/Coating/Uncoating, etc. Listed for Lighting, Medical, Optical, Photography and Laser System applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Fused Silica |
| Type | Flat Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Polishing/Coating/Uncoating, etc |
| Usage | Lighting, Medical, Optical, Photography, Laser System |
| Model NO. | RAY-OC108# |
| Lenses Color | Clear |
| Focal Length (mm) | 100/160/210/254/330 |
| Working Distance (mm) | 136/199/252/296/296 |
| Scanning Range (mm2) | 70*70-220*220mm |
| Products Name | F |
| Main Characteristics | 1) .Various focal length specifications are available; |
| Main Technical Data | 1). |
| Main Applying Fields | A |
| pplying Fields | 1).UV marking machines |
| ain Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Applying | UV Marking Machines | ||||
| Model | F-theta Lens | ||||
| Materials(Substrates) | Fused Silica | ||||
| Focal length (mm) | 100 | 160 | 210 | 254 | 330 |
| Working distance (mm) | 136 | 199 | 252 | 296 | 296 |
| Scanning range (mm2) | 70×70 | 100×100 | 140×140 | 170×170 | 220×220 |
| Scanning angle | ±25° | ±25° | ±25° | ±25° | ±25° |
| Incident beam diameter (mm) | 12 | 12 | 12 | 12 | 12 |
| Dispersion Garden(um) | 8 | 9 | 12 | 14 | 14 |
| Galvanometer position M1/M2 (mm) | 16/16 | 16/16 | 16/16 | 16/16 | 16/16 |
| Threaded connection | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 |
| Applying | CO2 Marking Machines | ||||||||
| Model | F-theta Lens, Scan lens, Beam Expanders | ||||||||
| Materials(Substrates) | CVD ZnSe | ||||||||
| Focal length (mm) | 73 | 100 | 160 | 230 | 254 | 300 | 330 | 450 | 590/560 |
| Working distance (mm) | 48 | 36/48 | 36/48 | 48 | 48 | 48 | 48 | 48/56/60 | 48/60 |
| Scanning range (mm2) | 50×50 | 70×70 | 110×110 | 140×140 | 175×175 | 210×210 | 250×250 | 300×300 | 400×400 |
| Optical aperture | 53 | 32/43 | 32/43 | 43 | 43 | 43 | 43 | 43/53/56 | 43/56 |
| Dispersion Garden(um) | 0.15 | 0.20 | 0.20 | 0.35 | 0.40 | 0.45 | 0.50 | 0.60 | 0.70 |
| Incident beam diameter (mm) | <16 | <8/<16 | <8/<16 | <16 | <16 | <16 | <16 | <16/<22 | <16/<22 |
| Threaded connection | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 | M85x1 |
| Input aperture | 12 | 12 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Output aperture | 14 | 14 | 19 | 19 | 19 | 19 | 19 | 28 | 28 |
| Multiple | 1.5 | 2 | 2.5 | 3 | 4 | 4 | 5 | 6 | 8 |
| Shell size | φ25×22.94 | φ25×35 | φ27×40.76 | φ27×49.58 | φ25×70.62 | φ27×70.62 | φ27×87.21 | φ37×97.18 | φ37×68.94 |
| Threaded connection | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 | M22x0.75 |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “100/160/210/254/330”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polishing/Coating/Uncoating, etc”; list the band and reflectance or transmission target.
