Model: CB01-2250.
Overview

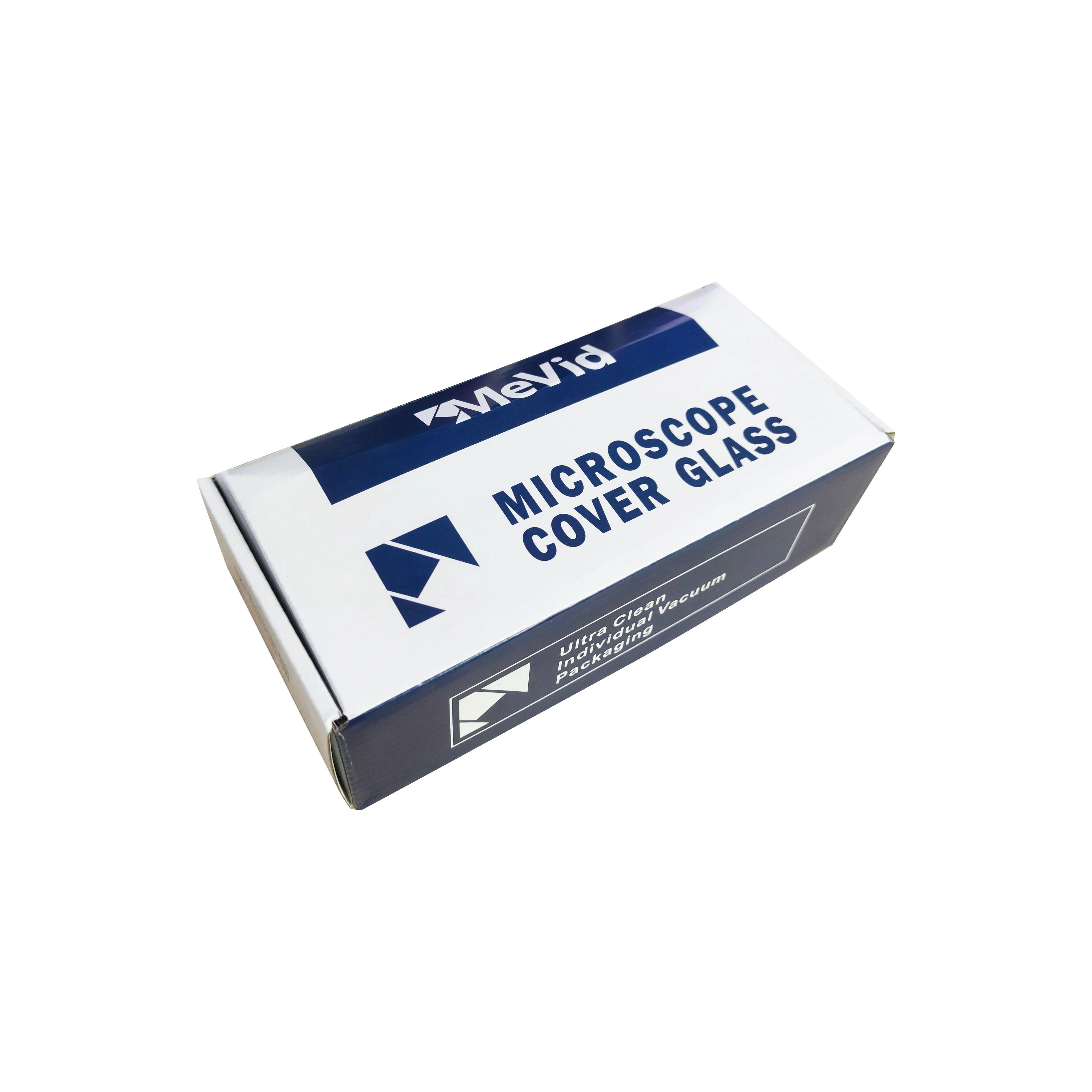

Factory Supplies Lab Microscope Cover Glass0.13-0.16mm Thickness: a microscope slide / cover slip made from Glass. Listed geometry: thickness 0.1mm, square shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Square |
| Thickness | 0.1mm |
| Quantity | 100PCS/Box |
| Model NO. | CB01-2250 |
| Supplier | Nantong Mevid Life Scientific Co., Ltd. |
Technical data
| Specification (mm) | Thickness #1.0 0.13mm-0.16mm | Thickness #1.5 0.16mm-0.19mm | Thickness #2.0 0.19mm-0.22mm | Packaging |
| 18×18 | CE21-1818 | CE22-1818 | CE23-1818 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 20×20 | CE21-2020 | CE22-2020 | CE23-2020 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 22×22 | CE21-2222 | CE22-2222 | CE23-2222 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 24×24 | CE21-2424 | CE22-2424 | CE23-2424 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 22×32 | CE21-2232 | CE22-2232 | CE23-2232 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 24×32 | CE21-2432 | CE22-2432 | CE23-2432 | 100 pcs/box, 1000 pcs /middle box 50000 pcs/carton |
| 22×40 | CE21-2240 | CE22-2240 | CE23-2240 | 100 pcs/box, 1000 pcs /middle box 40000 pcs/carton |
| 24×40 | CE21-2440 | CE22-2440 | CE23-2440 | 100 pcs/box, 1000 pcs /middle box 40000 pcs/carton |
| 22×50 | CE21-2250 | CE22-2250 | CE23-2250 | 100 pcs/box, 1000 pcs /middle box 30000 pcs/carton |
| 24×50 | CE21-2450 | CE22-2450 | CE23-2450 | 100 pcs/box, 1000 pcs /middle box 30000 pcs/carton |
| 24×55 | CE21-2455 | CE22-2455 | CE23-2455 | 100 pcs/box, 1000 pcs /middle box 30000 pcs/carton |
| 22×60 | CE21-2260 | CE22-2260 | CE23-2260 | 100 pcs/box, 1000 pcs /middle box 30000 pcs/carton |
| 24×60 | CE21-2460 | CE22-2460 | CE23-2460 | 100 pcs/box, 1000 pcs /middle box 30000 pcs/carton |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “0.1mm”; give dimensions and tolerances.
- Surface and edges — state edge finish and any frosted or coated areas.
- Cleanliness and packing — state cleanliness level and packing for lab use.
