Product type: Flat Lens. Application: Thermal Image. Model: SRT029.
Overview

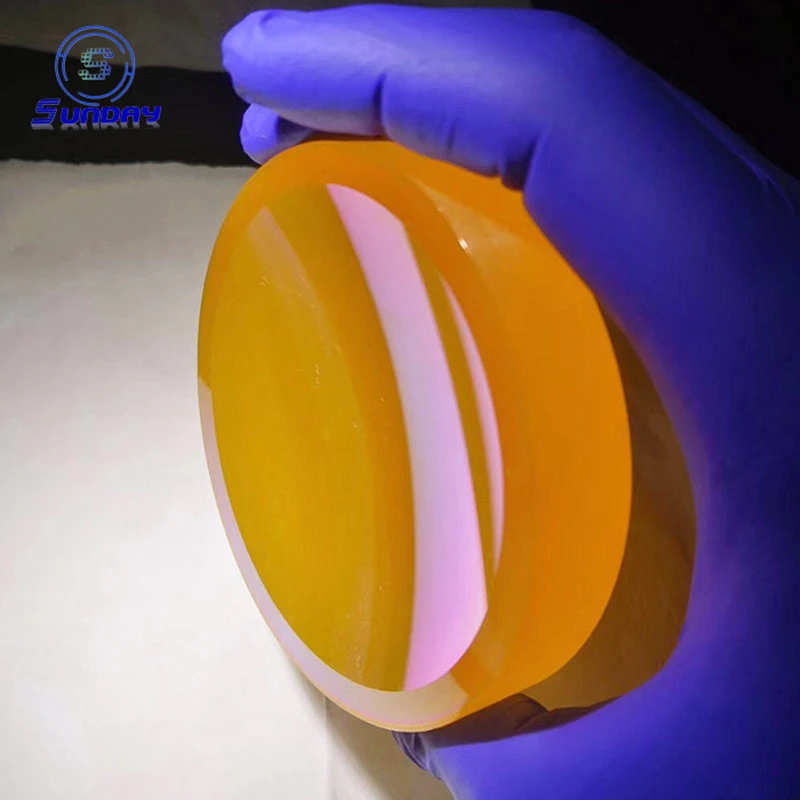

Fixed Price PVD Diameter 12/18/19/20mm Znse Focus Laser Lens is an optical lens made from USA Znse. Listed geometry: window shape. Optical / electrical data: transmittance >95%. Coating: HC; surface quality 60-40; flatness 1/4 Lambda. Typical applications: Thermal Image. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | USA Znse |
|---|---|
| Type | Flat Lens |
| Shape | Window |
| Transmittance | >95% |
| Coating | HC |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Usage | Thermal Image |
| Model NO. | SRT029 |
| Tolerance | +/-0.05mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Diameter | 5mm to 250mm |
|---|---|
| Thickness | 0.5-40mm |
| Material | Import USA ZnSe, China ZnSe |
| Surface Quality | 40-20 standard |
| Flatness | 1/10 lambda |
| Chamfer | 0.25mmx45degree |
| Focal Length Tol. | +/-1% |
| Coating Wavelength | 8um-12um |
| Clear Aperture | >85% of diameter |
| Design Wavelength | 10.6um |
What to specify when you request a quote
- Material — listed as “USA Znse”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HC”; list the band and reflectance or transmission target.
