Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OW-0013.
Overview

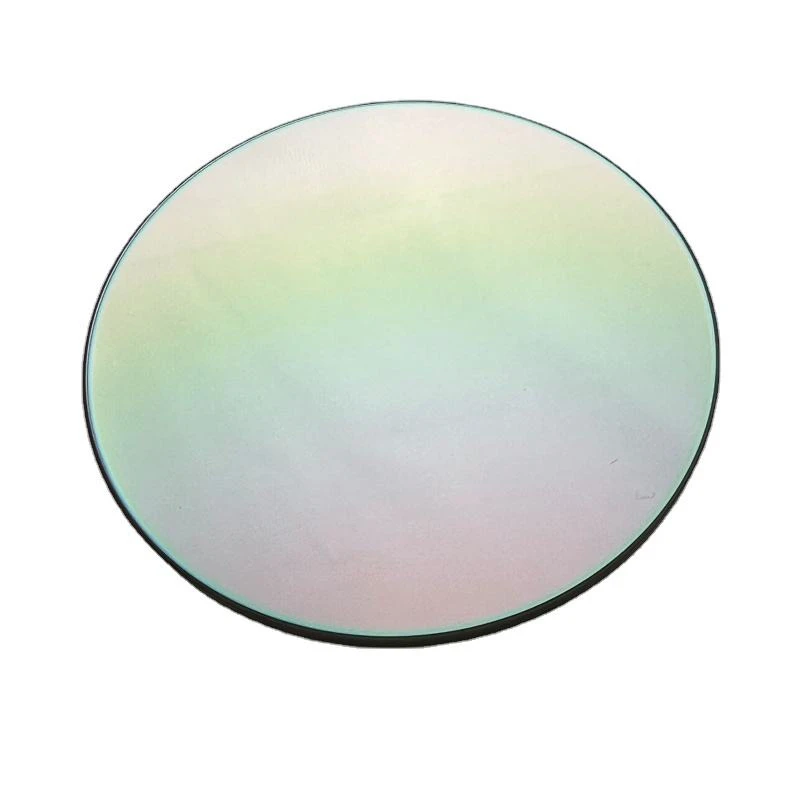

Germanium Infrared Optical Ge Windows Lens Custom Optics Substrate is an optical lens in Optical Glass (Optical Grade Germanium substrate). Listed geometry: thickness 2.0mm, 3.0mm, 5.0mm or Custom Manufacturing, single-lens shape. Optical / electrical data: wavelength 3-12um, transmittance 80%-90%. Supplied uncoated; surface quality 40-20 Scratch-Dig or Custom Manufacturing. It is used in Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Grade Germanium |
| Type | Optical Windows |
| Shape | Single-lens |
| Thickness | 2.0mm, 3.0mm, 5.0mm or Custom Manufacturing |
| Transmittance | 80%-90% |
| Coating | Uncoating |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OW-0013 |
| Lenses Color | Gray |
| Coating Wavelength Range | 3-12um |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| No. | Products Category | Products Name | Machining Status |
| 1 | CVD ZnS | CVD ZnS Windows | BlanksPolishedCoatedAssembly |
| 2 | CVD ZnS Spheric Lens | ||
| 3 | CVD ZnS Wedge Windows | ||
| 4 | CVD ZnS Prisms | ||
| 5 | CVD ZnS Pecial-shaped Optical Lens | ||
| 6 | CVD ZnS Coating AR | ||
| 7 | CVD ZnS Coating BBAR | ||
| 8 | CVD ZnSe | CVD ZnSe Windows | BlanksPolishedCoatedAssembly |
| 9 | CVD ZnSe Spheric Lens | ||
| 10 | CVD ZnSe Wedge Windows | ||
| 11 | CVD ZnSe Prisms | ||
| 12 | CVD ZnSe Pecial-shaped Optical Lens | ||
| 13 | CVD ZnSe Coating AR | ||
| 14 | CVD ZnSe Coating BBAR | ||
| 15 | CVD ZnSe 10.6um Beam Windows | ||
| 16 | CVD ZnSe 10.6um Beam Combiners | ||
| 17 | CVD Znse 10.6um Beam Expanders | ||
| 18 | Germanium(GE) | Germanium Windows | BlanksPolishedCoatedAssembly |
| 19 | Germanium Spheric Lens | ||
| 20 | Germanium Wedge Windows | ||
| 21 | Germanium Prisms | ||
| 22 | Germanium Pecial-shaped Optical Lens | ||
| 23 | Germanium Coating AR | ||
| 24 | Germanium Coating BBAR | ||
| 25 | Silicon(Si) | Silicon Windows | BlanksPolishedCoatedAssembly |
| 26 | Silicon Spheric Lens | ||
| 27 | Silicon Wedge Windows | ||
| 28 | SiliconPrisms | ||
| 29 | Silicon Pecial-shaped Optical Lens | ||
| 30 | Silicon Coating AR | ||
| 31 | Silicon Coating BBAR |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating”; list the band and reflectance or transmission target.
