Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-OW045#.
Overview

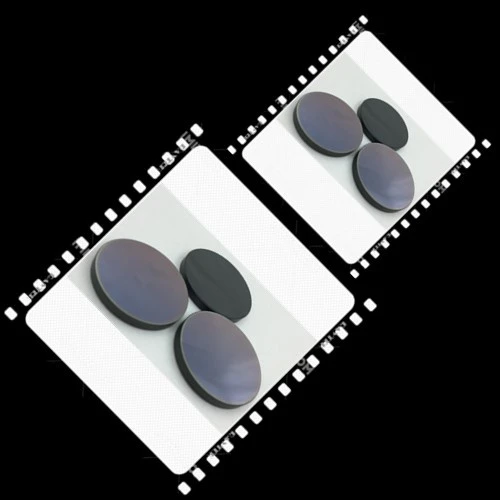

Germanium Optical Windows/Germanium Windows/Optcial Germanium Window/Germanium Lens: an optical lens in Optical Glass (Optical Grade Germanium substrate). Listed geometry: thickness 2.0mm, 3.0mm, 5.0mm or Custom Manufacturing, single-lens shape. Optical / electrical data: wavelength 3-12um, transmittance 80%-90%. Coating: Broadband Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Grade Germanium |
| Type | Optical Windows |
| Shape | Single-lens |
| Thickness | 2.0mm, 3.0mm, 5.0mm or Custom Manufacturing |
| Transmittance | 80%-90% |
| Coating | Broadband Coating |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-OW045# |
| Lenses Color | Gray |
| Coating Wavelength Range | 3-12um |
| Products Name | Germanium Optical Windows |
| Lens Substrates | Optical Grade Germanium |
| Optional I | Optical Grade Germanium |
| Optional II | Equivalent Optical Grade Germanium |
| Applying Fields I | Application of low power CO2 laser in laser. |
| Applying Fields II | Application of CO2 laser cavity imaging |
| Main Optical Tech Specification | Lens Shape |
| GEW | +0.0/-0.1 mm |
| Popular Physical Size Specification | Basic Data |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | Optical Grade Germaniumfrom CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent Optical Grade GermaniumMade in China, C-laser own brands |
| Applying Fields I: | Application of low power CO2 laser in laser. |
|---|---|
| Applying Fields II: | Application of CO2 laser cavity imaging |
| ***** |
| Lens Shape | Optical Parallel Window | Surface AccuracyIrregularity | – |
| Lens Material | Optical GradeGermanium | Diameter Tolerance | – |
| Damage Threshold | – | Dia. Tolerance | 10GE20: ±0.2 mmGEW: +0.0/-0.1 mm |
| Thickness Tolerance | – | Parallelism | – |
| Surface Quality | 40-20cratch-dig | Clear Aperture | 10GE20: central 85% of diameterGEW: central 90% of diameter |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Basic Data”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Broadband Coating”; list the band and reflectance or transmission target.
