Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: JS-CK-002.
Overview

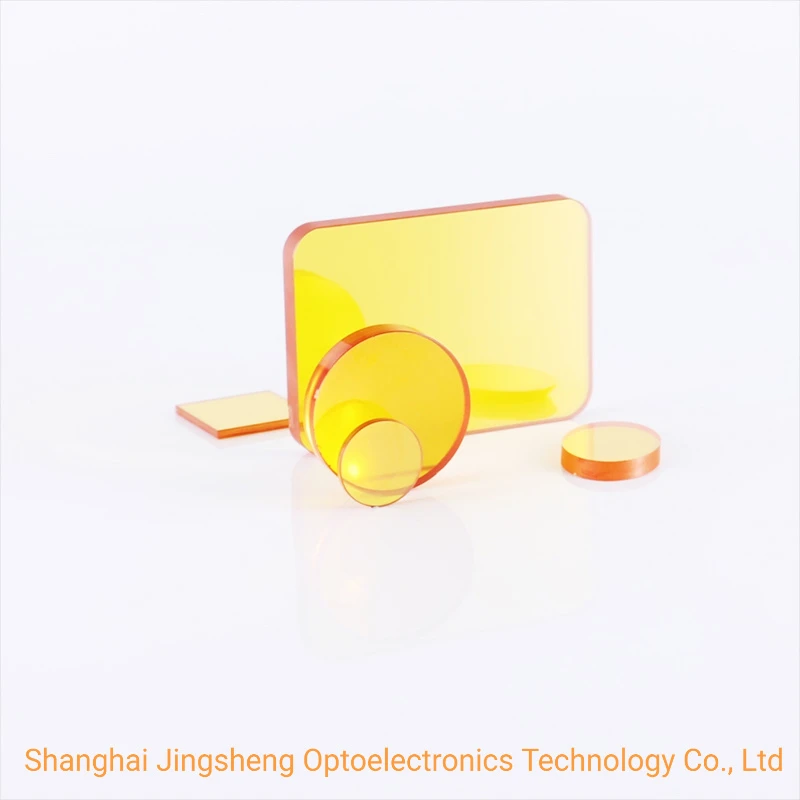

High Precision Optical Znse Laser IR Protective Wafer/Window Lens for Laser System is a sapphire / specialty wafer made from Glass. Optical / electrical data: wavelength 640-1100nm. Surface quality 60-40 40-20. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | 640-1100nm |
| Surface Quality | 60-40 40-20 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | JS-CK-002 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| T Peak | T>85% |
| Use | Optical and Photographic Instrument |
| Production Process | Why choose us? |
| Packaging& Shipping | Inner packing——-special protective packing for optical products. |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| CWL | 349nm 350nm 365nm |
|---|---|
| CWL Tolerance | +/-2nm-5nm |
| FWHM | 10nm-20nm |
| FWHM Tolerance | +/-3nm-10nm |
| Transmission | >20% |
| Material | optical glass, UVF, Sapphire etc. |
| Surface Quality | 40/20 ~ 80/50 or Better |
| Thickness | 0.5-5mm |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — listed as “60-40 40-20”; specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
