Model: tk518.
Overview

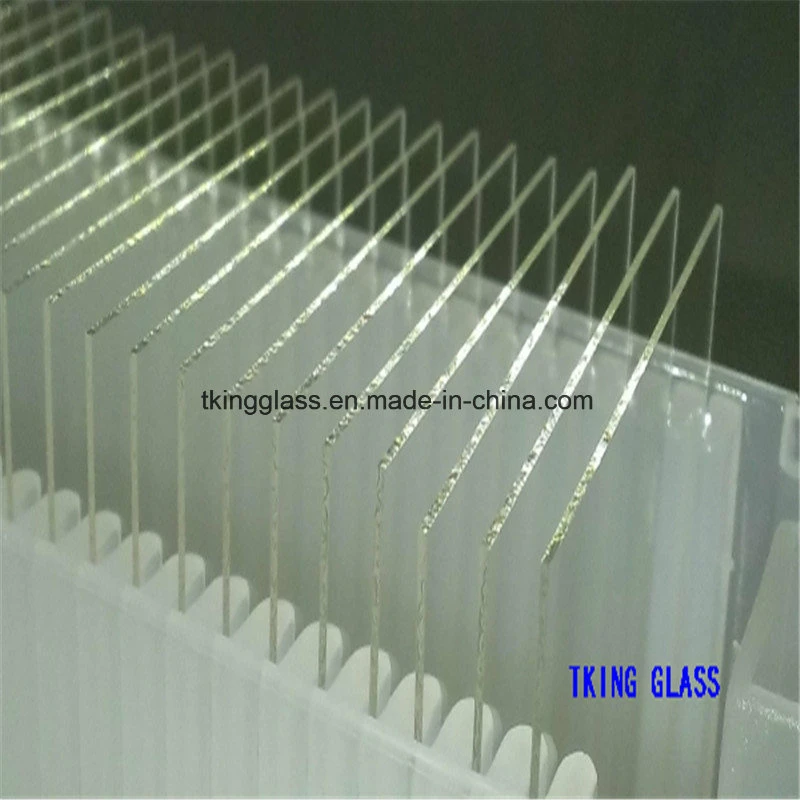

High Purity Quartz Glass Plates for Sight Glass is a sight / viewing glass. Temperature 550degree C. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Parallelism | 0.01mm |
|---|---|
| Model NO. | tk518 |
| Thickness 1 | 0.1mm 0.2mm 0.3mm 0.4mm |
| Thickess 2 | 0.5mm 0.7mm 1.1mm |
| Temperature | 550degree C |
| Surface Clearning | 60/40 |
| Surface Roughness | 1nm |
| Supplier | Xinyu Xu Tking Glass Co., Ltd. |
What to specify when you request a quote
- Glass type and thickness — listed as “0.1mm 0.2mm 0.3mm 0.4mm”; name the glass and thickness.
- Temperature and pressure — listed as “550degree C”; give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — send a drawing with outline, holes and edge finish.
Engineering guides for this part
For material grades and coating options, see Custom Borosilicate Glass Sheets Cut to Size: Precision and Performance. How parts like this are machined and finished is covered in How Borosilicate Glass Is Sandblasted for Matte Surface Processing. For an application example, read Quartz Glass Windows for High-Temperature Appliance Modules. Before sending a drawing, check Thermal Conductivity of Quartz Glass & Fused Quartz: A Process Guide. A related standard product is Infrared Windows.
FAQ
What should I include in a quote request? expand_more
Include glass type and thickness, temperature and pressure, strengthening and safety and outline and edges, plus quantity and a drawing if the part is custom.
