Product type: Longpass Filters. Application: Optical.
Overview

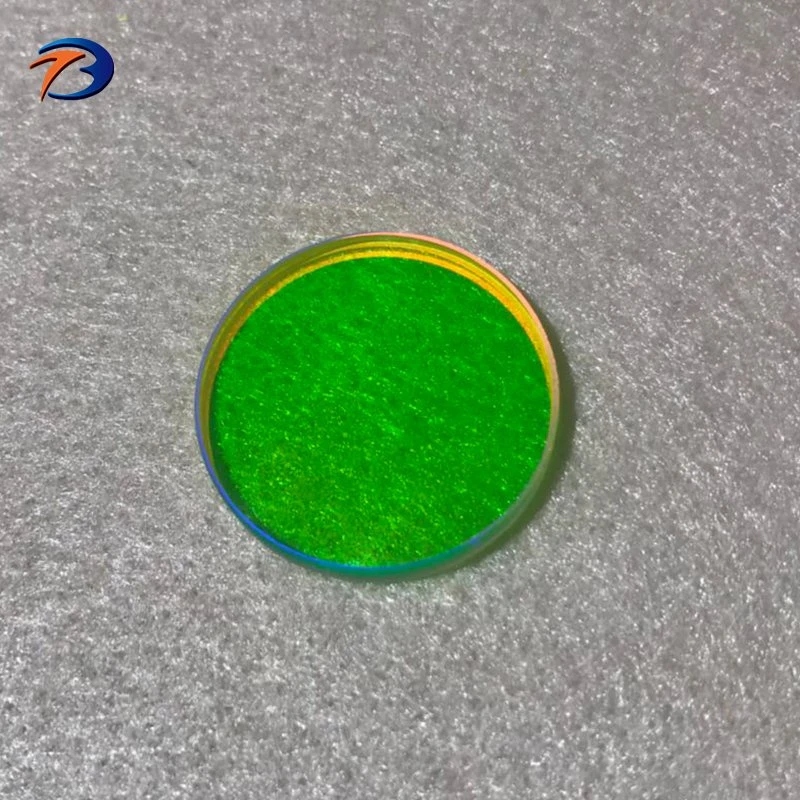

The High Quality Borosilicate Coating Bandpass Dichroic Optical Filter is supplied as a bandpass filter made from Glass. Listed geometry: thickness 0.3-50mm. Typical applications: Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Longpass Filters |
| Shape | Customized |
| Usage | Optical |
| Thickness Range | 0.3-50mm |
| Color | All Sorts of Color |
| Principle | Cut-off Filter |
| Angle of incidence | 0deg;/45deg; |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter | Custom made |
|---|---|
| Dimensional Tolerance | ±0.25mm |
| Thickness Tolerance | ±0.2mm |
| Surface quality (scratch & dig) | 60/40, 40/20 or better |
| Substrate | Colored Glass |
| Coating | Custom |
| Type | Bandpass Filter |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0deg;/45deg;”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “0.3-50mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
