Application: Building, Furniture, Home Appliance, Electronics & Instruments. Model: T01.
Overview

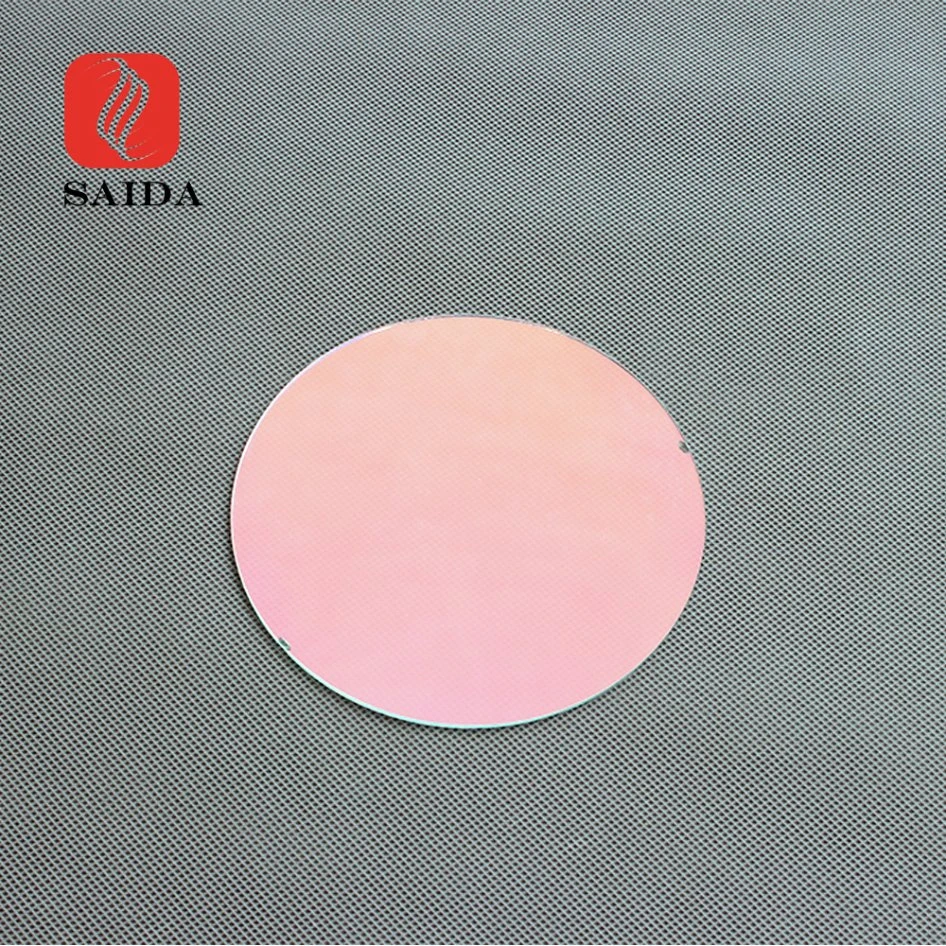

The High Quality Custom Silk Screen Color Tempered Glass Special Optical Glass is supplied as a printed / strengthened cover glass. Listed geometry: size Customized According to Customer Drawings, thickness 1.0mm/2.0mm/3mm etc, flat shape. Optical / electrical data: transmittance >91%. Flatness High Class. Typical applications: Building, Furniture, Home Appliance and Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Transmittance | >91% |
| Flatness | High Class |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments |
| Model NO. | T01 |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5-19mm |
| Thickness of Curve Tempered Glass | 2-12mm |
| Fragment State | Ⅱ |
| Technics | Physically Tempered |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Jgs1, Jgs2, Jgs3 Quartz Glass |
| Glass Thickness | 1.0mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | No |
| Minimum Order Quantity | 100PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, PSP game console cover, etc.) |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | High quality custom silk screen color tempered glass special optical glass |
|---|---|
| Material | JGS1, JGS2, JGS3 Quartz glass |
| Color | Clear |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 1mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | Lighting equipment, chemical equipment and instruments |
| Diameter | 5mm-1500mm |
|---|---|
| Thickness | 0.8mm-100mm |
| Length | 10mm-800mm |
|---|---|
| Width | 10mm-600mm |
| Thickness | 0.5mm-100mm |
What to specify when you request a quote
- Glass type and thickness — listed as “0.5-19mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “0.5-19mm”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Building, Furniture, Home Appliance, Electronics & Instruments”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>91%”; give transmission, haze or gloss targets for the viewing area.
