Product type: Plano-Convex Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-LH250#.
Overview

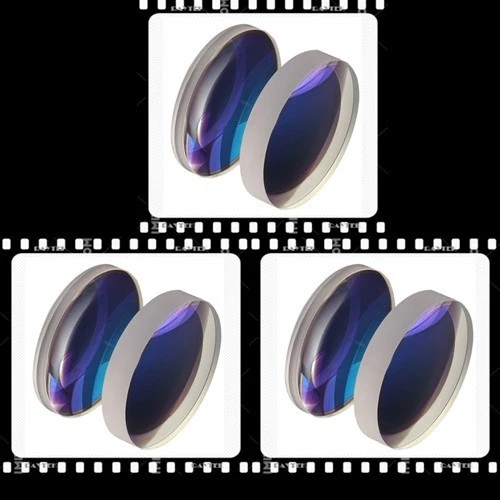

The High-Quality Fused Silica Plano-Convex Lens for Perfect Clarity is supplied as an optical lens in Optical Glass (Optical Glass, UV Fused Silica Substrate substrate). Listed geometry: single-lens shape. Optical / electrical data: wavelength 430-700 Nm or Custom Manufacturing, transmittance >95%. Coating: Visible Multilayer; surface quality 20-10 Scratch-Dig or Custom; flatness Lambda/8. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass, UV Fused Silica Substrate |
| Type | Plano-Convex Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Visible Multilayer |
| Surface Quality | 20-10 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-LH250# |
| Lenses Color | Clear |
| Ar Coating Wavelength | 430-700 Nm or Custom Manufacturing |
| Coating Type | Visible Multilayer |
| Surface Flatness | Lambda/8 |
| Products Name | Visible Antireflection Coated UV Fused Silica Plano-Convex Lenses |
| Alias | Visible Coated UV Fused Silica Plano-Convex Lenses, Visible UV Fused Silica Plano-convex lens, VIS UV fused silica plan-convex lens, Visible UV fused silica lens, etc |
| Lens Substrates | UV fused silica substrate for UV region, laser line and wide band applications |
| Applying Fields I | Laser electrooptic focusing |
| Applying Fields II | Collimating laser beam for laser equipment |
| Appling Fields III | Other |
| Main Optical Tech Specification | Lens Shape |
| Main Physical Size Specification | Products Code |
| Other Available Lens Substrates | UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18 |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Applying Fields I: | Laser electrooptic focusing |
|---|---|
| Applying Fields II: | Collimating laser beam for laser equipment Collimating the optical fiber output |
| Appling Fields III: | Other |
| Lens Shape | Plano-Convex | Surface AccuracyIrregularity | λ/8 |
| Lens Material | UV Fused Silica | Surface Accuracy, Power | 1.5 λ |
| Antireflection Coating | 430-700 nm | Chamfers | 0-0.8 mm face width |
| Coating Type | Visible Multilayer | Chamfers Angle/Tolerance | 45° ±15°, typical |
| Coating Code | AR.14 | Focal LengthTolerance | ±1 % |
| Damage Threshold | 7.5 J/cm2, 10 ns pulses, 10 Hz at 532 nm | Diameter Tolerance | +0/-0.1 mm |
| Surface Quality | 20-10 scratch-dig | Clear Aperture | ≥central 90% ofdiameter |
| Surface Flatness | λ/8 | OEM/ODM | Accepted |
| Products Code | Diameters | EFL | AR.film Wavelength |
| RT01030901 | 6.35mm | 12.7mm | 430-700 nm |
| RT01030902 | 12.7mm | 16.0mm | 430-700 nm |
| RT01030903 | 12.7mm | 19.0mm | 430-700 nm |
| RT01030904 | 12.7mm | 25.4mm | 430-700 nm |
| RT01030905 | 12.7mm | 38.1mm | 430-700 nm |
| RT01030906 | 12.7mm | 50.2mm | 430-700 nm |
| RT01030907 | 12.7mm | 75.6mm | 430-700 nm |
| RT01030908 | 12.7mm | 25.4mm | 430-700 nm |
| RT01030909 | 25.4mm | 33.0mm | 430-700 nm |
| RT010309010 | 25.4mm | 38.1mm | 430-700 nm |
| RT010309011 | 25.4mm | 50.2mm | 430-700 nm |
| RT010309012 | 25.4mm | 62.9mm | 430-700 nm |
| RT010309013 | 25.4mm | 75.6mm | 430-700 nm |
| RT010309014 | 25.4mm | 88.3mm | 430-700 nm |
| RT010309015 | 25.4mm | 100mm | 430-700 nm |
| RT010309016 | 25.4mm | 125mm | 430-700 nm |
| RT010309017 | 25.4mm | 150mm | 430-700 nm |
| RT010309018 | 25.4mm | 175mm | 430-700 nm |
| RT010309019 | 25.4mm | 200mm | 430-700 nm |
| RT010309020 | 25.4mm | 350mm | 430-700 nm |
| RT010309021 | 25.4mm | 500mm | 430-700 nm |
| RT010309022 | 25.4mm | 750mm | 430-700 nm |
| RT010309023 | 25.4mm | 1000mm | 430-700 nm |
| RT010309024 | 50.8mm | 75.6mm | 430-700 nm |
| RT010309025 | 50.8mm | 100mm | 430-700 nm |
| RT010309026 | 50.8mm | 150mm | 430-700 nm |
| RT010309027 | 50.8mm | 200mm | 430-700 nm |
| RT010309028 | 50.8mm | 250mm | 430-700 nm |
| RT010309029 | 50.8mm | 300mm | 430-700 nm |
| RT010309030 | 50.8mm | 500mm | 430-700 nm |
| Custom | Custom | Custom |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Products Code”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Visible Multilayer”; list the band and reflectance or transmission target.
