Model: 2513. Function: Cutting and Splitting.
Overview

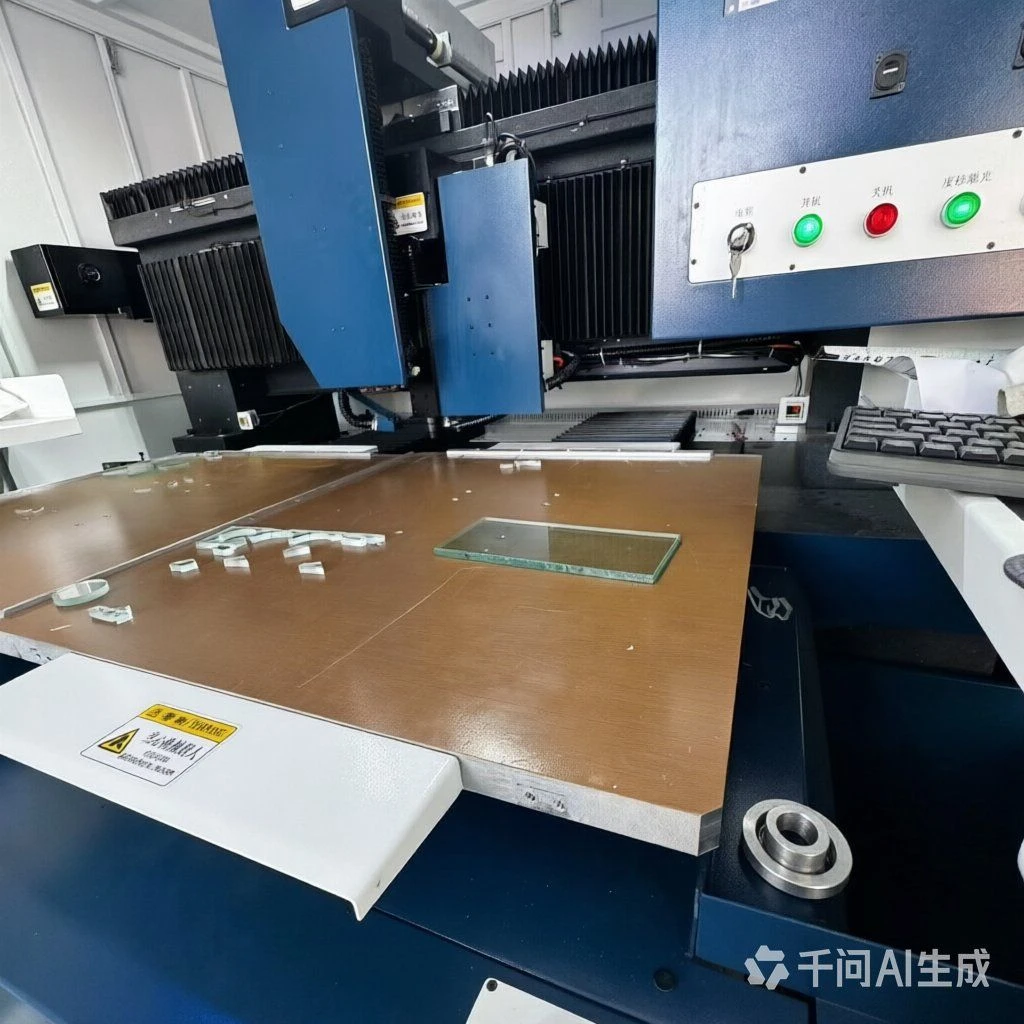

High Quality Glass Laser Cutting Machnie Laser Glass Drilling Machnie is a drilled / perforated glass plate. Listed geometry: thickness 0.5mm-19mm. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Cutting Method | Laser Cutting |
|---|---|
| Maximum Cutting Thickness | 19mm |
| Safety Features | Emergency Stop Button, Overload Protection, Safety Sensor |
| Model NO. | 2513 |
| Glass Thickness | 0.5mm-19mm |
| Cooling Type | Water Cooling |
| Power | 30-150W |
| Laser Type | Picosecond |
| Function | Cutting and Splitting |
| Supplier | Shijiazhuang Ouyun Machinery Equipment Co., Ltd. |
Technical data
| Origin | Hebei |
|---|---|
| Brand | OUYUN |
| Product model | 6070 |
| Laser type | Picosecond |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — listed as “19mm”; give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
Engineering guides for this part
For material grades and coating options, see High-Purity Quartz Glass for Custom Machined Parts: Material & Coating Guide. How parts like this are machined and finished is covered in Custom Perforated Quartz Plate Processing: A Precision Manufacturing Guide. For an application example, read Laser Cut Glass Covers for Appliance LED Packaging: A Buyer’s Guide. Before sending a drawing, check Precision Glass Machining Tolerances & Specifications: A B2B Guide. A related standard product is Custom Perforated Quartz Plates.
