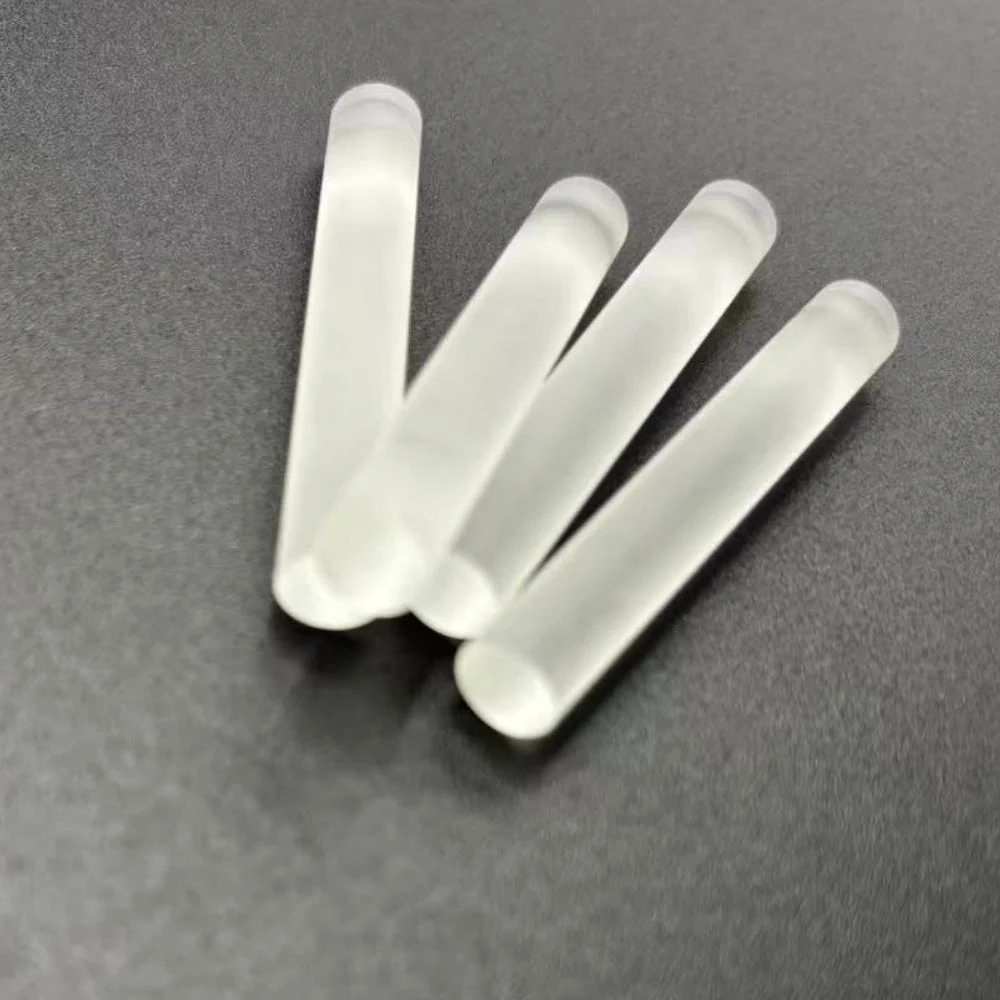

Product type: Rod Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0160.
Overview
High-Quality K9/Bk7 Optical Rod Lens with Anti-Reflective Coating is an optical lens in Optical Glass (Bk7, Quartz, Infrared, Sapphire,Si, Znse, Caf substrate). Listed geometry: diameter 1.5-300mm, size Custom, cylindrical shaped lens shape. Optical / electrical data: transmittance >95%. Coating: Custom as Per Demand. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Bk7, Quartz, Infrared, Sapphire,Si, Znse, Caf |
| Type | Rod Lens |
| Shape | Cylindrical Shaped Lens |
| Diameter | 1.5-300mm |
| Size | Custom |
| Transmittance | >95% |
| Coating | Custom as Per Demand |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0160 |
| Lenses Color | Clear |
| Product Name | Optical Lens |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Production Name | rod lens |
|---|---|
| Material | optical glass |
| Surface Quality | 40/20 |
| Dimention Tolerance | +/-0.01 |
| inverted side | <0.2*45° |
| Eccentricity | 30second-5second |
| bevel | 0.2*45 degree |
| polished | all surface polished |
| design wavelength | 400nm-1100nm |
| Application | optical equipment |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1.5-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Custom as Per Demand”; list the band and reflectance or transmission target.
